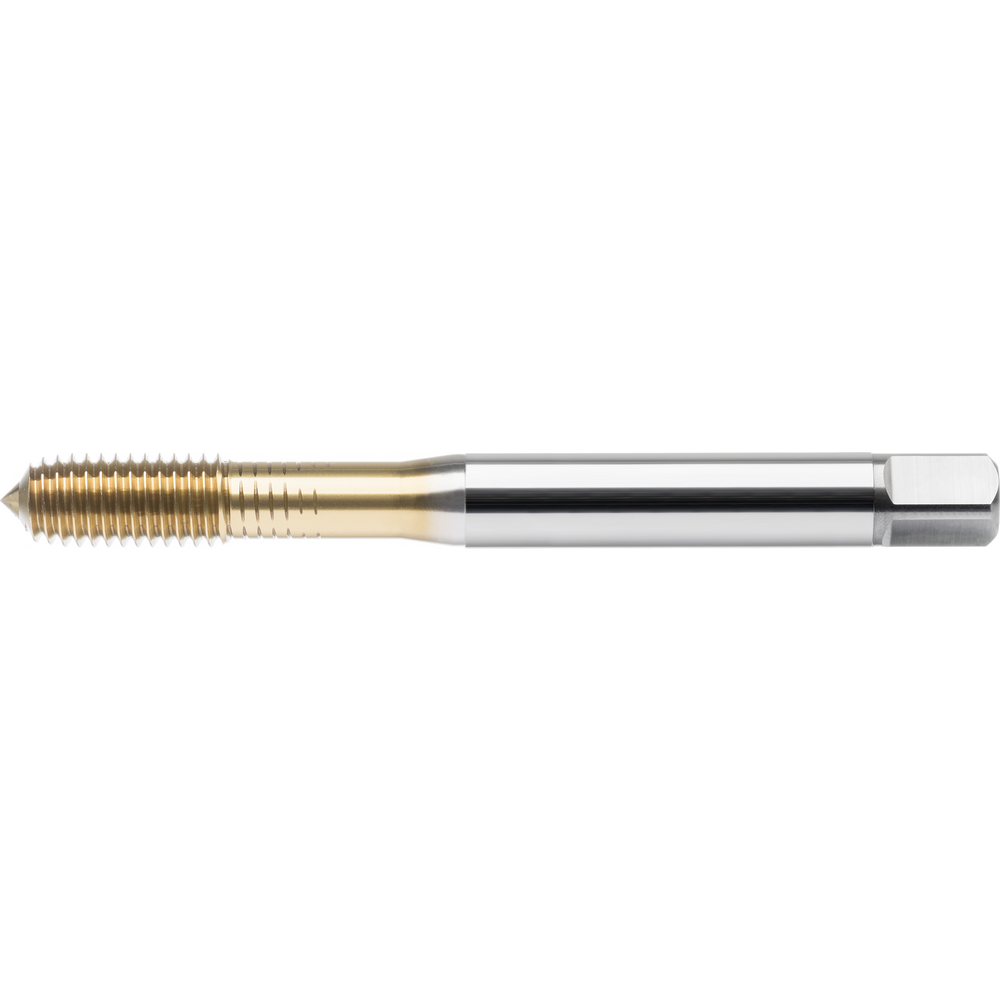

Forming tap HSS-E DIN2174C M1 6HX blind/through-hole TiN

Forming tap HSS-E DIN2174C M1 6HX blind/through-hole TiN
Forming tap HSS-E DIN2174C M1 6HX blind/through-hole TiN Forming tap HSS-E DIN2174C M1 6HX blind/through-hole TiN
Price:
51,20 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Machine forming taps
  • Metric ISO 6HX thread
  • Form C, 2-3 thread chamfer
  • without oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %

Machine forming taps
  • Metric ISO 6HX thread
  • Form C, 2-3 thread chamfer
  • without oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %

Article no./ATORN no.
1354050010 / 10483169
Packaging unit
1
Catalogue page
KS-0280
Cutting values
SW-0398

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating TiN
Coating TiN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 1 mm
D M 1 mm
D1 2,5 mm
D1 2,5 mm
DIN 2174
DIN 2174
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
Gewindeart x Nenndurchmesser M1
L 40 mm
L 40 mm
L1 4 mm
L1 4 mm
L2 - mm
L2 - mm
Max. thread depth 1xD
Max. thread depth 1xD
Nenndurchmesser 1 mm
Passend für Gewinde M1-M20
Pitch 0,25 mm
Pitch 0,25 mm
Tapping hole Ø 0,90 mm
Tapping hole Ø 0,90 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
titanium alloys
titanium alloys

very suitable
suitable
