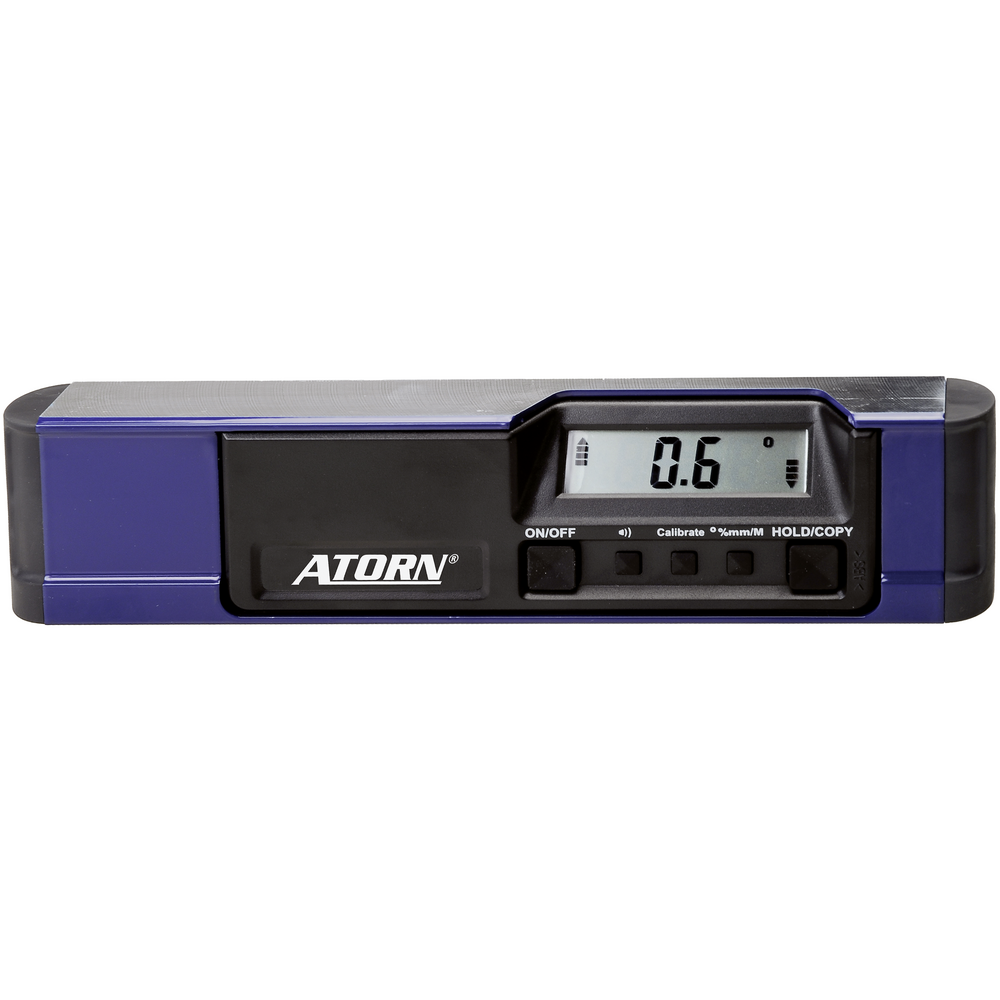

Electronic inclinometer

• Made from thick-walled four-chamber hollow aluminium profile, cross-section 60 x 26 mm, with two milled measuring faces
• Impact-resistant protective ends
• Display can be switched between degrees, percent or millimetres/metre
• HOLD function (measurement value memory)
• Switchable acoustic signal for 0° or 90° position
• Easy to read thanks to high-contrast 16 mm high LCD display
• Arrows in the display indicate the direction in which the device should be moved to reach the 0° or 90° position
• Display flips automatically for overhead readings
• Error margins:
  at 0° to 90° = 0.05°
  at 1° to 89° = 0.2°
• Extremely easy horizontal and vertical adjustment using the integrated measurement computer
• Battery life approx. 300 hours
• Supplied in sturdy plastic tubing with 6LR61 battery, no. 548079 4022

Electronic inclinometer

• Made of thick-walled four-chamber hollow aluminium profile, cross-section 60 x 26 mm, with two milled measuring surfaces
• Impact-resistant protective ends
• Display switchable between degrees, percent or millimetres/metres
• HOLD function (measurement value memory)
• Switchable acoustic signal for the 0° or the 90° position
• Easy to read thanks to high-contrast 16 mm high LCD display
• Arrows in the display indicate the direction in which the device should be moved to reach the 0° or 90° position
• Display switches automatically for overhead readings
• Error margins:
  at 0° and 90° = 0.05°
  at 1° to 89° = 0.2°
• Measurement range 4 x 90°
• Very slight horizontal and vertical adjustment by means of integrated measuring computer
• Battery life approx. 300 hours
• Supplied with battery 6LR61 no. 548079 4022, in stable plastic pipe
