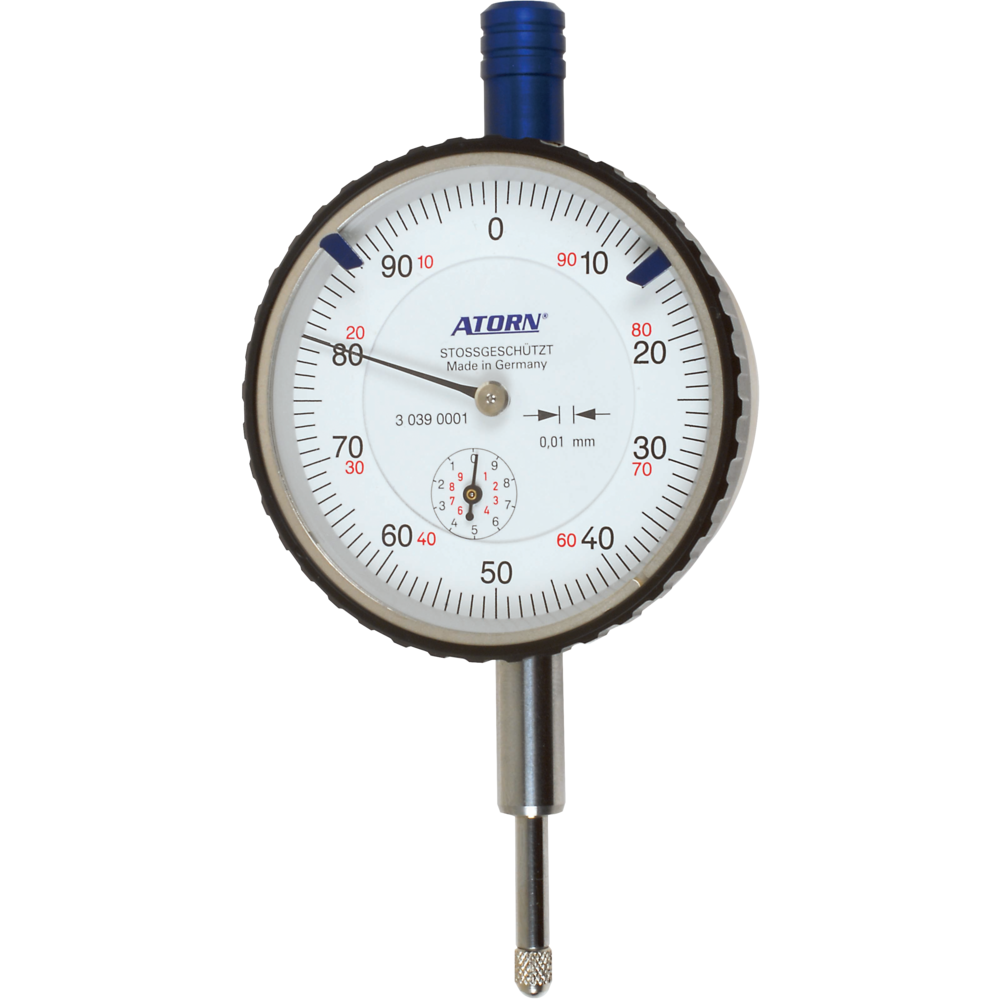

Dial indicator 10mm (0,01mm) outer ring 58mm, shock-proof

Dial indicator 10mm (0,01mm) outer ring 58mm, shock-proof
Dial indicator 10mm (0,01mm) outer ring 58mm, shock-proof
Sale price
39,00 €
(53,50 € catalogue price / 27% saved)
valid until: 31.07.2025
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Add service

*
*
Dial indicators with ceramic probe balls, shock-resistant
  • Measuring force max. 1.3 N
  • Non-magnetic and non-conductive measuring insert
  • Dimensions in accordance with DIN EN ISO 463 Issue 6/2006
  • Metal housing
  • With shock protection
  • Rotatable metal outer ring for zeroing
  • Two adjustable inner tolerance marks
  • Probe tip thread: M2.5
  • Clamping shank Ø: 8 mm
  • Supplied in a case

Standard version
Dial indicators with ceramic probe balls, shock-resistant
  • Measuring force max. 1.3 N
  • Non-magnetic and non-conductive measuring insert
  • Dimensions in accordance with DIN EN ISO 463 Issue 6/2006
  • Metal housing
  • With shock protection
  • Rotatable metal outer ring for zeroing
  • Two adjustable inner tolerance marks
  • Probe tip thread: M2.5
  • Clamping shank Ø: 8 mm
  • Supplied in a case

Standard version
Article no./ATORN no.
5110060010 / 30390001
Packaging unit
1
Catalogue page
KS-1406

Technical characteristics

Digit increment 0,01 mm
Digit increment 0,01 mm
DIN 878
DIN 878
Display Analogue
External Ø 58 mm
Kalibriergruppe CE
Max. length measuring range 10 mm
Max. length measuring range 10 mm
Measurement travel of one pointer revolution 1 mm
Measurement travel of one pointer revolution 1 mm
Messbereich Länge 10 mm
Messkraft 1,0 N
model Umdrehungszähler rund
model Revolution counting device round
Outer diameter 58 mm
Scale value 0,01 mm
Schaftdurchmesser 8 mm
Schaftlänge 22 mm
Typ DIAL TEST INDIC. 312-2
