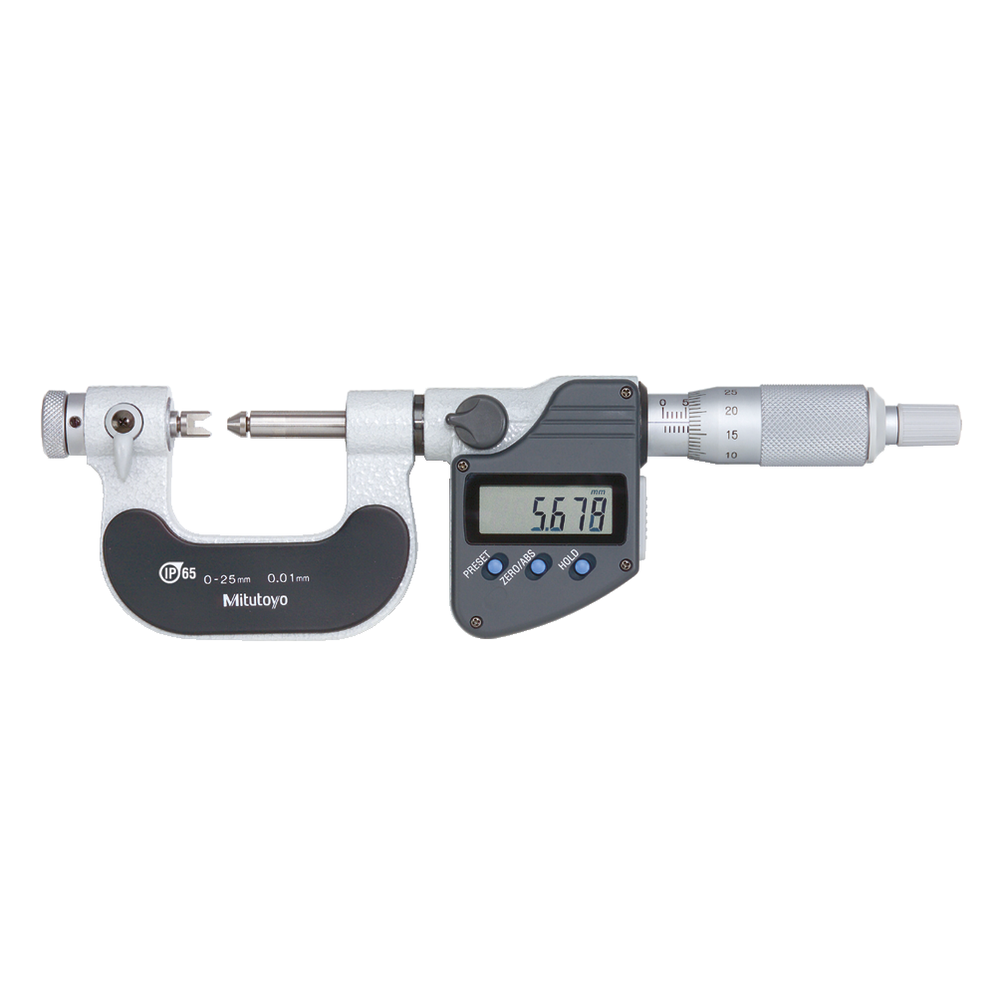

Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts

Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts
Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts
Price:
850,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Digital
  • LCD display with 7.5 mm high digits
  • 0.001 mm readings
  • Automatic switch-off, battery check
  • Supplied with SR44 battery (no. 500534 0001) and adjustment key, versions over 25 mm include 60° setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Digital
  • LCD display with 7.5 mm high digits
  • 0.001 mm readings
  • Automatic switch-off, battery check
  • Supplied with SR44 battery (no. 500534 0001) and adjustment key, versions over 25 mm include 60° setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Article no./ATORN no.
5036151025
Vendor Article no.
326-251-30
Packaging unit
1
Catalogue page
KS-1376

Technical characteristics

A 25 mm
Data transmission type DIGIMATIC/USB
Depth 25 mm
Digit increment 0,001 mm
DIN 863/3
Display Digital
Included in delivery Sturdy box
Measurement chuck Spindle pitch 0.5 mm
Measurement range 0-25 mm
Measurement range 0-25 mm
Measuring spindle increments 0,5 mm
Output data format Digimatic
Packaging / Shipment Sturdy box
Protection type IP 65
Protection type IP 65
Reading 0.001 mm readings
Standard constructional dimensions DIN DIN 863/3
