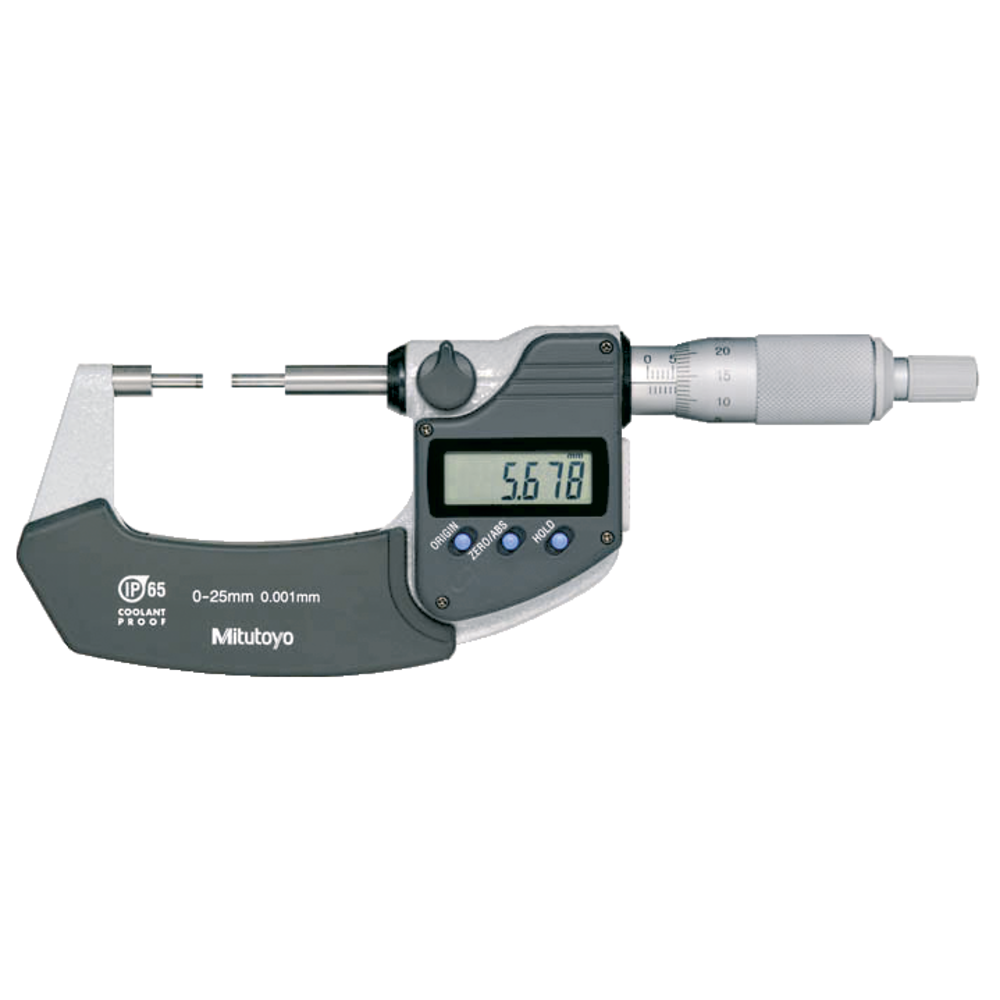

Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm

Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm
Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm Digital outside micrometer 0-25mm D3 (0,001mm) IP65, measuring faces 10x3mm
Price:
791,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Special-purpose digital outside micrometers IP65
  • Steel clamp, with ratchet and lock lever
  • LCD display with 7.5 mm high digits
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD)
  • Supplied in a case with adjustment key and SR44 battery (no. 500534 0001); versions over 25 mm include setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m), USB cable type B-USB, no. 563110 0002

Type D3, offset measuring faces
  • For measuring grooves, spline shafts, recesses and fittings

Article no./ATORN no.
5036010001
Vendor Article no.
331-251-30
Packaging unit
1
Catalogue page

Technical characteristics

D 3 mm
Data transmission type DIGIMATIC/USB
Digit increment 0,001 mm
DIN 863/3
Display Digital
Error limit 0,002 mm
Included in delivery Sturdy box
L 10 mm
Measurement range 0-25 mm
Measuring spindle increments 0,5 mm
Protection type IP 65
Catalogue page Download
