Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt

Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt
Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt Bügelmessschraube digital Form D1 Typ A 0-25mm (0,001mm) IP65 Amboss gewölbt
Price:
635,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*

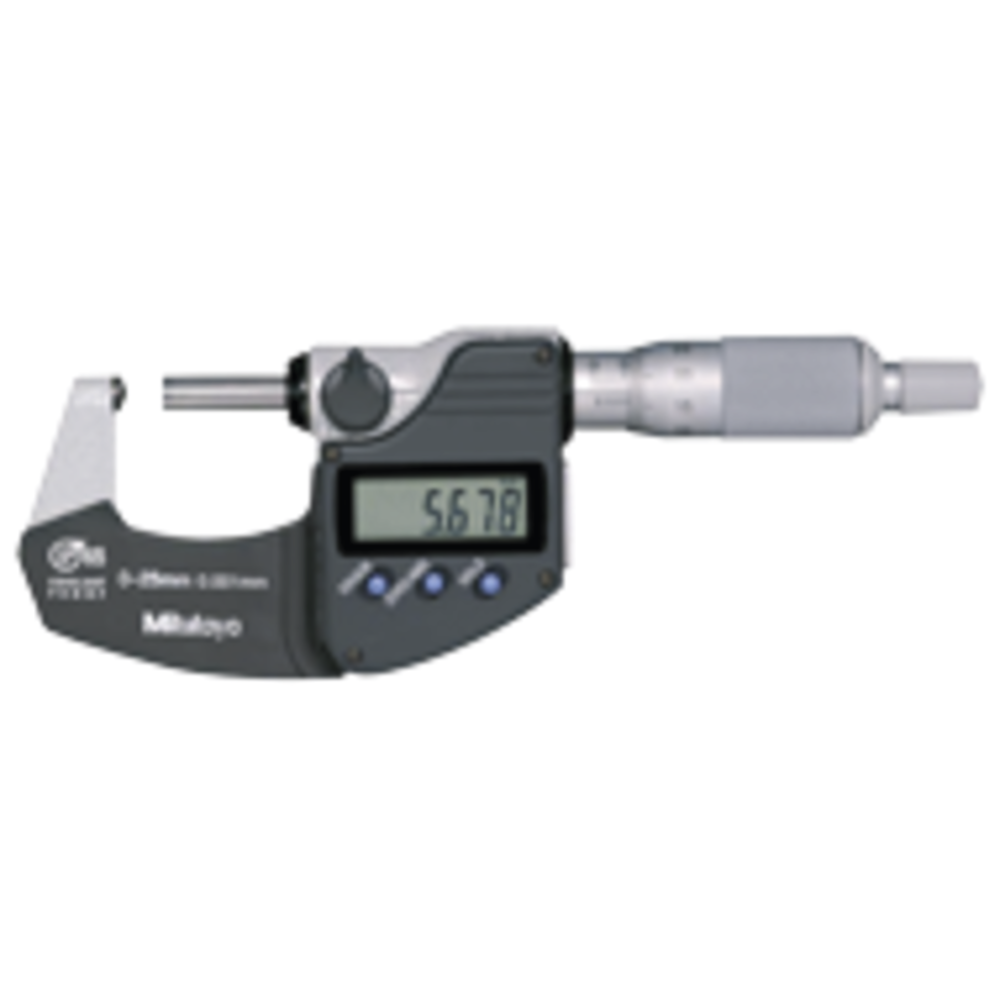

Special-purpose digital outside micrometers IP65
  • Steel clamp, with ratchet and lock lever
  • LCD display with 7.5 mm high digits
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD)
  • Supplied in a case with adjustment key and SR44 battery (no. 500534 0001); versions over 25 mm include setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m), USB cable type B-USB, no. 563110 0002

Type D1, curved measuring faces, R4
  • e.g. for measuring wall thicknesses

Article no./ATORN no.
5036090001
Vendor Article no.
395-251-30
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type DIGIMATIC/USB
Designation Amboss gewölbt R4
Digit increment 0,001 mm
DIN 863/3
Display Digital
Error limit 0,002 mm
Included in delivery Sturdy box
Internal diameter 15
Measurement range 0-25 mm
Measuring force 5-10 N
Measuring spindle increments 0,5 mm
Protection type IP 65
