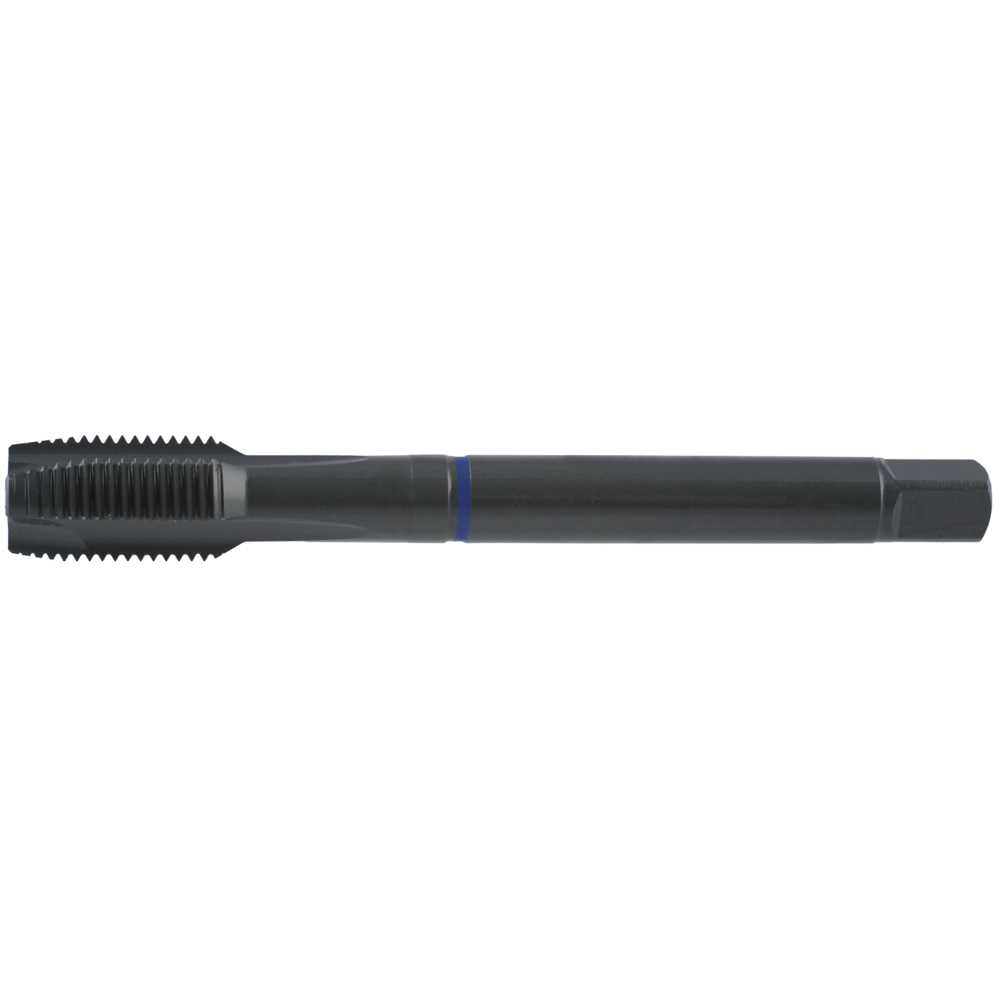

Machine tap HSS-E DIN374B UNF 1/4"-28 through-hole

Machine tap HSS-E DIN374B UNF 1/4"-28 through-hole
Machine tap HSS-E DIN374B UNF 1/4"-28 through-hole Machine tap HSS-E DIN374B UNF 1/4"-28 through-hole
Price:
33,70 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Machine tap
  • UNF, unified national standard fine-pitch thread
  • Straight-fluted with spiral point
  • Tolerance: 2B
  • Type B, 3.5-5 thread chamfer
  • Constructional dimensions DIN 374
  • Cutting material: HSS-E, vapour-treated
  • For through-hole threads
  • Suitable for conventional machining with quick-action chuck
  • Possible thread depth 3 x D

Machine tap
  • UNF, unified national standard fine-pitch thread
  • Straight-fluted with spiral point
  • Tolerance: 2B
  • Type B, 3.5-5 thread chamfer
  • Constructional dimensions DIN 374
  • Cutting material: HSS-E, vapour-treated
  • For through-hole threads
  • Suitable for conventional machining with quick-action chuck
  • Possible thread depth 3 x D

Article no./ATORN no.
1353350001 / 10482373
Packaging unit
1
Catalogue page

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D 1/4"
D 1/4"
D1 4,5 mm
D1 4,5 mm
DIN 374
DIN 374
Form/Chamfer B
Form/Chamfer B
L 80 mm
L 80 mm
L1 16 mm
L1 16 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 28 TPI
Pitch 28 TPI
Surface Vaporised
Surface Vaporised
Tapping hole Ø 5,50 mm
Tapping hole Ø 5,50 mm
Thread UNF
Thread UNF
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps 2B
Tolerance of screw taps 2B
Twist angle 0°
Twist angle 0°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
