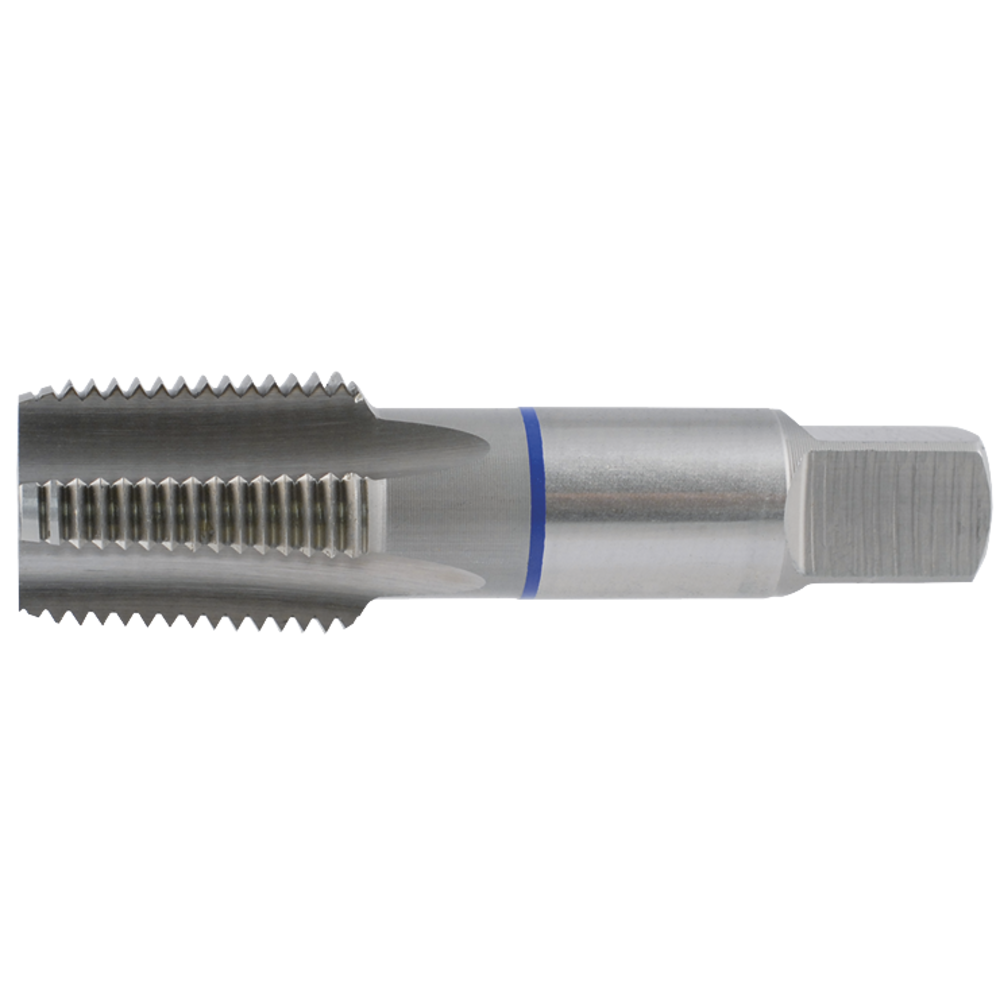

Machine tap HSS-E WN type C, NPT 1/16" blind/through-hole

Machine tap HSS-E WN type C, NPT 1/16" blind/through-hole
Machine tap HSS-E WN type C, NPT 1/16" blind/through-hole Machine tap HSS-E WN type C, NPT 1/16" blind/through-hole
Price:
57,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Machine tap
  • American national standard tapered pipe thread, NPT 60°
  • Straight-fluted
  • Form C, 2 to 3-thread chamfer
  • Cutting material: HSS-E
  • for blind bore and through-hole threads
  • Possible thread depth 1.5xD
  • Taper reamer suitable for conical tapping holes (taper 1:16) available on request

Machine tap
  • American national standard tapered pipe thread, NPT 60°
  • Straight-fluted
  • Form C, 2 to 3-thread chamfer
  • Cutting material: HSS-E
  • for blind bore and through-hole threads
  • Possible thread depth 1.5xD
  • Taper reamer suitable for conical tapping holes (taper 1:16) available on request

Article no./ATORN no.
1353450001 / 10482389
Packaging unit
1
Catalogue page
KS-0279
Cutting values
SW-0398

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D NPT 1/16"
D NPT 1/16"
D1 6 mm
D1 6 mm
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 14 mm
L1 14 mm
Max. thread depth 1xD
Max. thread depth 1xD
Pitch 27 Gang/Zoll
Pitch 27 Gang/Zoll
Surface Uncoated
Surface Uncoated
Tapping hole Ø 6,10 mm
Tapping hole Ø 6,10 mm
Thread NPT
Thread NPT
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
