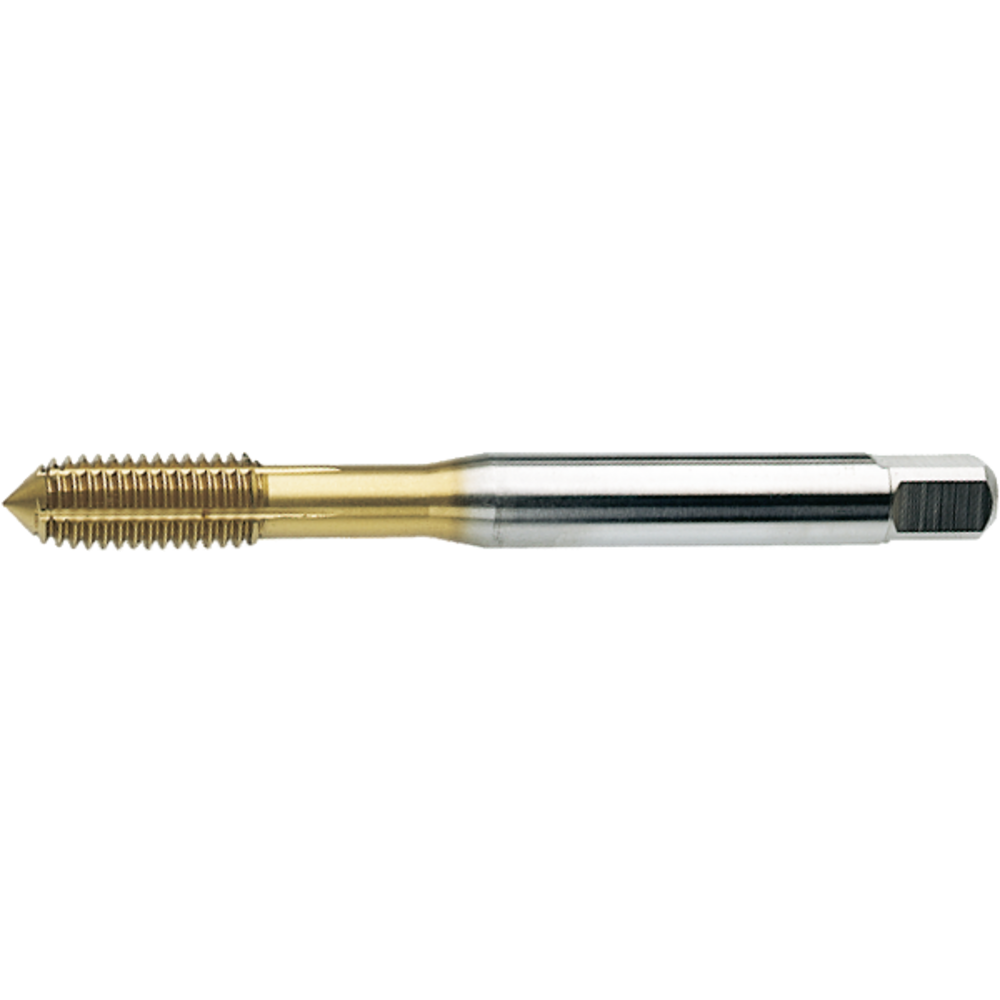

Forming tap HSS-E DIN2174C M3 6HX blind/through-hole TiN

Forming tap HSS-E DIN2174C M3 6HX blind/through-hole TiN
Forming tap HSS-E DIN2174C M3 6HX blind/through-hole TiN Forming tap HSS-E DIN2174C M3 6HX blind/through-hole TiN
Sale price
23,30 €
(35,90 € catalogue price / 35% saved)
valid until: 01.03.2026
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
With oil grooves

Machine forming taps
  • ISO 6HX metric thread
  • Type C, 2-3 thread chamfer
  • With oil grooves
  • Constructional dimensions DIN 2174
  • Cutting material: HSS-E TiN; HSS-E TiAlN
  • For blind-hole and through-hole threads
  • For materials with good cold-forming properties and a min. expansion of 8 %
  • Possible thread depth 3 x D

Article no./ATORN no.
1352400030 / 10471073
Packaging unit
1
Catalogue page
KS-0282
Cutting values
KS-0282

Technical characteristics

C 2,7 mm
Coating TiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 3 mm
D1 3,5 mm
Design TiN
DIN 2174
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Gewindeart x Nenndurchmesser M3
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 3xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M16
Pitch 0,5 mm
Tapping hole Ø 2,75 mm
Thread M
Thread angle 60 °
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
