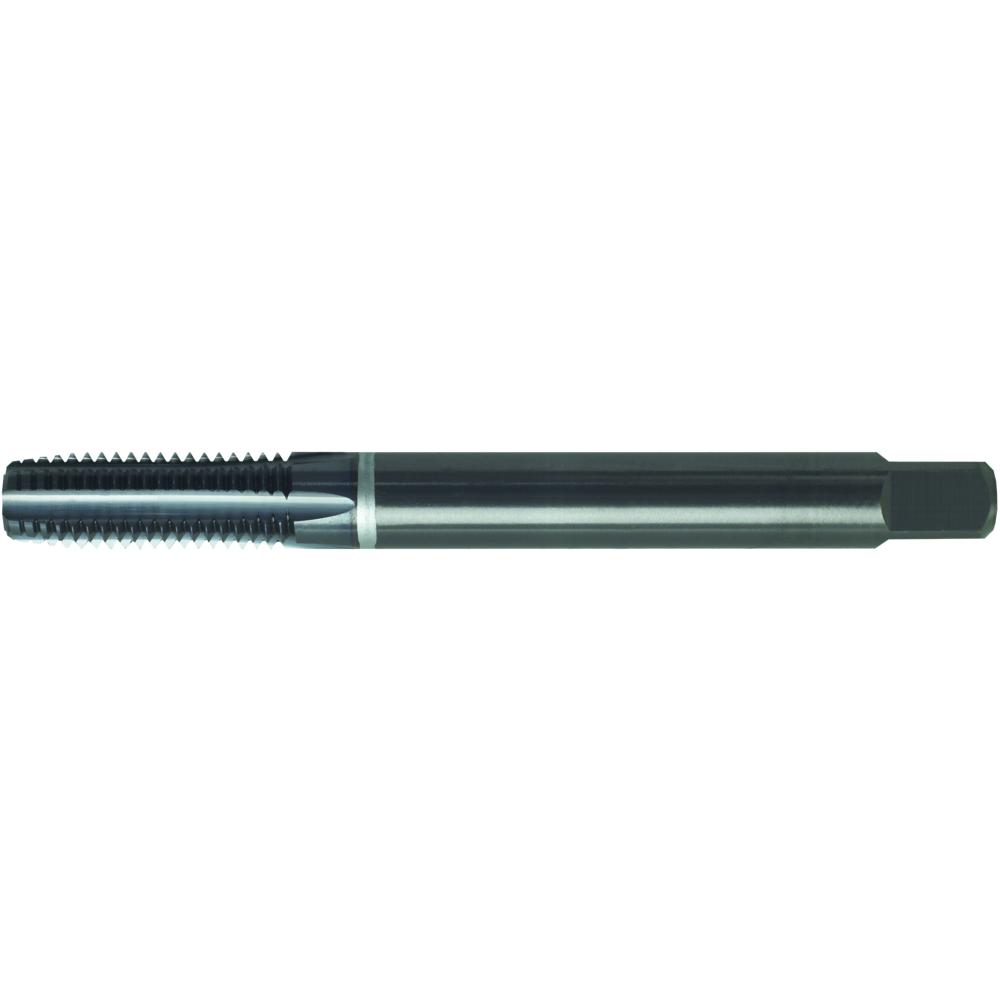

Solid carbide machine tap DIN371C M3 blind/through-hole TiCN

Solid carbide machine tap DIN371C M3 blind/through-hole TiCN
Solid carbide machine tap DIN371C M3 blind/through-hole TiCN Solid carbide machine tap DIN371C M3 blind/through-hole TiCN
Price:
170,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hard machining = 60 HRC

Machine tap
  • ISO 6H metric thread
  • Type D, 3.5 to 5-thread chamfer, for blind bore and through-hole threads
  • Similar to DIN 371
  • Cutting material: superfine grain solid carbide, TiCN-coated
  • Possible thread depth 1.5xD

Hard machining ≥ 60 HRC

Machine tap
  • ISO 6H metric thread
  • Type D, 3.5 to 5-thread chamfer, for blind bore and through-hole threads
  • Similar to DIN 371
  • Cutting material: superfine grain solid carbide, TiCN-coated
  • Possible thread depth 1.5xD

Article no./ATORN no.
1351700030 / 10473234
Packaging unit
1
Catalogue page
KS-0251
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
Cutting material Solid carbide
D M3
D M3
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 1
Form/Chamfer D
Form/Chamfer D
L 56 mm
L 56 mm
L1 12 mm
L1 12 mm
L2 18 mm
L2 18 mm
Max. thread depth 1,5xD
Max. thread depth 1,5xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M12
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,6 mm
Tapping hole Ø 2,6 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 1.5xD
Threaded hole type Clearance/blind hole ≤ 1.5xD
Tolerance of screw taps ISO 2X (6HX)
Tolerance of screw taps ISO 2X (6HX)
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Typ H MAX Control

Usage characteristics

hardened steel < 60 HRc
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
hardened steel ≤ 65 HRC

very suitable
suitable
