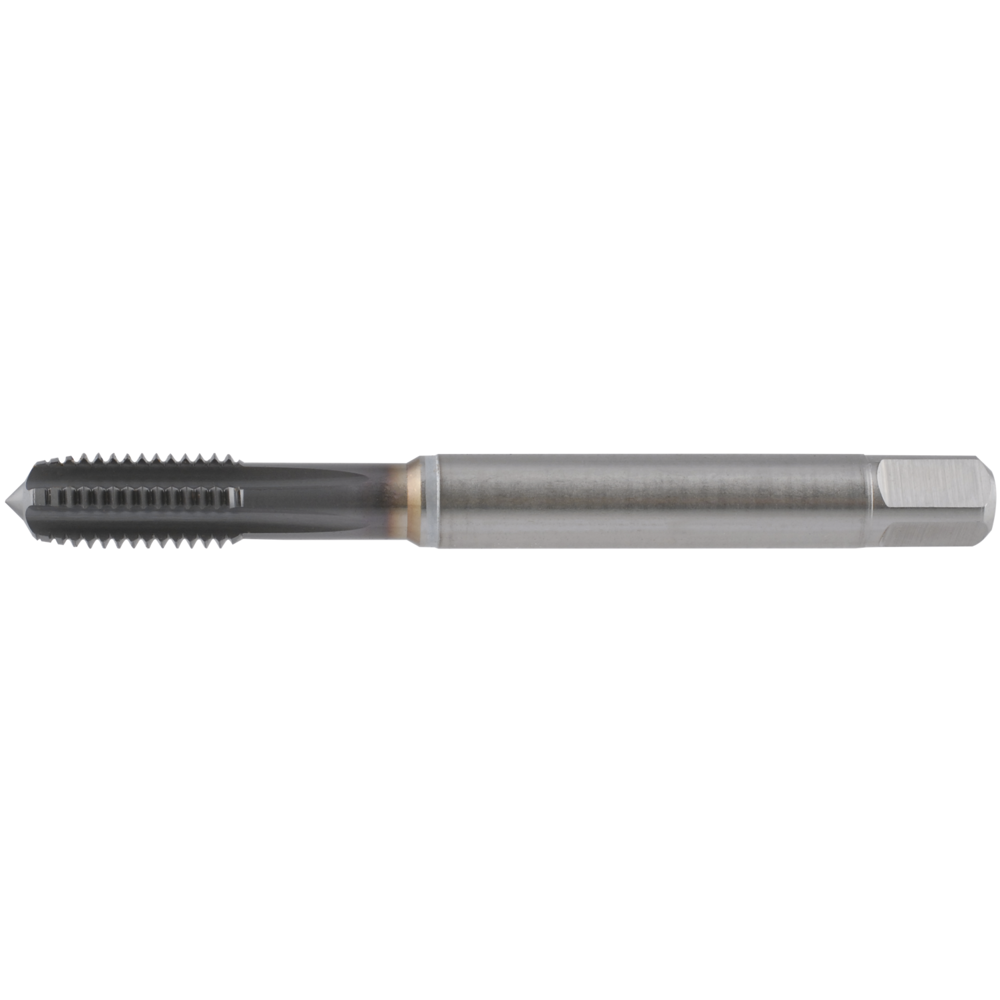

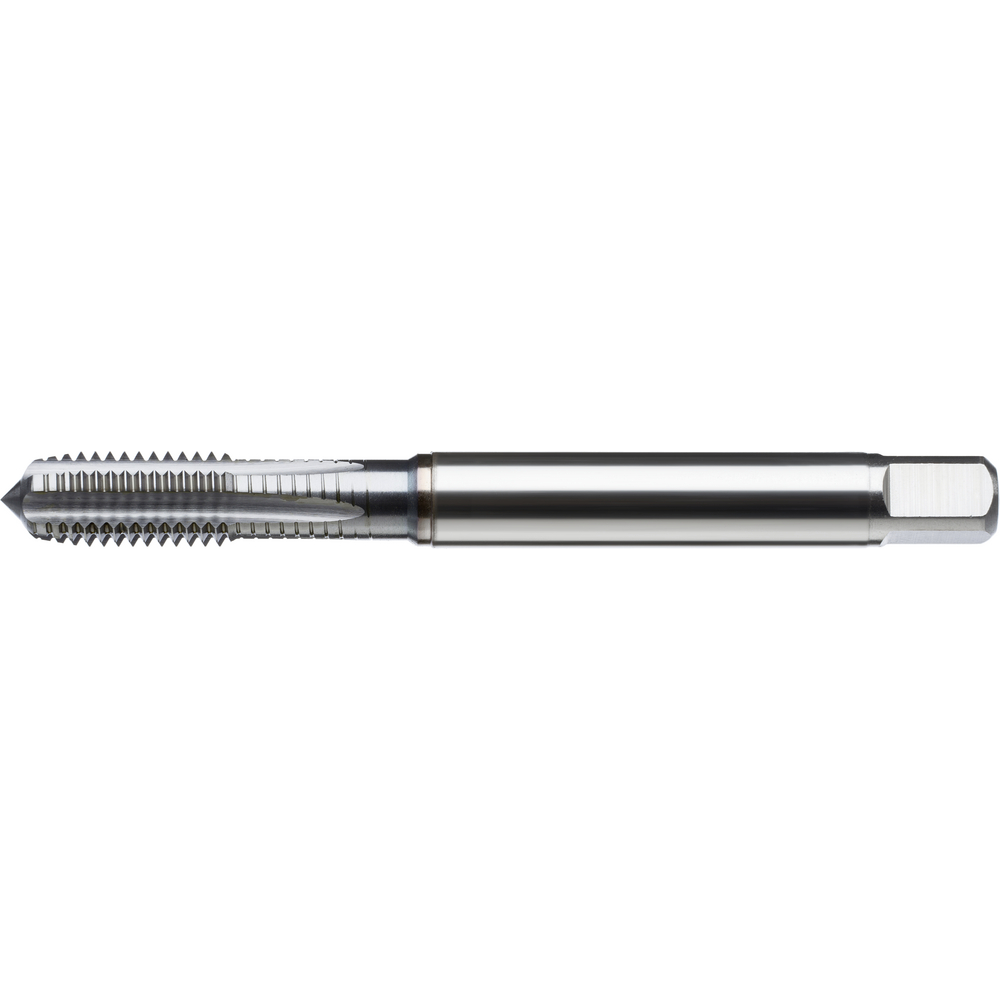

Machine tap HSS-E PM DIN371A M3 blind/through-hole TiAlN

Machine tap HSS-E PM DIN371A M3 blind/through-hole TiAlN
Machine tap HSS-E PM DIN371A M3 blind/through-hole TiAlN Machine tap HSS-E PM DIN371A M3 blind/through-hole TiAlN
Price:
74,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hard machining < 55 HRC

Machine tap
  • ISO 6HX metric thread
  • Type D, 3.5 to 5-thread chamfer, for blind bore and through-hole threads
  • Similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Possible thread depth 1.5xD

Hard machining < 55 HRC

Machine tap
  • ISO 6HX metric thread
  • Type D, 3.5 to 5-thread chamfer, for blind bore and through-hole threads
  • Similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E-PM, TiCN-coated
  • Possible thread depth 1.5xD

Article no./ATORN no.
1351650030 / 10482205
Packaging unit
1
Catalogue page
KS-0251
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
Cutting material HSSE-PM
D M3
D M3
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer D
Form/Chamfer D
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
L2 18 mm
L2 18 mm
Max. thread depth 1,5xD
Max. thread depth 1,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 1.5xD
Threaded hole type Clearance/blind hole ≤ 1.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°

Usage characteristics

hardened steel ≤ 55 HRC
hardened steel ≤ 55 HRC

very suitable
suitable
