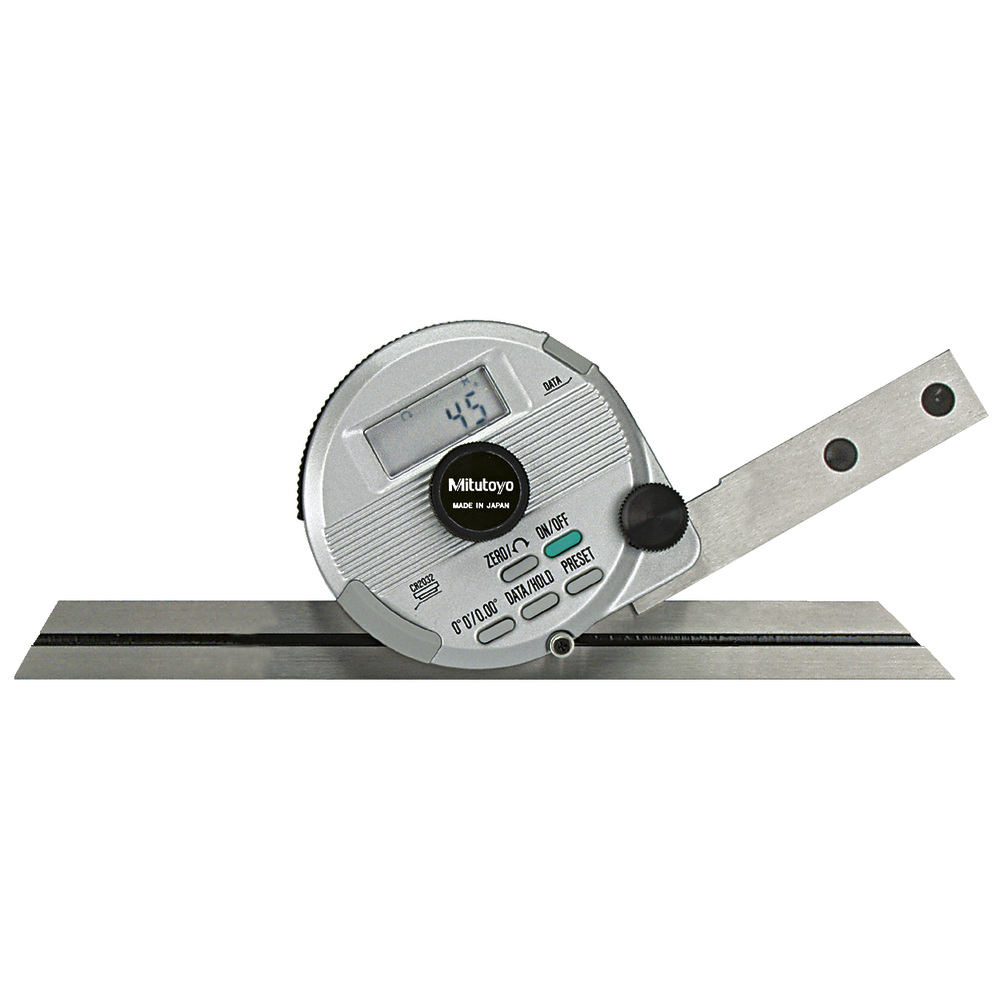

Universal protractor 150mm (scale division value 1'=0,01°) digital -360°- +360°

Universal protractor 150mm (scale division value 1'=0,01°) digital -360°- +360°
Universal protractor 150mm (scale division value 1'=0,01°) digital -360°- +360°
Price:
925,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*
Universal goniometer DIGIMATIC
  • Digital display in degrees or minutes, zeroing in any position
  • Hardened stainless steel measuring bar and measuring edges
  • Automatic switch-off after 10 minutes of inactivity
  • Simple adjustment using fixed reference points
  • Fully movable and lockable measuring bar
  • Fine adjustment for precisely calibrating angles
  • Ability to pre-set angles
  • Can be combined with height meters using the holder provided
  • Battery life up to 2,000 hours
  • Functions: ON/OFF, PRESET for pre-setting user-defined angles, DATA/HOLD, switch from decimal to degrees and minutes, ZERO for user-defined zeroing, reverse counting direction
  • Supplied with height meter holder and CR2032 battery, no. 548079 6032
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Universal goniometer DIGIMATIC
  • Digital display in degrees or minutes, zeroing in any position
  • Hardened stainless steel measuring bar and measuring edges
  • Automatic switch-off after 10 minutes of inactivity
  • Simple adjustment using fixed reference points
  • Fully movable and lockable measuring bar
  • Fine adjustment for precisely calibrating angles
  • Ability to pre-set angles
  • Can be combined with height meters using the holder provided
  • Battery life up to 2,000 hours
  • Functions: ON/OFF, PRESET for pre-setting user-defined angles, DATA/HOLD, switch from decimal to degrees and minutes, ZERO for user-defined zeroing, reverse counting direction
  • Supplied with height meter holder and CR2032 battery, no. 548079 6032
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m), USB cable type F-USB, no. 563110 0006

Article no./ATORN no.
5430010150
Vendor Article no.
187-501
Packaging unit
1
Catalogue page
KS-1451

Technical characteristics

Data transmission type DIGIMATIC/USB
Error limit ± 2 min. mm
Error limit ± 2 min. mm
Included in delivery Sturdy box
Max. angle scale -360° bis +360°
Measurement range -360° to +360° mm
Output data format Digimatic
Packaging / Shipment Sturdy box
Rail length 150 mm mm
Rail length 150 mm mm
Repetition precision 1 min. µm
Repetition precision 1 min. µm
Standard constructional dimensions DIN Non-DIN
