Parallelendmaß-Satz für Messschieber bis 200mm Gen.1 Stahl (VDI 2618)

Parallelendmaß-Satz für Messschieber bis 200mm Gen.1 Stahl (VDI 2618)
Parallelendmaß-Satz für Messschieber bis 200mm Gen.1 Stahl (VDI 2618)
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Tool Finder

Add service

Gauge block set for monitoring testing equipment
  • For monitoring test equipment
  • For testing pocket callipers of up to 200 mm
  • Test equipment directive VDI/VDE/DGQ 2618, Part 9.1
  • Steel gauge blocks for external measurements
  • Ring gauges for internal measurements
  • Calibration B: 5-point measurement, calibration C: 1-point measurement

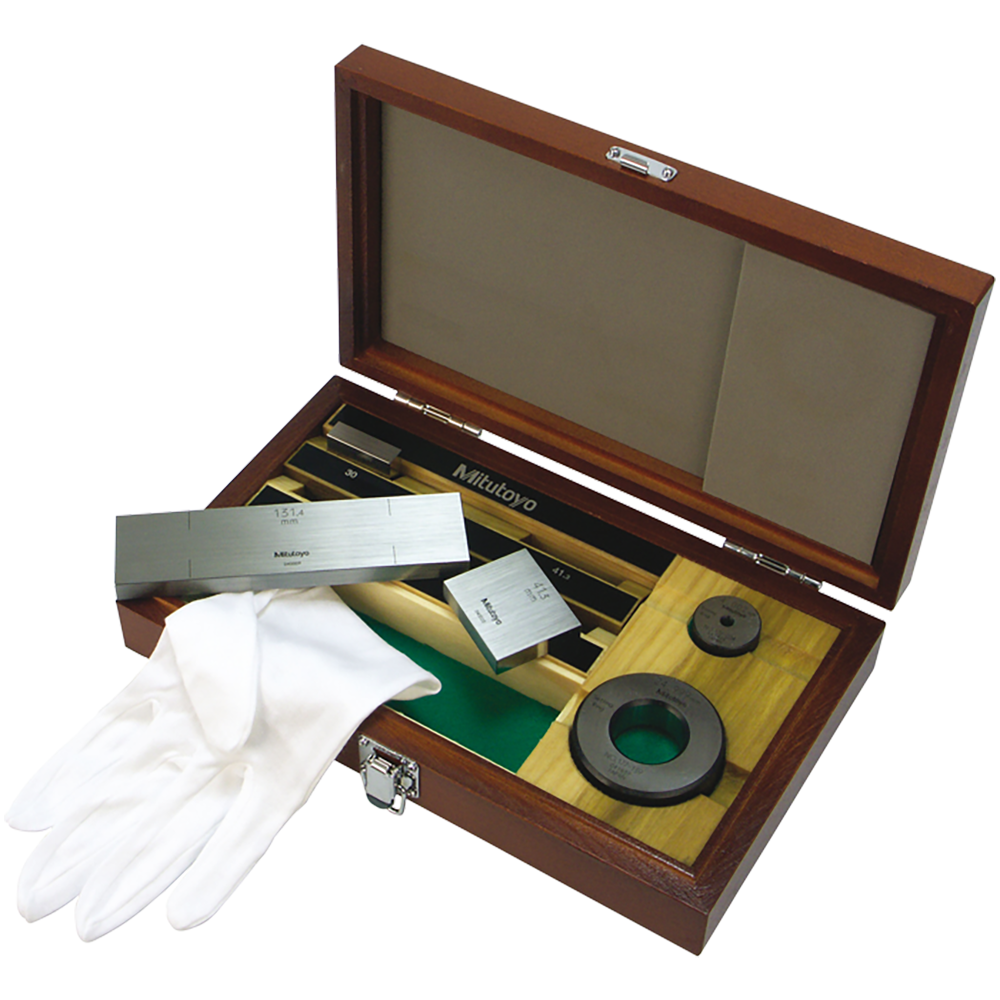

  • Set contents
    1 individual gauge block, 30.0 mm
    1 individual gauge block, 41.3 mm
    1 individual gauge block, 131.4 mm
    1 ring gauge, Ø 4 mm
    1 ring gauge, Ø 25 mm
  • Supplied in a wooden box with 1 pair of gloves

For testing pocket callipers of up to 200 mm
Article no./ATORN no.
5360050015
Vendor Article no.
516-124-10
Packaging unit
1
Catalogue page

Technical characteristics

Adjusting ring diameter Ø 4 / 25 mm
Contents per set Parallelendmaße 30 / 41,3 / 131,4 mm Einstellring Ø 4 / 25 mm / Handschuhe
Degree of accuracy
DIN DIN EN ISO 3650
Included in delivery Sturdy box + Manufacturer’s test certificate
Max. length of application area 200 mm
Nominal dimension in assortment 30 / 41,3 / 131,4 mm
