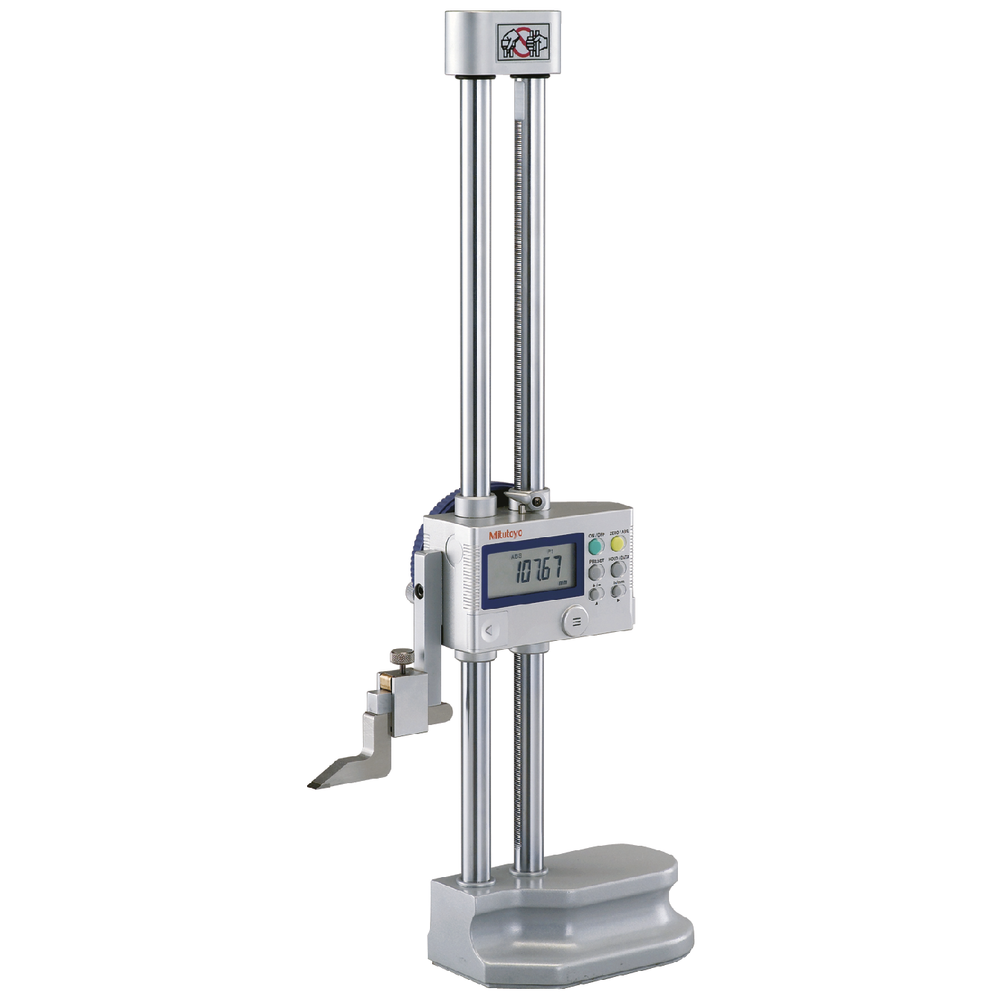

Digital height meter and marking-out instrument with two columns

• Sturdy design with large stand
• All key parts hardened
• Rear-mounted hand wheel for quick adjustment, angled by 10° to allow easier operation
• Easy to read thanks to high-contrast LCD
• Scriber offset and carbide-tipped
• Readings: 0.005 mm, can be switched to 0.01 mm
• With integrated fine adjustment
• Can store 2 reference values
• Battery life approx. 5,000 hours
• Functions: ON/OFF, ZERO/ABS, PRESET for storing 2 reference values, HOLD/DATA, reverse measuring direction (+/-)
• Supplied in moulded packaging with SR44 battery, no. 500534 0001
• Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Standard version
