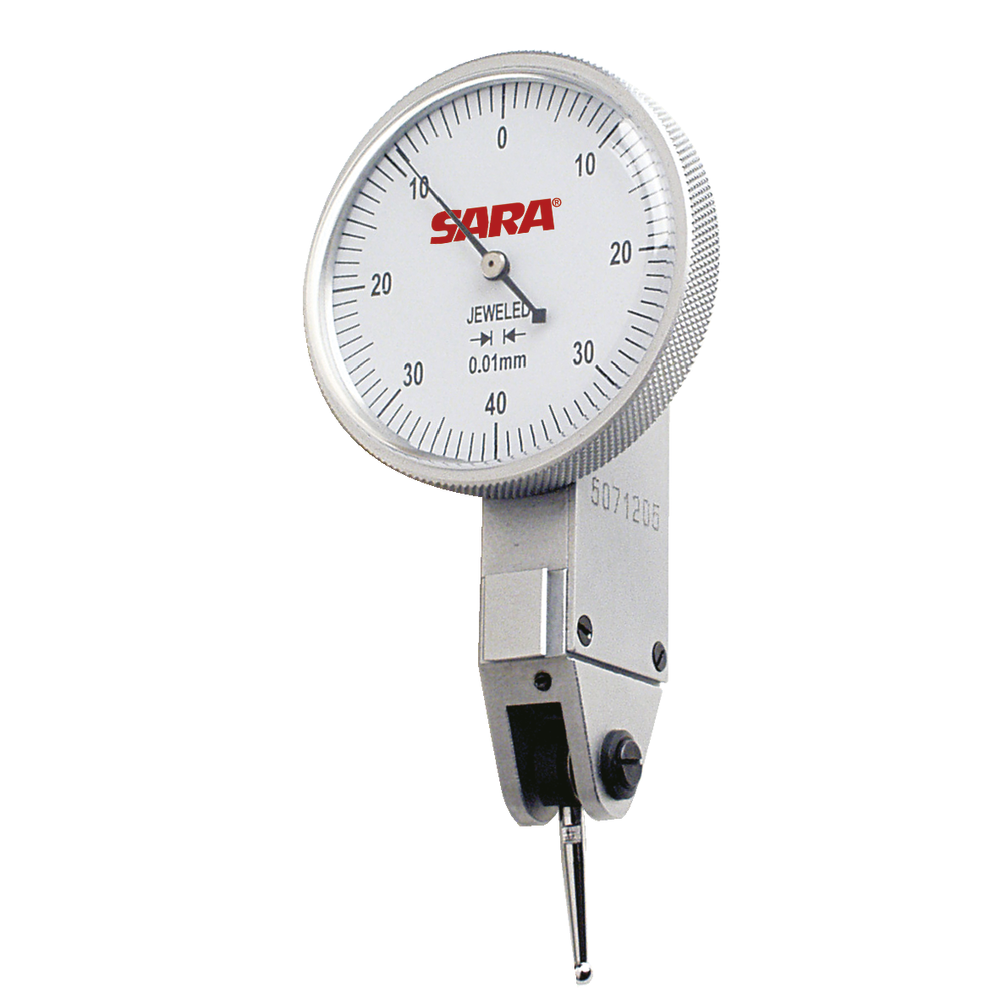

Lever dial indicator 0,8mm (0,01mm) scale 0-40-0, outer ring 29mm

Price:
79,90 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Dial test indicator
  • Ideal for measuring deviations in shape and position, true running and axial run-out as well as alignment work
  • Matt chrome-plated metal casing
  • Casing and dovetail mounting V-blocks made in one piece for exceptionally rigid clamping
  • Supplied with Ø 6 and 8 mm clamping shank

Dial test indicator
  • Ideal for measuring deviations in shape and position, true running and axial run-out as well as alignment work
  • Matt chrome-plated metal casing
  • Casing and dovetail mounting V-blocks made in one piece for exceptionally rigid clamping
  • Supplied with Ø 6 and 8 mm clamping shank

Article no./ATORN no.
5250310029
Packaging unit
1
Catalogue page

Technical characteristics

DIN 2270
DIN 2270
Display Analogue
Error limit 10 µm
Error limit 10 µm
Included in delivery Sturdy box
Included in delivery Sturdy box
Length of measuring sensor from centre of ball 14,3 mm
Length of measuring sensor from centre of ball 14,3 mm
Max. length measuring range 0,8 mm
Measurement range 0,8 mm
Outer diameter 29 mm
Outer diameter 29 mm
Scale value 0,01 mm
Scale value 0,01 mm
