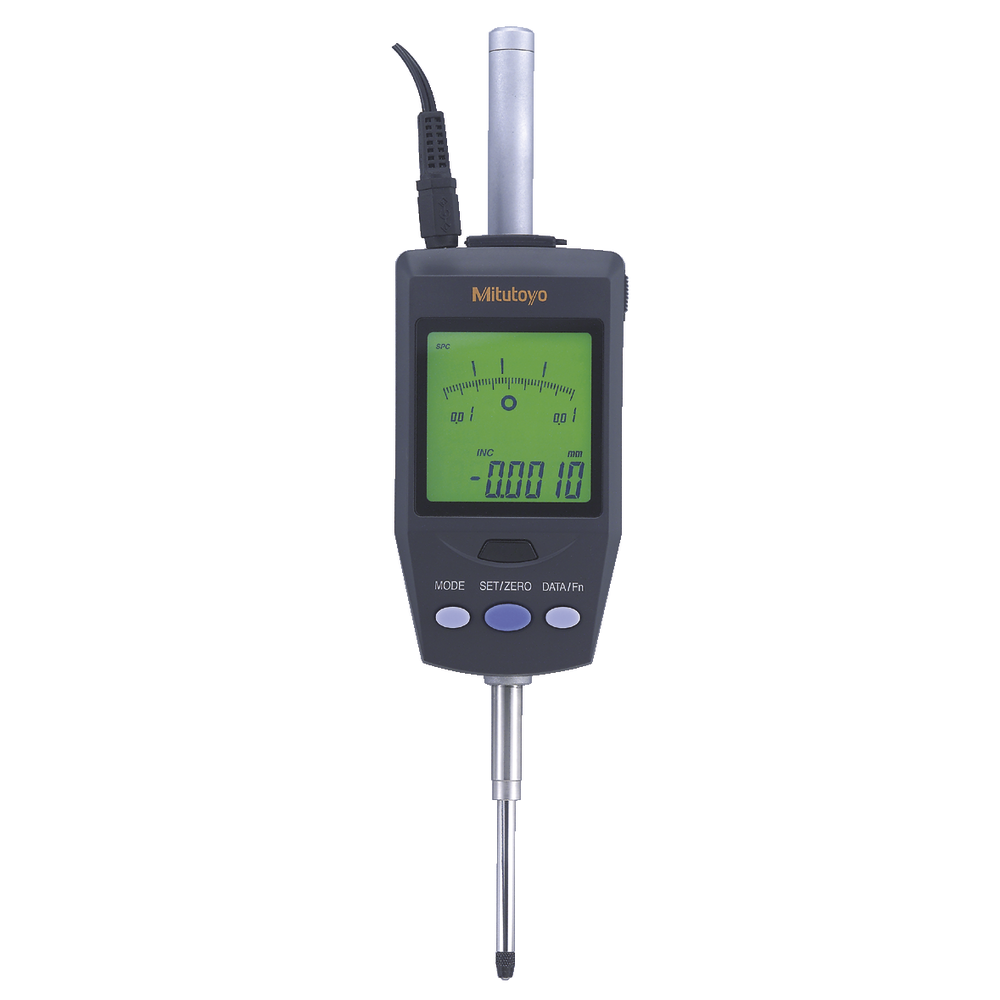

Digital dial indicator IDH

• Can be remote controlled
• Power supply via mains adapter
• Photoelectric backlit glass scale
• Max. travel speed 1,000 mm/sec.
• Backlit LCD display
• Combined digital and analogue display
• Max., min. or difference values (TIR) can be selected for run-out measurements
• Optional remote control available
• Combined Digimatic / RS-232 C interface data output, can be used in both directions
• Clamping shank Ø 8 mm
• Functions: ON/OFF, MODE for switching from normal mode to tolerance evaluation, resolution for digital and analogue display, setup menu, MAX, MIN and TIR, toggle between 0.001 mm and 0.01 mm, (+/-) sign selection, SET/ZERO for confirming inputs and the display zero point, DATA/fn for data transfer and keypad lock
• Supplied in moulded packaging with mains adapter and factory certificate
• Optional accessories: Digimatic cable type D, no. 563100 0031 (1 m), no. 563100 0032 (2 m), USB cable type D-USB, no. 563110 0004

Dial indicator
Digital dial indicator IDH

• Can be remote controlled
• Power supply via mains adapter
• Photoelectric backlit glass scale
• Max. travel speed 1,000 mm/sec.
• Backlit LCD display
• Combined digital and analogue display
• Max., min. or difference values (TIR) can be selected for run-out measurements
• Optional remote control available
• Combined Digimatic / RS-232 C interface data output, can be used in both directions
• Clamping shank Ø 8 mm
• Functions: ON/OFF, MODE for switching from normal mode to tolerance evaluation, resolution for digital and analogue display, setup menu, MAX, MIN and TIR, toggle between 0.001 mm and 0.01 mm, (+/-) sign selection, SET/ZERO for confirming inputs and the display zero point, DATA/fn for data transfer and keypad lock
• Supplied in moulded packaging with mains adapter and factory certificate
• Optional accessories: Digimatic cable type D, no. 563100 0031 (1 m), no. 563100 0032 (2 m), USB cable type D-USB, no. 563110 0004

Dial indicator
