Digital dial indicator 25mm (0,01mm) IDU, slim design

Price:
199,00 €
(247,00 € catalogue price / 19% saved)
valid until: 31.05.2024
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 19:30 - delivered tomorrow.

Add service

*
*

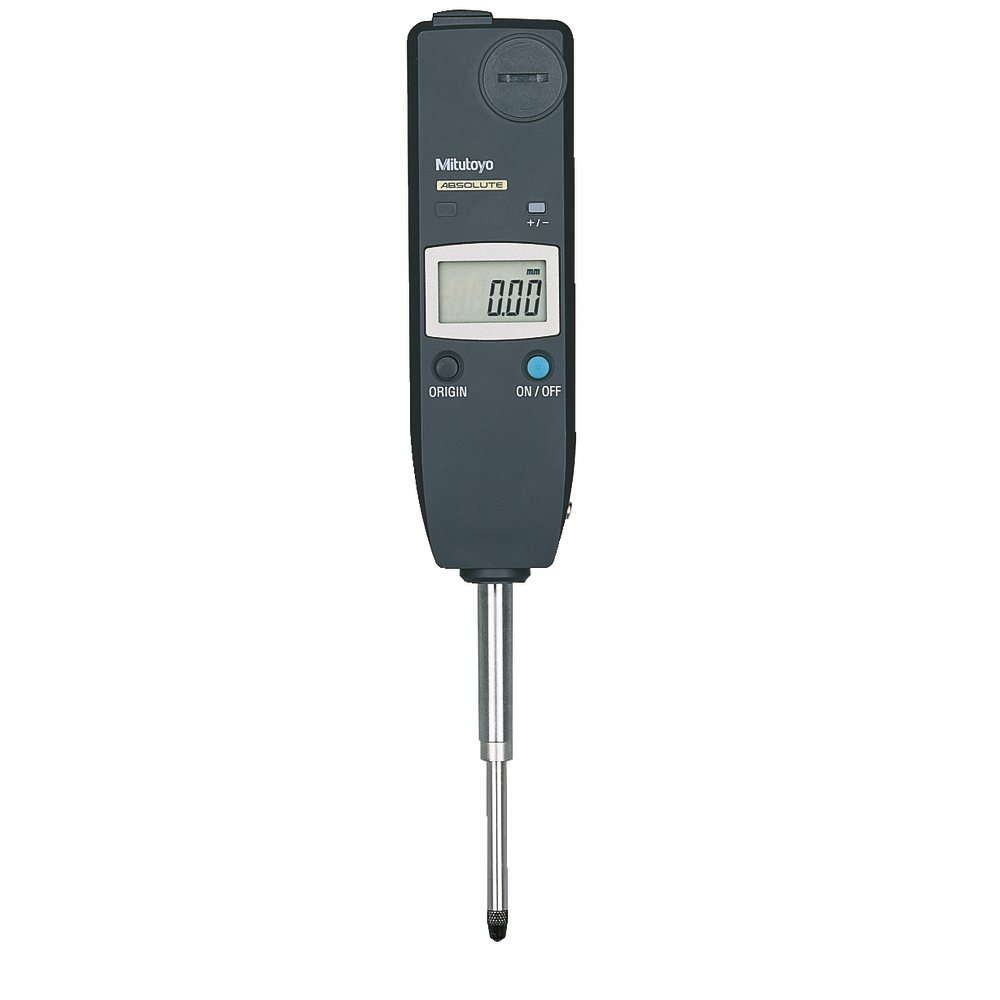

Digital ABSOLUTE dial indicator IDU
  • ABSOLUTE scale
  • Casing size: 38 x 126 x 23 mm
  • Clamping shank Ø 8 mm
  • Contact point: Carbide with M2.5 thread
  • Battery life approx. 20,000 hours
  • Functions: On/off, zero point (ORIGIN), reverse counting direction (+/-)
  • Supplied in moulded packaging with SR44 battery (no. 500534 0001) and lifting lever
  • Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006

Article no./ATORN no.
5120300101
Vendor Article no.
575-121
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type DIGIMATIC/USB
Digit increment 0,01 mm
DIN Werksnorm
Display Digital
Error limit 0,020 mm
Functions Absolute function
Max. length measuring range 25 mm
Measuring force max. 1,8 N
