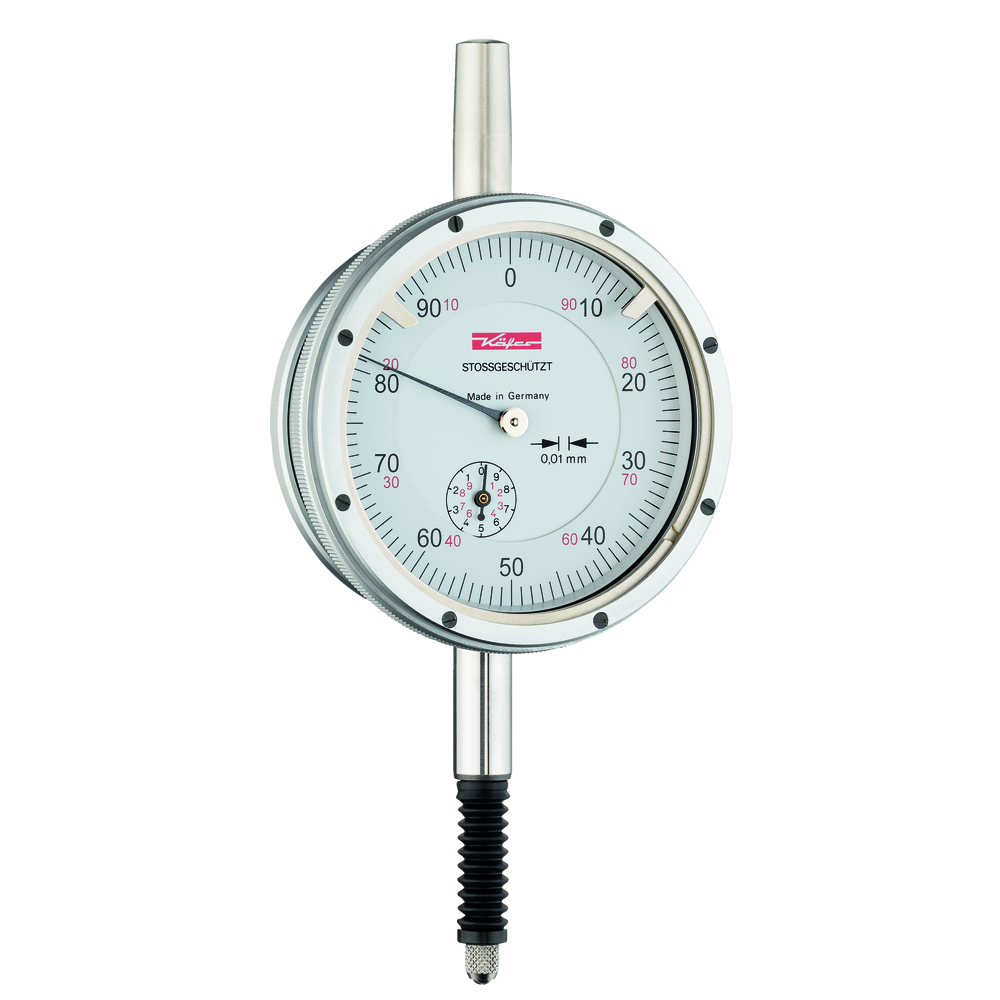

Dial indicator 10mm (0,01mm) outer ring 61,5mm, oil + water-proof, shock-proof

Dial indicator 10mm (0,01mm) outer ring 61,5mm, oil + water-proof, shock-proof
Dial indicator 10mm (0,01mm) outer ring 61,5mm, oil + water-proof, shock-proof
Price:
98,50 €
(128,50 € catalogue price / 23% saved)
valid until: 30.06.2024
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Dial indicator, oil and water-tight, shock-proof
  • Dimensions in accordance with DIN EN ISO 463 Issue 6/2006 (except L2 = 39.5 mm)
  • Oil and water-tight / IP67 protection rating
  • With shock proofing
  • Outer ring can be rotated through 360°
  • Two adjustable tolerance marks
  • Probe tip thread M2.5
  • Clamping shank Ø 8 mm

Standard version
Dial indicator, oil and water-tight, shock-proof
  • Dimensions in accordance with DIN EN ISO 463 Issue 6/2006 (except L2 = 39.5 mm)
  • Oil and water-tight / IP67 protection rating
  • With shock proofing
  • Outer ring can be rotated through 360°
  • Two adjustable tolerance marks
  • Probe tip thread M2.5
  • Clamping shank Ø 8 mm

Standard version
Article no./ATORN no.
5110080010
Vendor Article no.
10127
Packaging unit
1
Catalogue page
KS-1402

Technical characteristics

DIN 878
Division 0,01 mm
External ring Ø 61,5 mm
Housing outer diameter 61,5 mm
Max. length measuring range 10 mm
Measurement range 10 mm
Measurement route per rotation of indicator 1 mm
Measurement travel of one pointer revolution 1 mm
Measuring force max. 1,6 N
Measuring force max. 1,6 N
Protection type IP 67
Protection type IP 67
Reading 0.01 mm readings
Scale value 0,01 mm
Standard constructional dimensions DIN DIN 878
