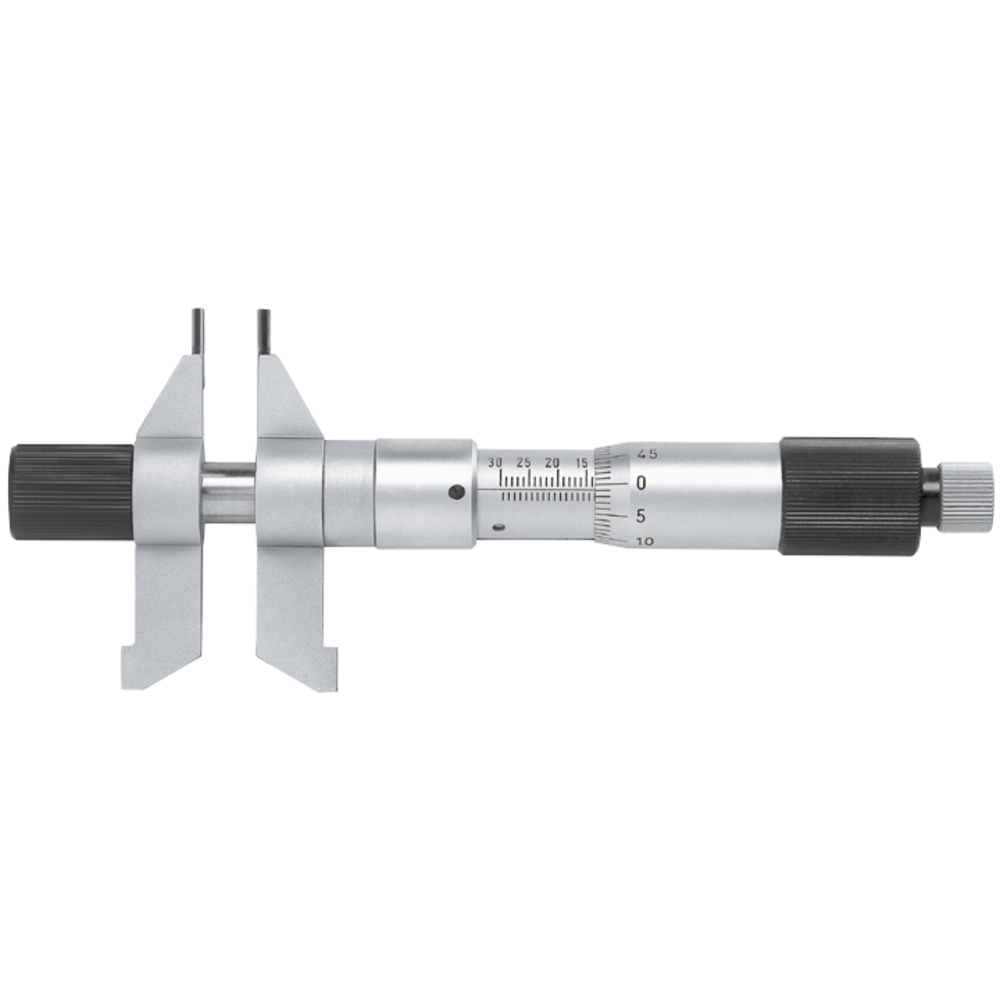

Inside micrometer 5-55mm (0,01mm) with double jaws

Inside micrometer 5-55mm (0,01mm) with double jaws
Inside micrometer 5-55mm (0,01mm) with double jaws Inside micrometer 5-55mm (0,01mm) with double jaws
Price:
1.099,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*
Inside micrometer with double jaws
  • Hardened and ground measuring spindle with ball bearing
  • With robust, cylindrical carbide measuring jaws
  • Two separate, individually adjustable inner scale sleeves for easy, direct readings and adjustment
  • Measuring barrel Ø 21 mm
  • Precision: 2 µm
  • Constant measuring pressure due to advanced friction coupling

Inside micrometer with double jaws
  • Hardened and ground measuring spindle with ball bearing
  • With robust, cylindrical carbide measuring jaws
  • Two separate, individually adjustable inner scale sleeves for easy, direct readings and adjustment
  • Measuring barrel Ø 21 mm
  • Precision: 2 µm
  • Constant measuring pressure due to advanced friction coupling

Article no./ATORN no.
5061010555 / 31160041
Packaging unit
1
Catalogue page
KS-1382

Technical characteristics

Digit increment 0,01 mm
DIN Non-DIN
DIN Werksnorm
Display Analogue
Error limit 2,5 µm
Error limit 0,0025 mm
Included in delivery Sturdy box
Included in delivery Sturdy box
Measurement range 5-55 mm
Measurement range 5-55 mm
Measuring spindle increments 0,5 mm
Measuring spindle increments 0,5 mm
Messbereich Länge 25 mm
Messbereich Länge max. 55 mm
Messbereich Länge min. 5 mm
Vernier 0,01 mm
