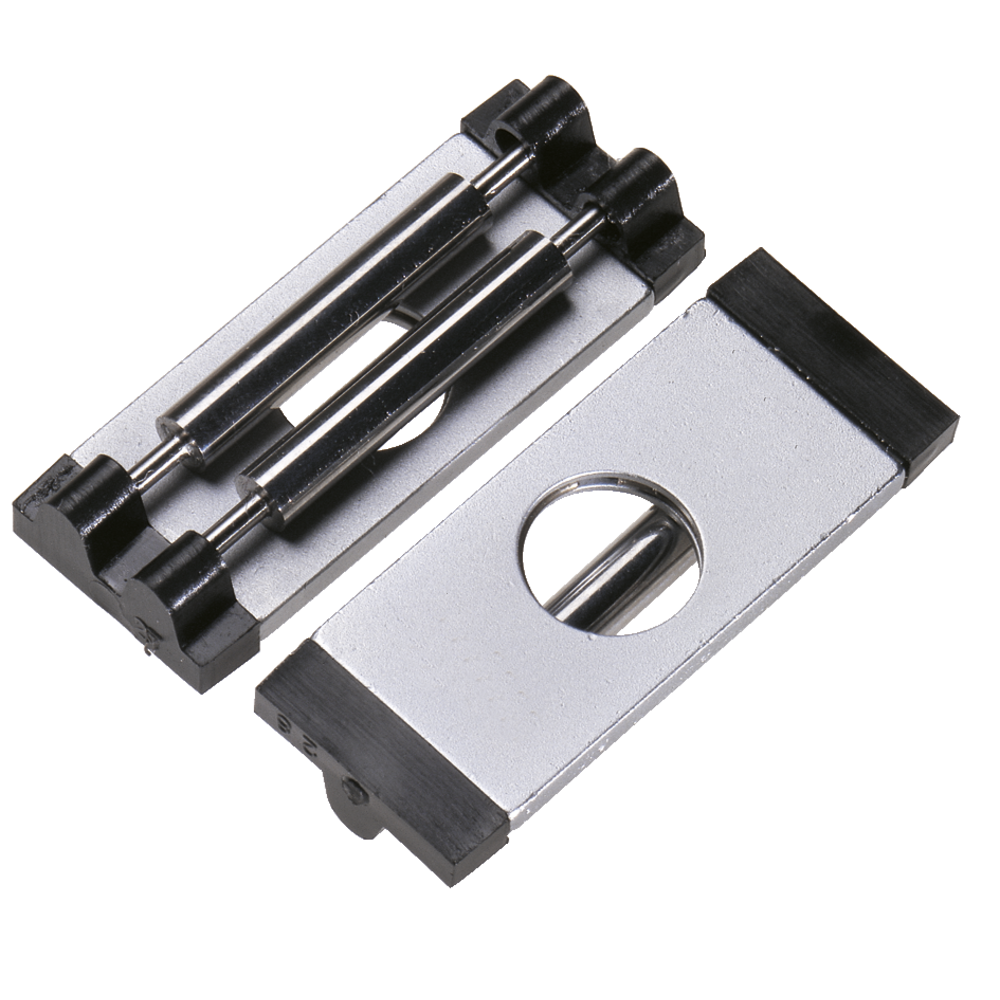

Gewindemessdraht 0,170mm (Aufnahme-ø 6,35mm)

Gewindemessdraht 0,170mm (Aufnahme-ø 6,35mm)
Gewindemessdraht 0,170mm (Aufnahme-ø 6,35mm) Gewindemessdraht 0,170mm (Aufnahme-ø 6,35mm) Gewindemessdraht 0,170mm (Aufnahme-ø 6,35mm)
Price:
153,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*
Thread measuring wires
  • For mounting on micrometers
  • For determining the pitch diameter of outside threads based on the three-wire method
  • hardened, precision-lapped
  • Error margin 0.001mm
  • with locating bore Ø 6.35mm
  • other versions available on request
  • Free software for check gauge calculation is available on our homepage

Check gauge M for metric thread DIN 13 Sheet 1
M3 = 3.113mm / M10 = 10.414mm / M22 = 23.163mm
M4 = 4.305mm / M12 = 12.650mm / M24 = 25.606mm
M5 = 5.153mm / M14 = 15.021mm / M27 = 28.605mm
M6 = 6.346mm / M16 = 17.021mm / M30 = 30.848mm
M8 = 8.282mm / M20 = 21.163mm / M33 = 33.848mm
Thread measuring wires
  • For mounting on micrometers
  • For determining the pitch diameter of outside threads based on the three-wire method
  • hardened, precision-lapped
  • Error margin 0.001mm
  • with locating bore Ø 6.35mm
  • other versions available on request
  • Free software for check gauge calculation is available on our homepage

Check gauge M for metric thread DIN 13 Sheet 1
M3 = 3.113mm / M10 = 10.414mm / M22 = 23.163mm
M4 = 4.305mm / M12 = 12.650mm / M24 = 25.606mm
M5 = 5.153mm / M14 = 15.021mm / M27 = 28.605mm
M6 = 6.346mm / M16 = 17.021mm / M30 = 30.848mm
M8 = 8.282mm / M20 = 21.163mm / M33 = 33.848mm
Article no./ATORN no.
5040190170
Vendor Article no.
952131
Packaging unit
1
Catalogue page

Technical characteristics

Design Holder Ø 6.35 mm
Design Holder Ø 6.35 mm
Pilot wire Ø 0,170 mm
Thread M1-M1,4
