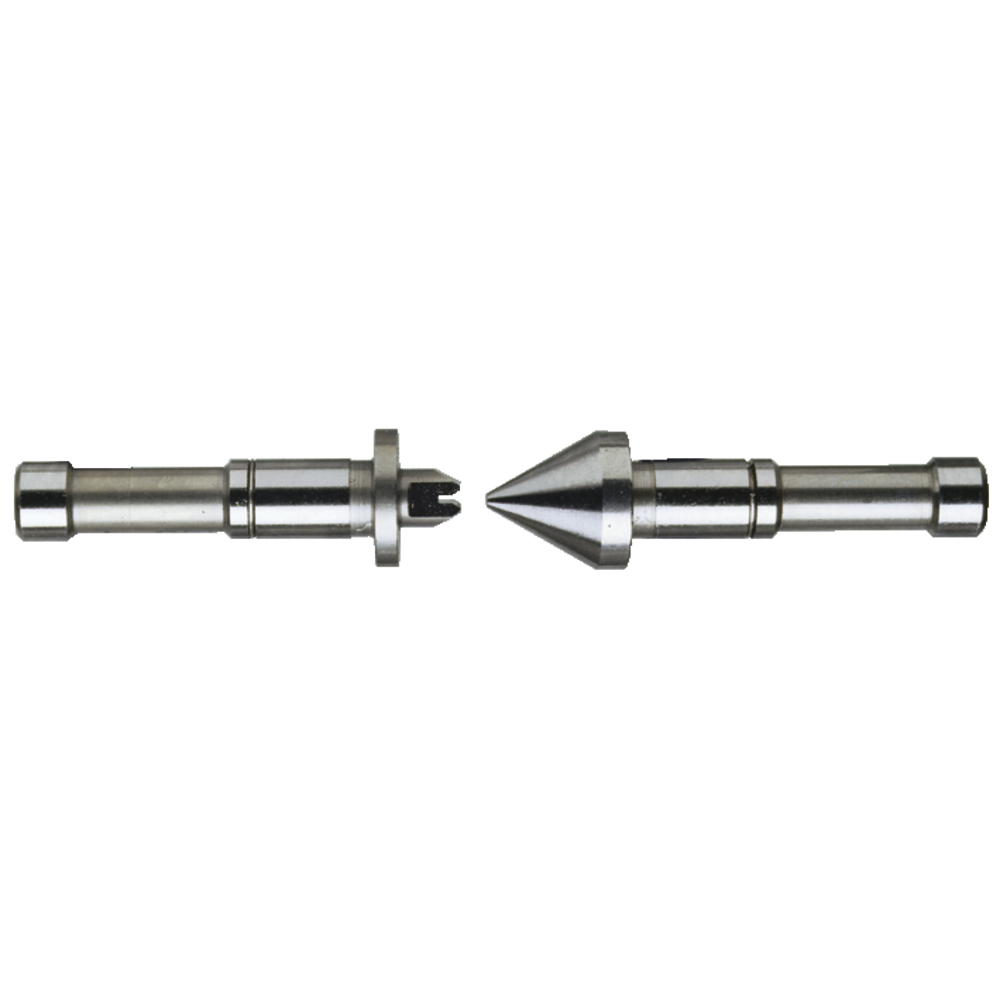

Measuring insert 60°, lead 0,4-0,5mm (metric), 64-48 thread/inch (UNF)

Measuring insert 60°, lead 0,4-0,5mm (metric), 64-48 thread/inch (UNF)
Measuring insert 60°, lead 0,4-0,5mm (metric), 64-48 thread/inch (UNF) Measuring insert 60°, lead 0,4-0,5mm (metric), 64-48 thread/inch (UNF)
Price:
75,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Individual measuring inserts, 60°, for metric and UNF threads
  • Hardened, with precision-finished V-block, taper and clamping shank

Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Individual measuring inserts, 60°, for metric and UNF threads
  • Hardened, with precision-finished V-block, taper and clamping shank

Article no./ATORN no.
5040090001
Vendor Article no.
126-801
Packaging unit
1
Catalogue page
KS-1376

Technical characteristics

Designation Gewindemesseinsatz 60° metrisch / UNF
Min./max. pitch 0,4-0,5 mm / 64-48 Gang UNF
Pitch metr. 0,4 - 0,5 mm
UNF 64 - 48 TPI
