Special-purpose digital outside micrometers IP65

• Steel clamp, with ratchet and lock lever
• LCD display with 7.5 mm high digits
• Scale barrel Ø: 18 mm
• Spindle Ø: 6.35 mm
• Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD)
• Supplied in a case with adjustment key and SR44 battery (no. 500534 0001); versions over 25 mm include setting gauge
• Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m), USB cable type B-USB, no. 563110 0002

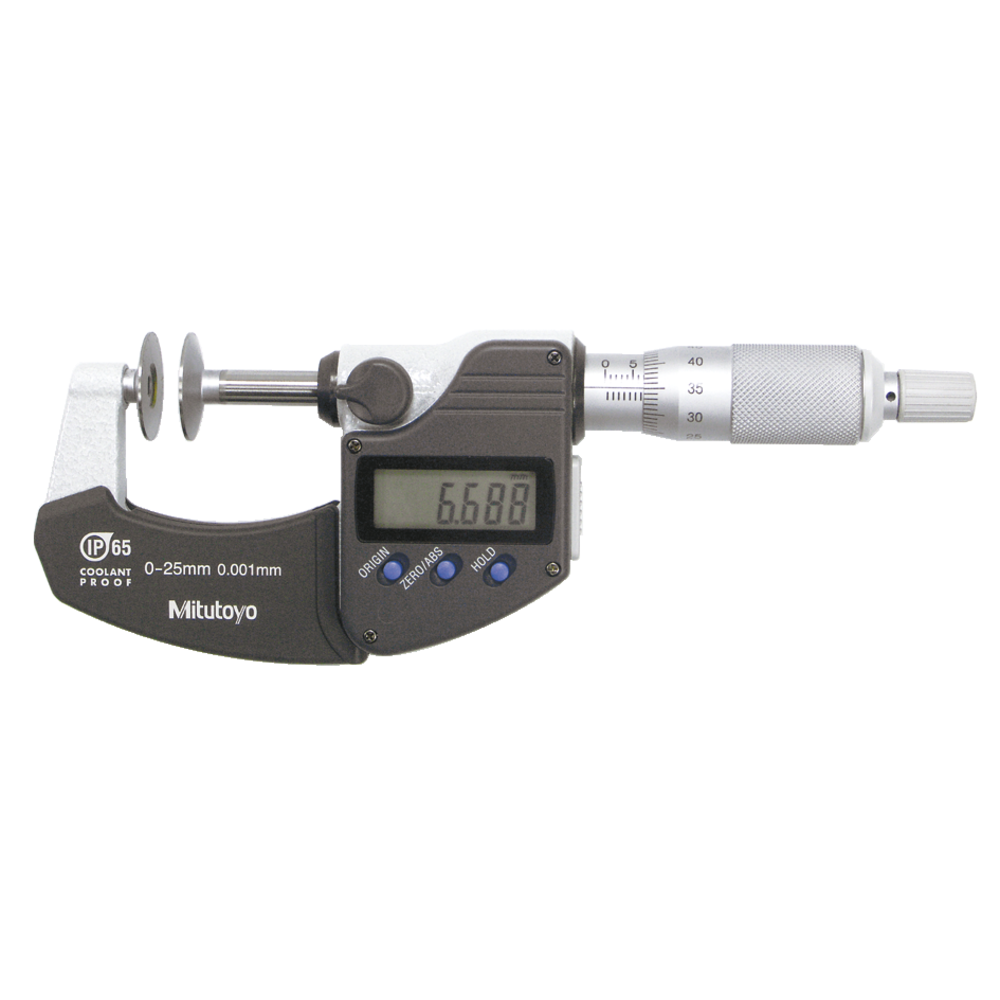

Type D7

• For tooth width measurement, module 0.5 to 6
• Disc measuring faces Ø 20 x 0.7 mm
• Calibration includes setting gauge
