Bügelmessschraube Form D16 50-150mm (0,01mm) mit auswechselbarem Amboss

Bügelmessschraube Form D16 50-150mm (0,01mm) mit auswechselbarem Amboss
Bügelmessschraube Form D16 50-150mm (0,01mm) mit auswechselbarem Amboss Bügelmessschraube Form D16 50-150mm (0,01mm) mit auswechselbarem Amboss
Price:
652,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*

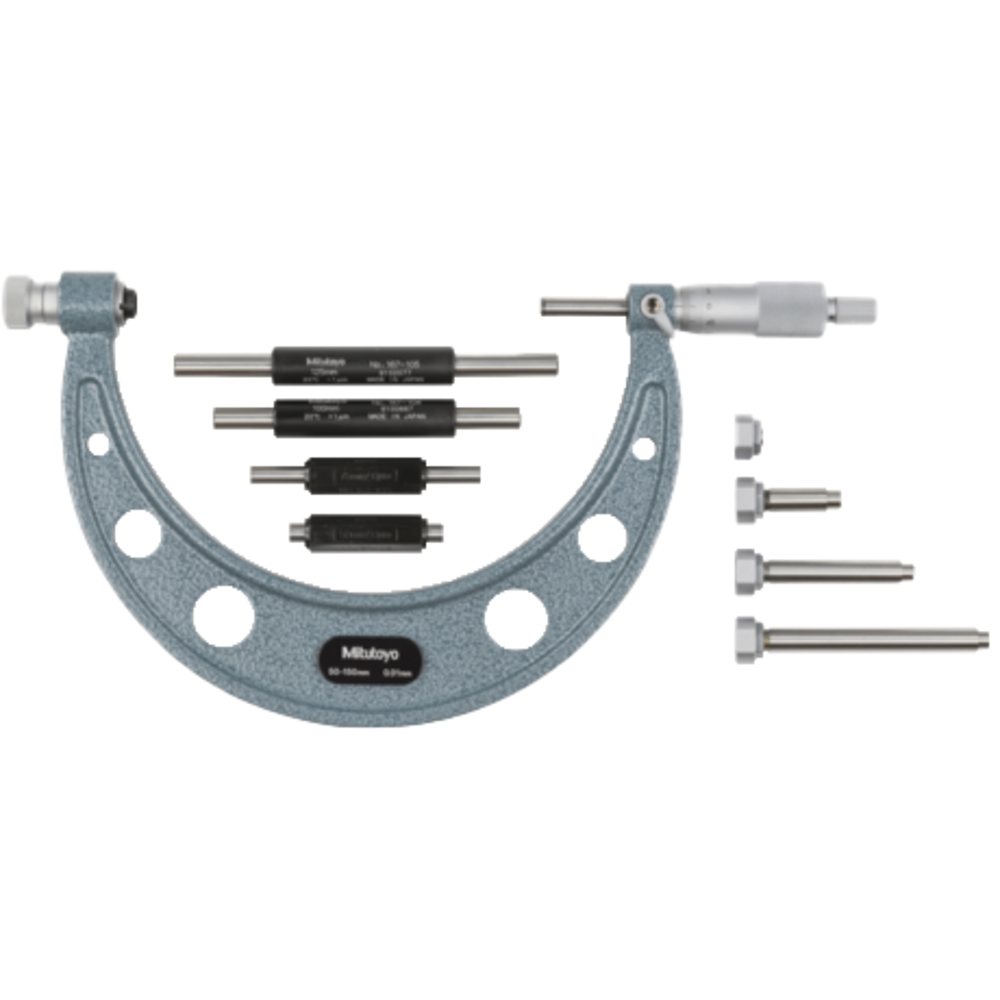

Outside micrometer with replaceable anvil
  • Form D16
  • The replaceable measuring anvils permit a variable measurement range. Adjustments are performed using the setting gauge provided.
  • Painted steel frame with bores to reduce weight
  • Spindle fixed by means of a locking lever
  • Reading parts matt chrome-plated
  • Scale barrel Ø: up to 300 mm = 18 mm, above 300 mm = 21 mm
  • Spindle Ø up to 300 mm = 6.35 mm, above 300 mm = 8 mm
  • Error margin: up to 500 mm = DIN, from 500 mm = ± (4 + L/75) µm
  • Measuring faces: Carbide-tipped spindle
  • Inserts: special steel, hardened
  • Calibration including setting gauges
  • Supplied with adjustment key, replaceable inserts and setting gauges

Outside micrometer with replaceable anvil
  • Form D16
  • The replaceable measuring anvils permit a variable measurement range. Adjustments are performed using the setting gauge provided.
  • Painted steel frame with bores to reduce weight
  • Spindle fixed by means of a locking lever
  • Reading parts matt chrome-plated
  • Scale barrel Ø: up to 300 mm = 18 mm, above 300 mm = 21 mm
  • Spindle Ø up to 300 mm = 6.35 mm, above 300 mm = 8 mm
  • Error margin: up to 500 mm = DIN, from 500 mm = ± (4 + L/75) µm
  • Measuring faces: Carbide-tipped spindle
  • Inserts: special steel, hardened
  • Calibration including setting gauges
  • Supplied with adjustment key, replaceable inserts and setting gauges

Article no./ATORN no.
5023915150
Vendor Article no.
104-161A
Packaging unit
1
Catalogue page

Technical characteristics

Contents 1 Bügelmessschraube, 4 Einsätze und 4 Einstellmaße
DIN 863/3
Display Analogue
Included in delivery Sturdy box
Inserts 4
Material property Outside micrometer, carbide-tipped
Measurement chuck Spindle pitch 0.5 mm
Measurement range 50-150 mm
Measurement range 50-150 mm
Measuring spindle increments 0,5 mm
Packaging / Shipment Sturdy box
Reading 0.01 mm readings
Setting gauges 4
Standard constructional dimensions DIN DIN 863/3
Vernier 0,01 mm
