With factory certificate for measurement ranges up to 50 mm!

Digital outside micrometer IP65

• Precision design with ratchet
• Shock-proof design
• Robust frame made from special cast iron, painted, with hand protection
• Spindle fixed by means of a lever button
• Matt chrome-plated scale sleeve and scale barrel
• Readings via large LCD display with 7.5 mm high digits
• Automatic switch-off if left idle
• “Function Lock” for saving original values up to a measurement range of 100 mm
• Scale barrel Ø 18 mm
• Spindle Ø 6.35 mm
• Calibration includes setting gauge
• Accuracy exceeds DIN 863 requirements
• Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
• Supplied with adjustment key and SR44 battery, no. 500534 0001; versions with measurement ranges over 25 mm include setting gauge and versions up to 50 mm include factory certificate
• Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

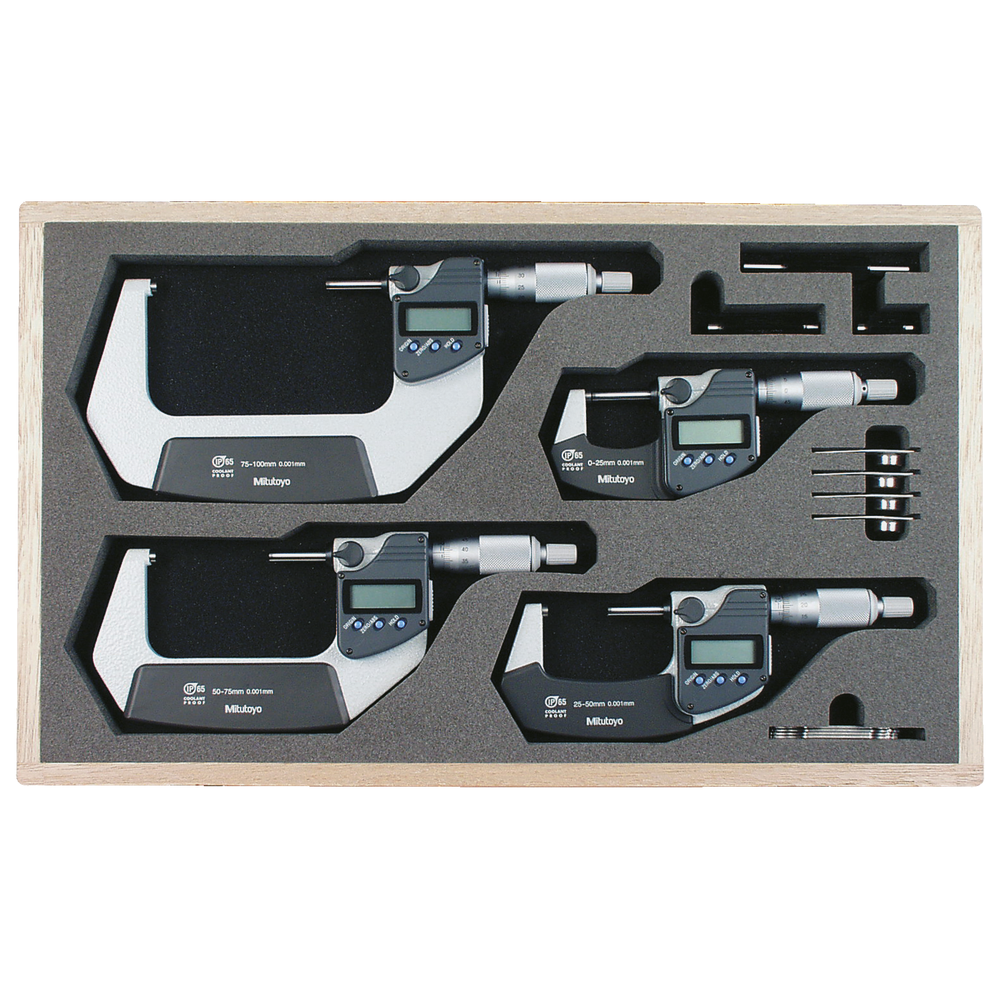

Set

• Digital outside micrometers with data output
• Supplied in a case with adjustment key, battery and necessary setting gauges

With factory certificate for measurement ranges up to 50 mm!

Digital outside micrometer IP65

• Precision design with ratchet
• Shock-proof design
• Robust frame made from special cast iron, painted, with hand protection
• Spindle fixed by means of a lever button
• Matt chrome-plated scale sleeve and scale barrel
• Readings via large LCD display with 7.5 mm high digits
• Automatic switch-off if left idle
• “Function Lock” for saving original values up to a measurement range of 100 mm
• Scale barrel Ø 18 mm
• Spindle Ø 6.35 mm
• Calibration includes setting gauge
• Accuracy exceeds DIN 863 requirements
• Functions: Initial value (ORIGIN), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
• Supplied with adjustment key and SR44 battery, no. 500534 0001; versions with measurement ranges over 25 mm include setting gauge and versions up to 50 mm include factory certificate
• Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Set

• Digital outside micrometers with data output
• Supplied in a case with adjustment key, battery and necessary setting gauges
