Outside micrometer 0-25mm (0,01mm) with ratchet barrel

Outside micrometer 0-25mm (0,01mm) with ratchet barrel
Outside micrometer 0-25mm (0,01mm) with ratchet barrel Outside micrometer 0-25mm (0,01mm) with ratchet barrel Outside micrometer 0-25mm (0,01mm) with ratchet barrel
Price:
69,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*
With factory certificate for measurement ranges up to 50 mm!

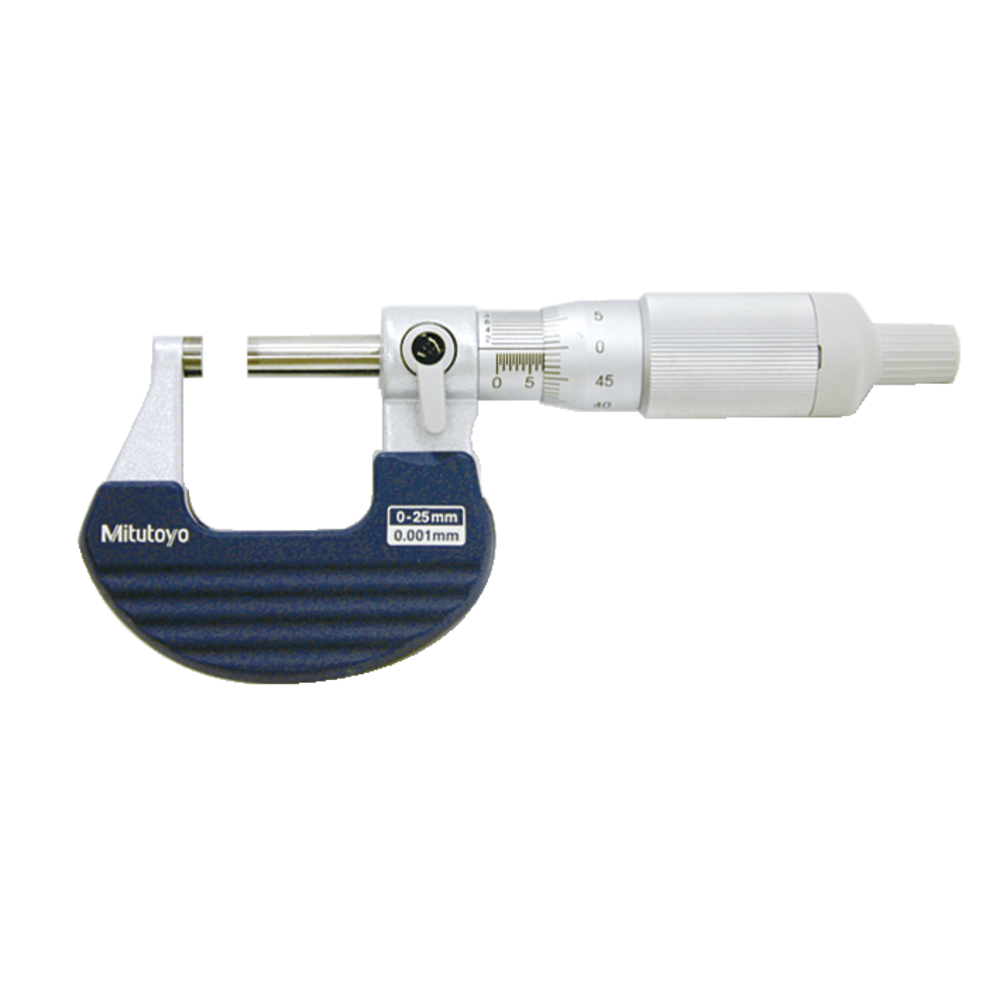

Outside micrometer
  • Sturdy, with ratchet
  • Steel frame with hand protection
  • Spindle fixed by means of a locking lever
  • Reading parts matt chrome-plated
  • Spindle Ø: 6.35 mm
  • Measuring force: 5 - 10 N
  • Calibration includes setting gauges
  • Supplied with adjustment key; versions with measurement range over 25 mm also include setting gauge; versions up to 50 mm include factory certificate

Individual, with ratchet barrel
  • A new and exceptionally smooth-running ratchet mechanism provides a constant measuring force that enables quick and safe one-handed operation due to the ratchet design of both the measuring barrel and quick adjustment
  • Scale barrel Ø 19 mm

With factory certificate for measurement ranges up to 50 mm!

Outside micrometer
  • Sturdy, with ratchet
  • Steel frame with hand protection
  • Spindle fixed by means of a locking lever
  • Reading parts matt chrome-plated
  • Spindle Ø: 6.35 mm
  • Measuring force: 5 - 10 N
  • Calibration includes setting gauges
  • Supplied with adjustment key; versions with measurement range over 25 mm also include setting gauge; versions up to 50 mm include factory certificate

Individual, with ratchet barrel
  • A new and exceptionally smooth-running ratchet mechanism provides a constant measuring force that enables quick and safe one-handed operation due to the ratchet design of both the measuring barrel and quick adjustment
  • Scale barrel Ø 19 mm

Article no./ATORN no.
5029080025
Vendor Article no.
102-701
Packaging unit
1
Catalogue page
KS-1363

Technical characteristics

DIN 863/1
Display Analogue
Error limit 0,003 mm
Error limit 0,003 mm
Included in delivery Sturdy box
Material property Outside micrometer, carbide-tipped
Material property Outside micrometer, carbide-tipped
Measurement chuck Spindle pitch 0.5 mm
Measurement range 0-25 mm
Measurement range 0-25 mm
Measuring spindle increments 0,5 mm
Packaging / Shipment Sturdy box
Reading 0,01 mm
Reading 0.001 mm readings
Standard constructional dimensions DIN DIN 863/1
Vernier 0,01 mm
