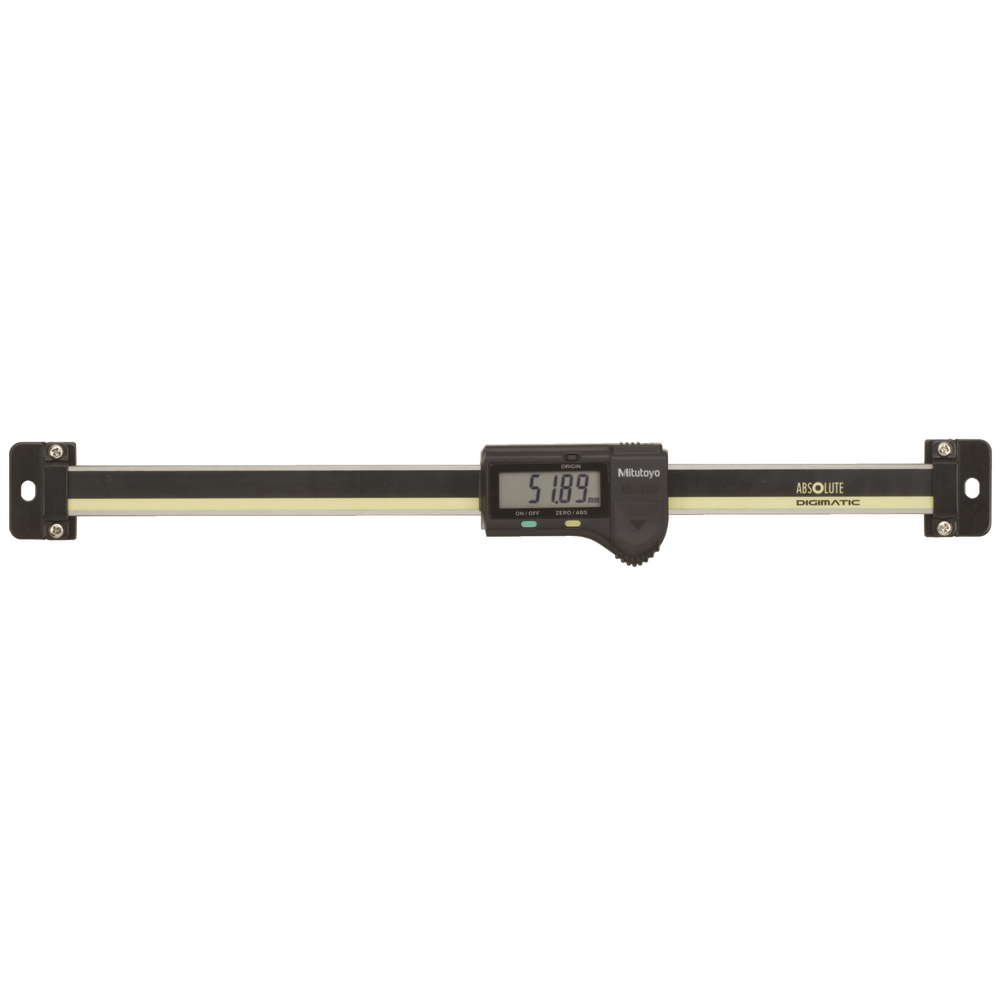

Einbaumessschieber digital 100mm (0,01mm) horizontal

5720150100

270,00 €

prices excl. vat plus shipping costs

Stock status

subsequent delivery

Add to shopping cart

Compare

Factory calibration Vernier callipers 0-200 mm

Article no.: 072008W001

8,80 €

Inspection plate - next interval in months

Article no.: 0790010013

0,80 €

G r a v u r e:

Article no.: 0790010001

5,50 €

Built-in sliding calliper

With data output
Stainless steel
"ABSOLUTE" scale
Capacitive measuring system with dirt wiper in the slider
Battery life approx. 20,000 hours
Readings: 0.01 mm
With threaded bores (2x M3 x 0.5) on the rear side of the display
Functions:
1 ON/OFF
2 Zero point at battery change (ORIGIN)
3 user-defined zeroing (ZERO/ABS), battery check
Supplied in cardboard packaging with SR44 battery, no. 500534 0001
Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Horizontal readings
Built-in sliding calliper

With data output
Stainless steel
"ABSOLUTE" scale
Capacitive measuring system with dirt wiper in the slider
Battery life approx. 20,000 hours
Readings: 0.01 mm
With threaded bores (2x M3 x 0.5) on the rear side of the display
Functions:
1 ON/OFF
2 Zero point at battery change (ORIGIN)
3 user-defined zeroing (ZERO/ABS), battery check
Supplied in cardboard packaging with SR44 battery, no. 500534 0001
Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Horizontal readings

Article no./ATORN no.

5720150100

Vendor Article no.

572-200-30

Packaging unit

Catalogue page

Technical characteristics

Data transmission type DIGIMATIC/USB

Digit increment 0,01 mm

Error limit 0,03 mm

L 185 mm

L1 185 mm

L2 209 mm

Length of the test face 209 mm

Max. length measuring range 100 mm

Measurement range 100 mm

Output data format Digimatic

Weight 0,23 kg
