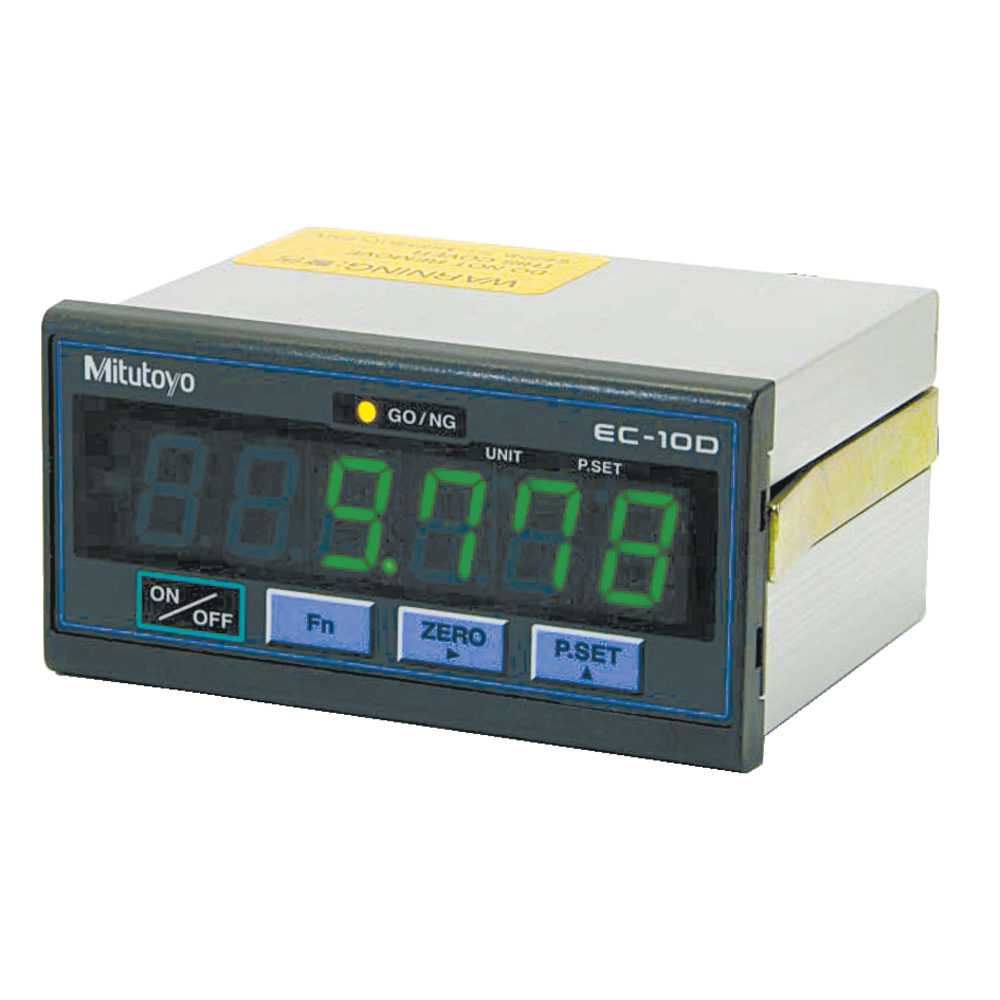

Digital display unit EC

• External device for displaying measurement values from Mitutoyo measuring instruments with a Digimatic interface
• LED for tolerance evaluation
• Pre-set function for setting measurement values
• Reverse counting direction
• Factor-based offsetting of measurement values
• Data outputs: DIGIMATIC and I/O interface for 3-level tolerance signal (I/O cable available as an optional accessory)
• mm/inch toggle option
• Digit height 15 mm LED
• Constructional dimensions 48 x 96 x 81.6 mm (H x W x D)
• Mains adapter power supply: 9 V / 400 mA
• Supplied with mains adapter and operating manual
• Optional accessories: Digimatic cable type D, no. 563100 0031 (1 m), no. 563100 0032 (2 m); USB cable type D-USB No. 563110 0004
