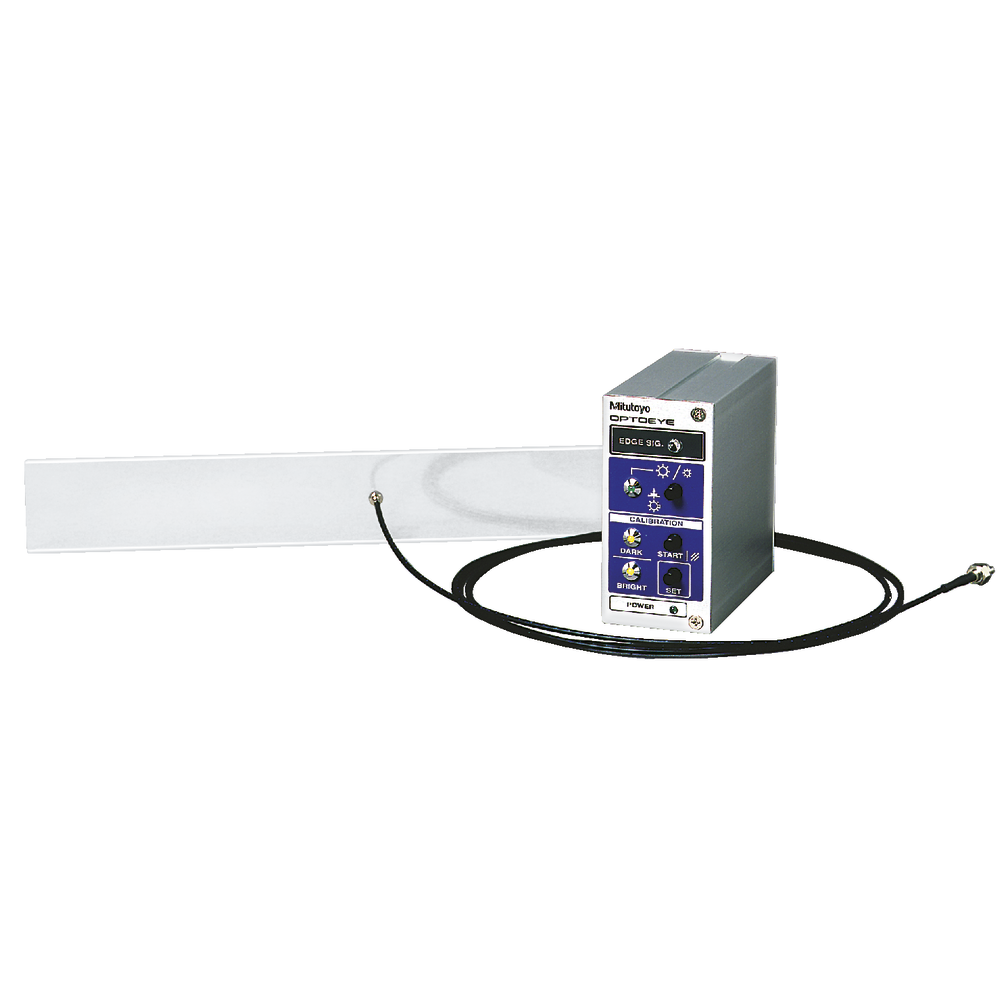

Edge sensor OPTOEYE 200

• Automatic edge detection for reducing human factors in measurements on Mitutoyo measuring projectors.
• Can only be used with QM-Data 200
• Can be used at a brightness of 30 to 500 Lux
• Required brightness difference between light and dark: 20 Lux
• Max. travel speed on the table: 4.5 mm/s with 10x lens and 5.5 mm/s for 20x, 50x and 100x lenses
• Precision s = 1 µm
• Smallest measurable Ø 2 mm on the screen
• Smallest measurable width 1 mm on the screen

Accessories
