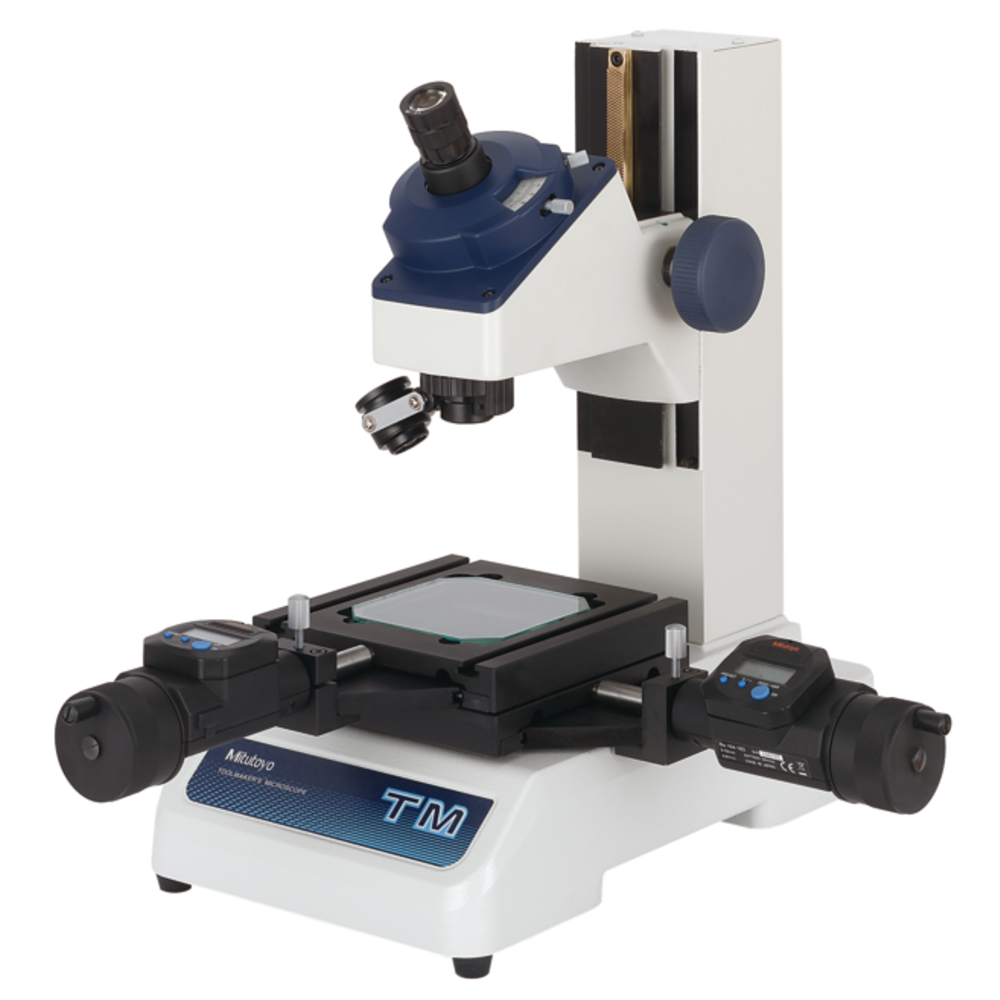

Workshop measuring microscope

• Compact and robust base body made from special cast iron
• Coordinate measuring table
• Dovetail guide with rack and pinion drive for adjusting the microscope head to alter focus
• Standard magnification 30x (lens 2x, eyepiece 15x)
• Test item displayed without inversion
• Backlighting, incident lighting and ring lamp
• Replaceable crosshair graticule built into the eyepiece
• Additional graticules (e.g. for determining radii or for thread measurement) are available on request
• Angle measuring device, can be rotated through 360°, Vernier scale 6 minutes
• Supplied with 2x lens, 15x eyepiece, graticule with crosshair,
  measuring table with digital built-in micrometer no. 505404 0001, LED backlighting and LED incident lighting, LED ring lamp with holding fixture adapter, 2 spare bulbs (24 V),
  spare fuse (0.5 A), covering hood, power supply for connection to 230 V / 50 Hz,
  Operating manual, shipped in disposable packaging

All-in-one device

• Microscope TM 505/510
• 2x lens, 15x eyepiece
• Graticule with crosshair
• 2 digital built-in micrometers
• Ring lamp with holding fixture adapter
