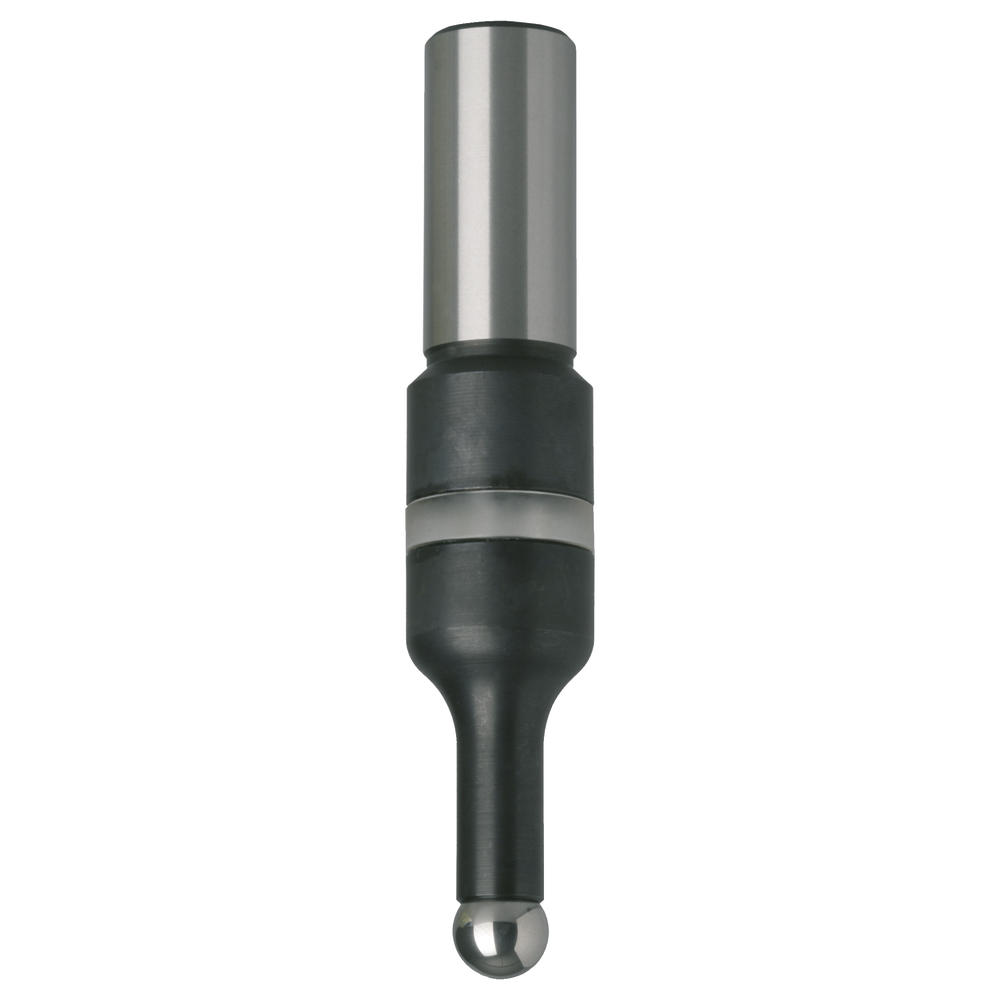

Edge probe 2-D, 10mm, shank 16mm, L=99mm

Edge probe 2-D, 10mm, shank 16mm, L=99mm
Edge probe 2-D, 10mm, shank 16mm, L=99mm Edge probe 2-D, 10mm, shank 16mm, L=99mm
Price:
172,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Edge finder with illuminated display
  • For positioning reference points on metallic workpieces
  • Two-axis and three-axis measurements available
  • Can also be used to determine the centre or diameter of a bore
  • The distance from the spindle centre to the contact surface is 5.00 mm
  • Can only be used on electrically conductive materials
  • True-running accuracy ± 0.01 mm
  • Hardened steel body with ground functional surfaces
  • LED indicator lamps with good all-round visibility
  • Supplied with batteries

Straight shank, 2D and 3D
  • Incl. 1x 23A battery, no. 548079 4223

Edge finder with illuminated display
  • For positioning reference points on metallic workpieces
  • Two-axis and three-axis measurements available
  • Can also be used to determine the centre or diameter of a bore
  • The distance from the spindle centre to the contact surface is 5.00 mm
  • Can only be used on electrically conductive materials
  • True-running accuracy ± 0.01 mm
  • Hardened steel body with ground functional surfaces
  • LED indicator lamps with good all-round visibility
  • Supplied with batteries

Straight shank, 2D and 3D
  • Incl. 1x 23A battery, no. 548079 4223

Article no./ATORN no.
5580621016
Packaging unit
1
Catalogue page
KS-1484

Technical characteristics

Ball diameter 10 mm
Clamp in shank diameter 16 mm
Clamping shank 16 mm
Design 2D version
Design 2D version
L 99 mm
Sensor ball Ø 10 mm
Total length 99 mm
