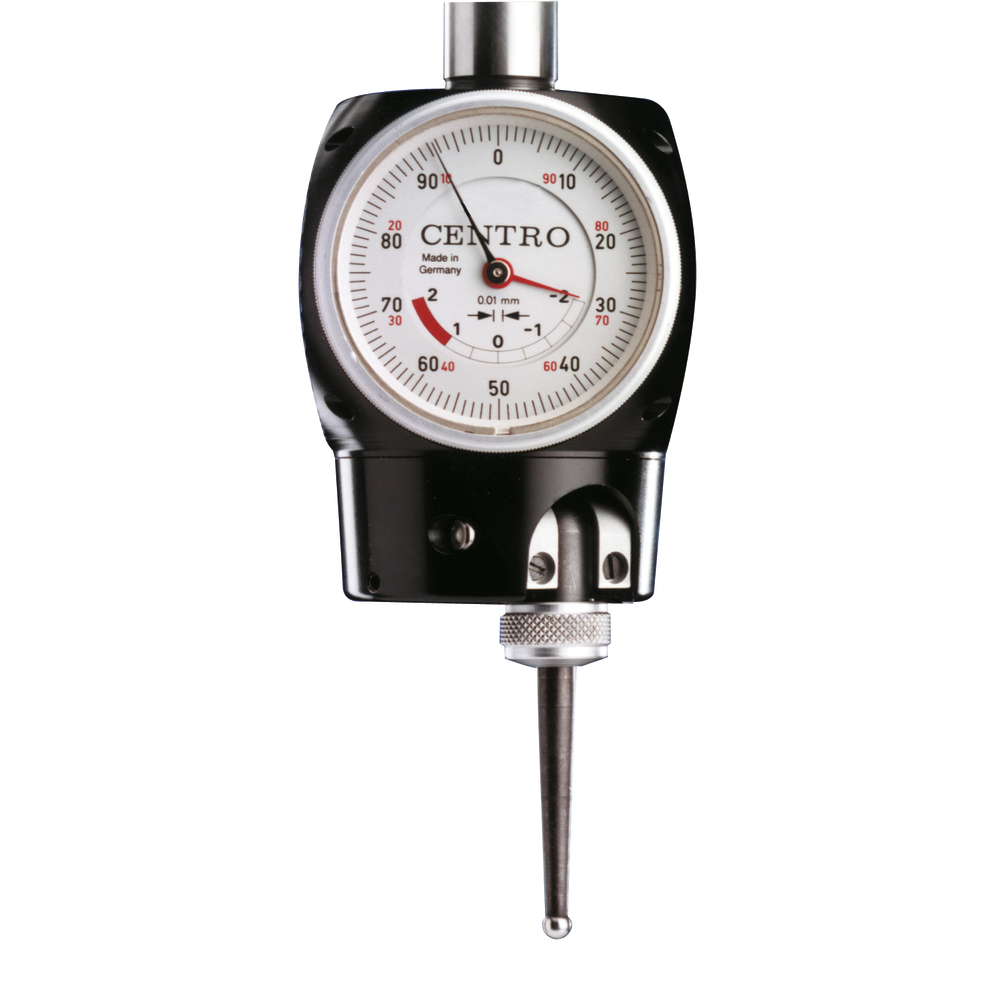

Precision centring device Centro

• For aligning workpieces on machine tools with vertically or horizontally rotating spindles
• Non-rotating, easily readable dial indicator
• Robust metal casing
• Large display range
• Straight clamping shank, Ø 16 mm
• With stanchion to hold the dial indicator in the desired position
• Centring accuracy: 0.003 mm
  Casing Ø: 80 mm
  Clamping shank: Ø 16 mm x 48 mm
  Dial indicator Ø: 60 mm
  Length (without clamping shank): 92 mm
  Max. Speed: 150 rpm
  Bore measurement range: Ø 6 - 125 mm
  Shaft measurement range: Ø 0 - 125 mm with bent probe tip
• Base unit supplied with Ø 5 mm straight probe insert and telescopic rod featuring an articulated base, in moulded packaging
