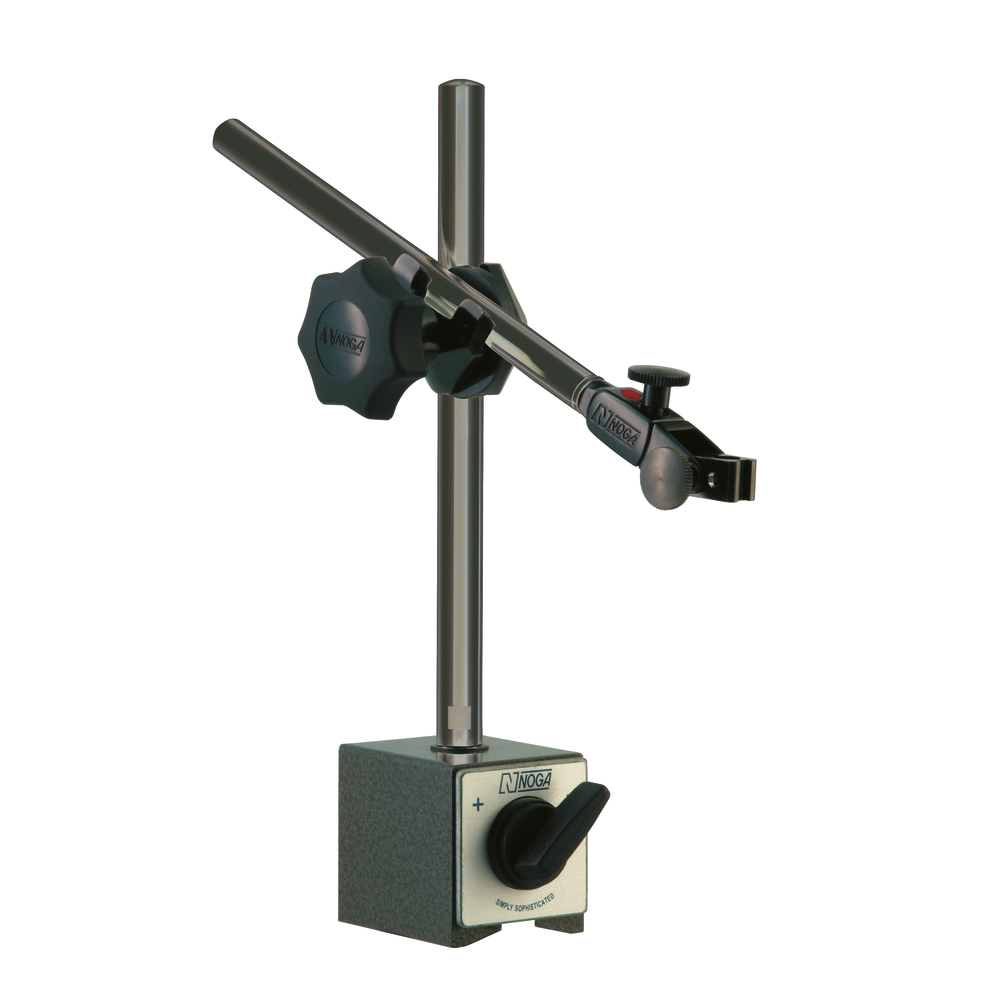

Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036

Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036
Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036 Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036 Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036 Magnetic measuring stand PH6400, ext. M8 with magnetic base DG0036
Price:
102,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Fine adjustment on the measuring instrument holding fixture
Magnetic measuring stands PH
  • For quick and precise positioning of dial indicators
  • Improved fine adjustment on the magnetic base
  • Strong, switchable magnetic base
  • Universal holding fixture for common dial indicators
  • Robust arm mechanism with three-point system
  • Measuring instrument holding fixture: Ø 8 mm, 6 mm, 3/8 inch and dovetail

Fine adjustment on the measuring instrument holding fixture
Article no./ATORN no.
5501106400
Vendor Article no.
PH6400
Packaging unit
1
Catalogue page
KS-1465

Technical characteristics

Adherence strength 800
Arm length 185 mm
D 12 mm
D1 14 mm
D2 12 mm
Foot size 60 x 50 x 55 mm
Height 203 mm
L1 203 mm
L2 185 mm
Magnetic foot L x W x H 60 x 50 x 55 mm
Magnetic foot thread M 8
model PH 6400
model PH 6400
Pillar diameter 14 mm
Retaining force 800 N
Thread dimension M8
