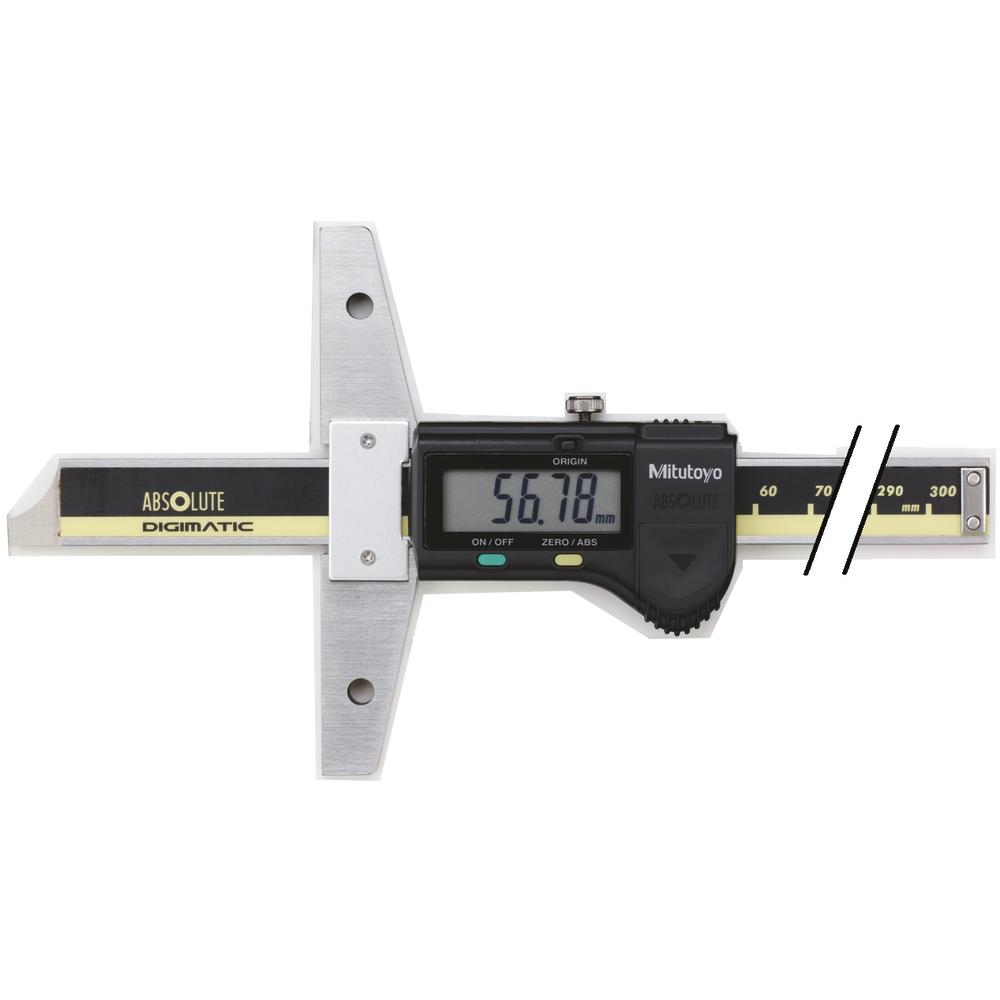

Sliding depth gauge, digital 300mm (0,01mm)

Sliding depth gauge, digital 300mm (0,01mm)
Sliding depth gauge, digital 300mm (0,01mm) Sliding depth gauge, digital 300mm (0,01mm)
Price:
389,00 €
(486,00 € catalogue price / 20% saved)
valid until: 31.05.2024
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Digital sliding depth gauge
  • ABSOLUTE scale
  • Capacitive measuring system with dirt wiper in the slider
  • LCD display with 9 mm high digits
  • Battery life: 20,000 hrs.
  • Up to size 0300: Measuring bridge with bores for attaching larger additional bridges
  • Functions: ON/OFF, zero point at battery change (ORIGIN), (ZERO/ABS), battery check
  • Supplied with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0022 (2 m), USB cable type C-USB, no. 563110 0003

Digital sliding depth gauge
  • ABSOLUTE scale
  • Capacitive measuring system with dirt wiper in the slider
  • LCD display with 9 mm high digits
  • Battery life: 20,000 hrs.
  • Up to size 0300: Measuring bridge with bores for attaching larger additional bridges
  • Functions: ON/OFF, zero point at battery change (ORIGIN), (ZERO/ABS), battery check
  • Supplied with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0022 (2 m), USB cable type C-USB, no. 563110 0003

Article no./ATORN no.
5016010301
Vendor Article no.
571-203-30
Packaging unit
1
Catalogue page
KS-1356

Technical characteristics

Additional base possible Yes
Additional base possible Yes
Base length 100 mm
Bridge length x bridge width 100x6 mm
Data transmission type DIGIMATIC/USB
Digit increment 0,01 mm
DIN 862
Error limit 0,04 mm
Error limit 0,04 mm
Functions Absolute function
Included in delivery Sturdy box
Material property Stainless steel/All parts hardened
Max. length measuring range 300 mm
Measurement range 300 mm
Measurement system ABSOLUTE
Packaging / Shipment Sturdy box
Reading 0.01 mm readings
Standard constructional dimensions DIN DIN 862
