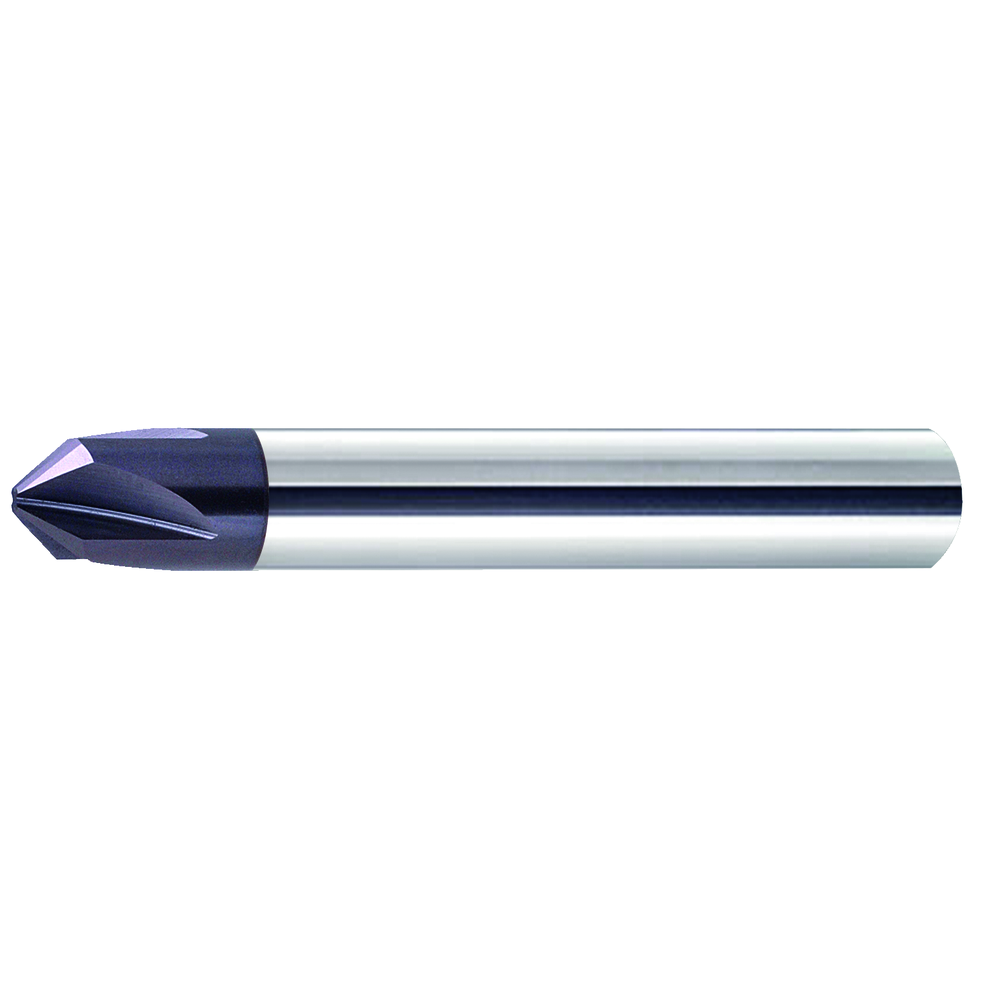

Deburring tool SC 90° sim. to DIN6527 6 mm Z=4 HA TiAlN

Price:
20,00 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 19:30 - delivered tomorrow.

Basic Line deburring tool
  • 4 cutting edges
  • Factory standard
  • Cutting material: superfine grain solid carbide

Article no./ATORN no.
2515558060
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Angle of the tip - S 90 °
Application direction milling Lining
Coating TiAlN
Cutting material Solid carbide
D 6,0 mm
D1 6,0 mm
Drill diameter 1,2 mm
Feed for side milling fz steel < 1000 mm² 0,030 mm/tooth
L 57 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Type N
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
