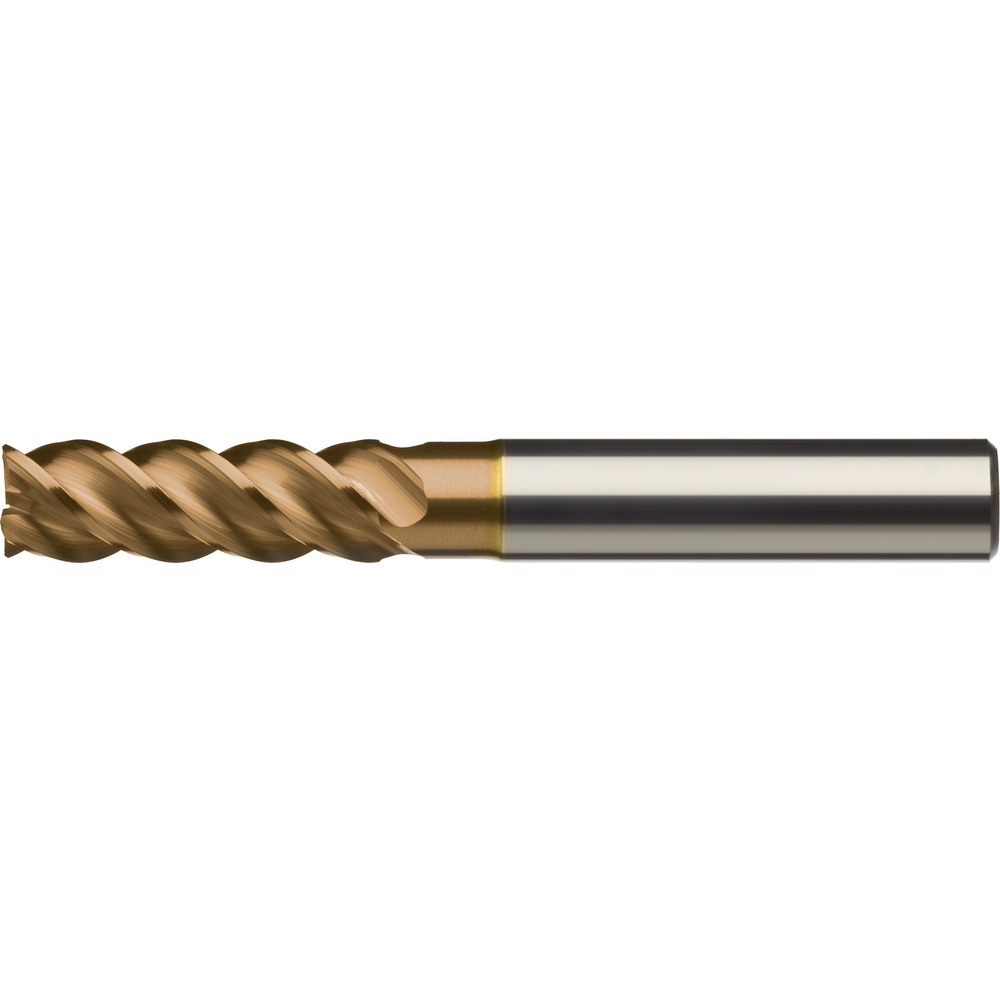

SC Al end mill. cutter HPC 35/38° 4mm Z=4 long HA edge prot. cham. ZrCN Ultra-N

SC Al end mill. cutter HPC 35/38° 4mm Z=4 long HA edge prot. cham. ZrCN Ultra-N
SC Al end mill. cutter HPC 35/38° 4mm Z=4 long HA edge prot. cham. ZrCN Ultra-N SC Al end mill. cutter HPC 35/38° 4mm Z=4 long HA edge prot. cham. ZrCN Ultra-N
Price:
69,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N end milling cutter
  • With clearance
  • 4 cutting edges, with edge protection F
  • With defined cutting edge rounding
  • For non-ferrous materials
  • Irregular helix angle for vibration-free milling
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N-coated

Long
Article no./ATORN no.
2494900040 / 11263530
Packaging unit
1
Catalogue page
KS-0462
Cutting values
SW-0762

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating ZrCN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 4 mm
D1 6 mm
D3 3,8 mm
Durchmesser max. 16 mm
Durchmesser min. 4 mm
Durchmesser min./max. 4-16 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,1 mm
Feed for grooving fz aluminium < 8 % Si 0,029 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,033 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 22 mm
fz ALU 0,05 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
L 62 mm
L1 16 mm
L2 22 mm
Oberfläche ULTRA N
Rake angle 18 °
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 35° | 38°
Type W
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
