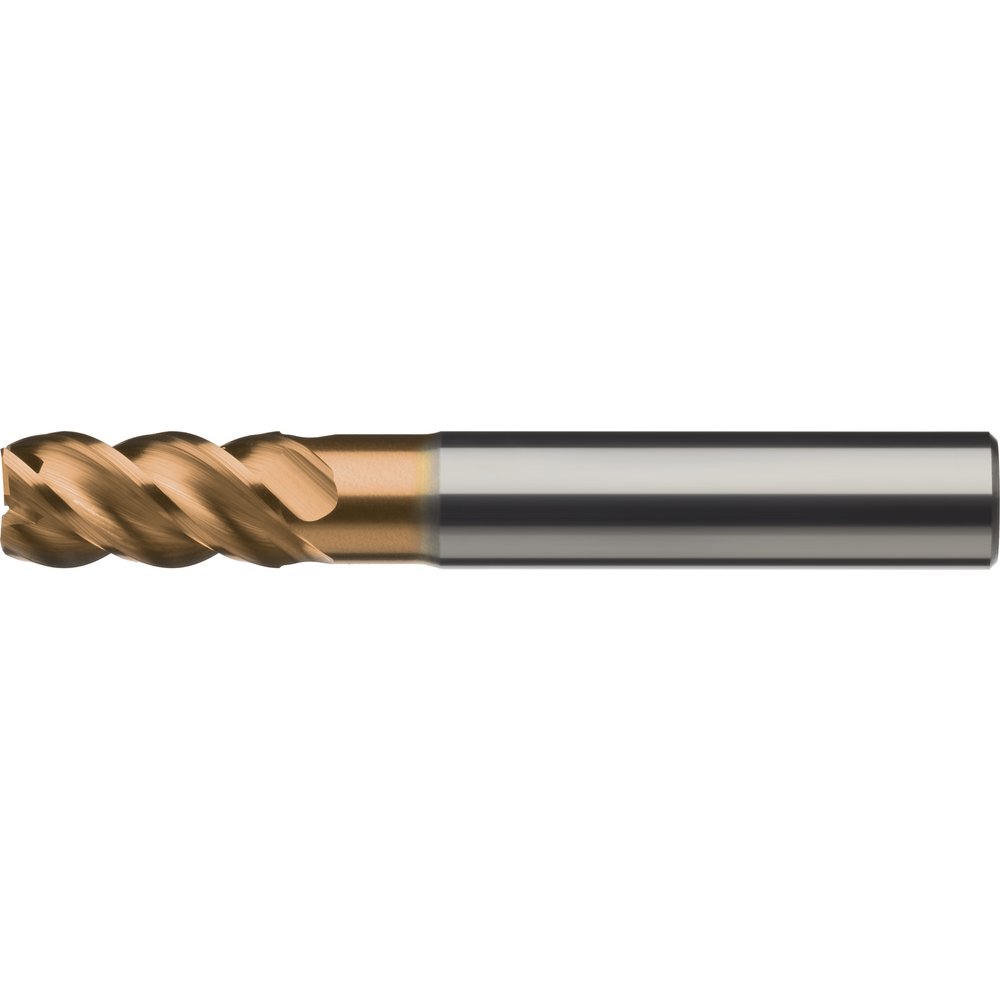

SC Al end milling cutter 3mm L2=10mm Z=4 short HA edge prot. cham. ZrCN Ultra-N

SC Al end milling cutter 3mm L2=10mm Z=4 short HA edge prot. cham. ZrCN Ultra-N
SC Al end milling cutter 3mm L2=10mm Z=4 short HA edge prot. cham. ZrCN Ultra-N SC Al end milling cutter 3mm L2=10mm Z=4 short HA edge prot. cham. ZrCN Ultra-N
Price:
52,90 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N end milling cutter
  • With clearance
  • 4 cutting edges, with edge protection F
  • With defined cutting edge rounding
  • For non-ferrous materials
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N-coated

Short
Article no./ATORN no.
2494000030 / 11263430
Packaging unit
1
Catalogue page
KS-0463
Cutting values
SW-0760

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating ZrCN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,8 mm
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Edge protection for chamfer angle 45° °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,1 mm
Feed for grooving fz aluminium < 8 % Si 0,021 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,030 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 10 mm
fz ALU 0,04 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
L 57 mm
L1 6 mm
L2 10 mm
Oberfläche ULTRA N
Rake angle 18 °
Schnittgeschwindigkeit (Kunststoff ) Vc 350 m/min
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 45°
Type W
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
