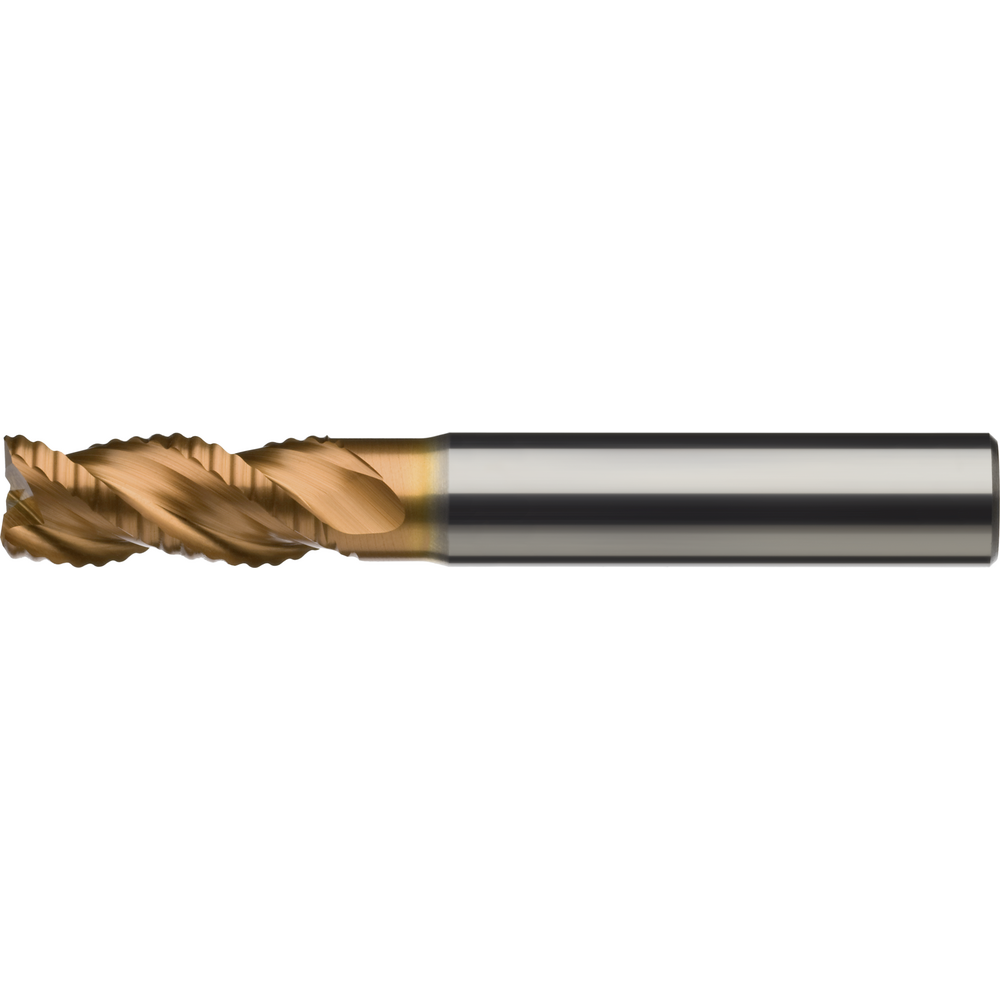

SC Al roughing cutter 6mm L2=18mm Z=3 HA, edge prot. cham., ZrCN Ultra-N

SC Al roughing cutter 6mm L2=18mm Z=3 HA, edge prot. cham., ZrCN Ultra-N
SC Al roughing cutter 6mm L2=18mm Z=3 HA, edge prot. cham., ZrCN Ultra-N SC Al roughing cutter 6mm L2=18mm Z=3 HA, edge prot. cham., ZrCN Ultra-N
Price:
56,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Ultra-N roughing cutter
  • With clearance
  • 3 cutting edges, with edge protection F
  • With defined cutting edge rounding
  • For non-ferrous materials
  • Cutting material: superfine grain solid carbide, ZrCN Ultra-N-coated
  • 249372.... with internal cooling

Standard
Article no./ATORN no.
2493700060 / 11263370
Packaging unit
1
Catalogue page
KS-0466
Cutting values
SW-0763

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating ZrCN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,6 mm
Design HA parallel shank
Durchmesser max. 20 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-20 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
F x 45° 0,4 mm
Feed for grooving fz aluminium < 8 % Si 0,039 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,055 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 18 mm
fz ALU 0,086 mm
L 57 mm
L1 13 mm
L2 18 mm
Oberfläche ULTRA N
Rake angle 9 °
Suitable for material group H 3
Suitable for material group K 3
Suitable for material group M 3
Suitable for material group N 1
Suitable for material group P 3
Suitable for material group S 3
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 40°
Type WF
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
