CNC stor. unit tall cabinet 02.295.00A VDI30 WxDxH: 1000x500x1950mm RAL7035/5012

Price:
1.664,81 €
prices excl. vat plus shipping costs

Stock status
Directly from the manufacturer
CNC storage systems
  • Optimum use of space thanks to individually adjustable plastic inserts
  • Functional modular system
  • Housing made from fine quality sheet metal, 1 mm thick; top and shelves 1.75 mm thick
  • Anti-theft central locking mechanism
  • Also available with other tool inserts (CAPTO, MT etc.) on request
  • Unless otherwise instructed, we supply the colour RAL 7035/5012 (light blue/light grey)
  • The standard colours shown below are available at no extra cost
  • Free kerbside delivery within Germany, fully assembled, incl. packaging

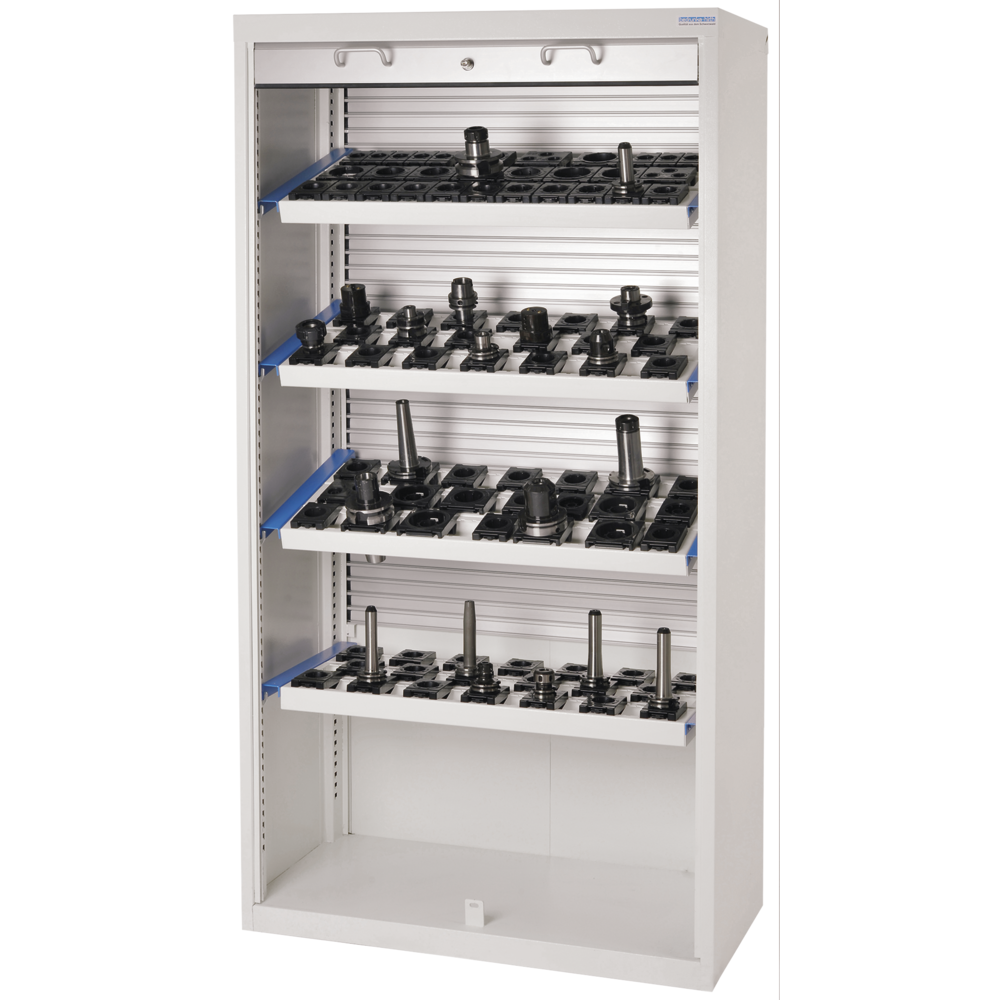

CNC magazine high cabinet with plastic roller shutters
Article no./ATORN no.
8004000030
Vendor Article no.
02.295.00A RAL7035/5012 VDI30
Packaging unit
1
Catalogue page

Technical characteristics

Depth 500 mm
for tool holder VDI 30
Height 1.950 mm
model T500 R 36-16
Number inserts incl. 80 (max. 192 possible)
Weight 168 kg
Width 1.000 mm
