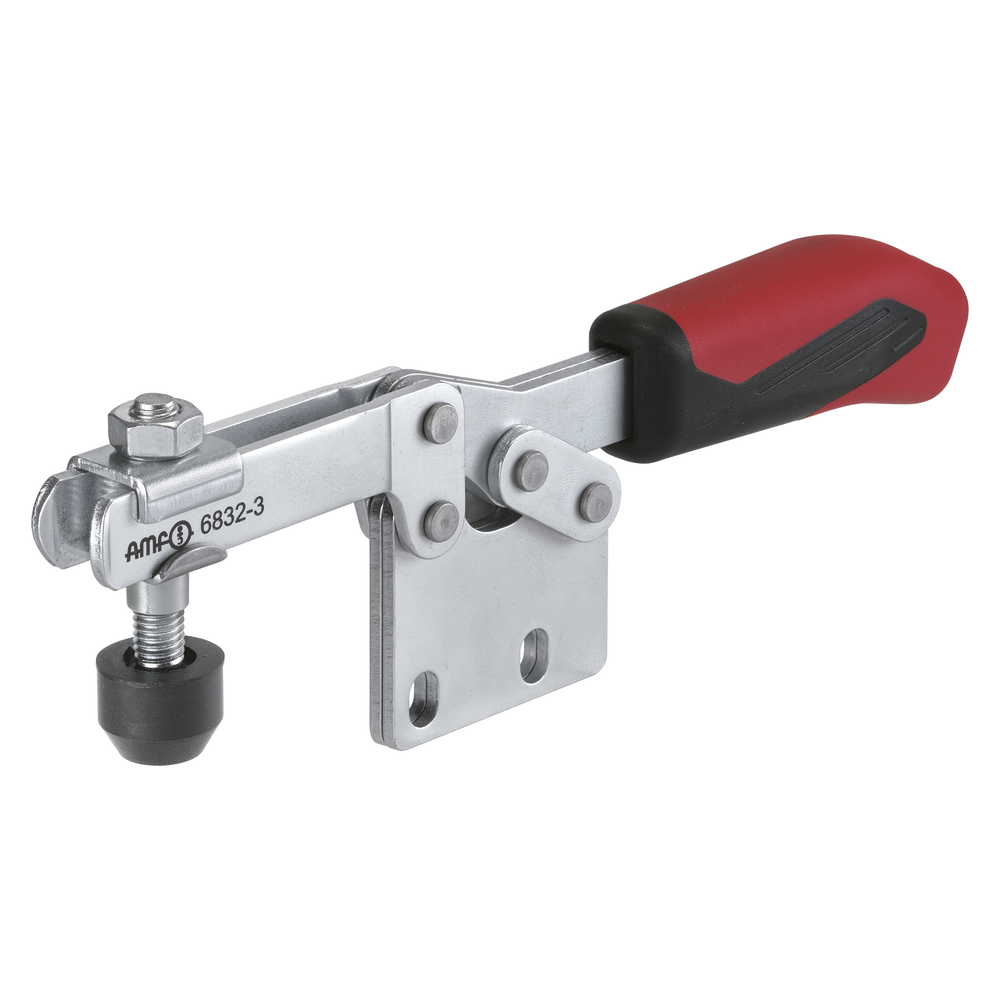

Horizontal clamp, model 0 with open supporting arm and vertical base

Horizontal clamp, model 0 with open supporting arm and vertical base
Horizontal clamp, model 0 with open supporting arm and vertical base Horizontal clamp, model 0 with open supporting arm and vertical base
Price:
20,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Horizontal clamp
  • Quick-action clamp with toggle mechanism
  • Wide and quick clamp opening, complete workpiece exposure
  • High final transmission with low force application, large clamping forces
  • Self-locking mechanism prevents the clamp from opening due to machining forces
  • Use: Drilling, welding, bending, grinding, testing and assembling
  • Galvanised and passivated, case-hardened with greased bearing bushes
  • Rivet made of stainless steel
  • Complete with hardened, tempered and galvanised clamping screw
  • Stainless steel version available on request

With open supporting arm and vertical base
Horizontal clamp
  • Quick-action clamp with toggle mechanism
  • Wide and quick clamp opening, complete workpiece exposure
  • High final transmission with low force application, large clamping forces
  • Self-locking mechanism prevents the clamp from opening due to machining forces
  • Use: Drilling, welding, bending, grinding, testing and assembling
  • Galvanised and passivated, case-hardened with greased bearing bushes
  • Rivet made of stainless steel
  • Complete with hardened, tempered and galvanised clamping screw
  • Stainless steel version available on request

With open supporting arm and vertical base
Article no./ATORN no.
4670170000
Vendor Article no.
93203
Packaging unit
1
Catalogue page

Technical characteristics

A 4 mm
A 4 mm
B 26 mm
B 26 mm
F1 0,3 kN
F1 0,3 kN
F2 0,4 kN
F2 0,4 kN
H 24 mm
H 24 mm
h1 33 mm
h1 33 mm
HW 0 to 7 mm
HW 0 to 7 mm
L1 79 mm
L1 79 mm
model 0
model 0
Screw M 4 x 25
Screw M 4 x 25
