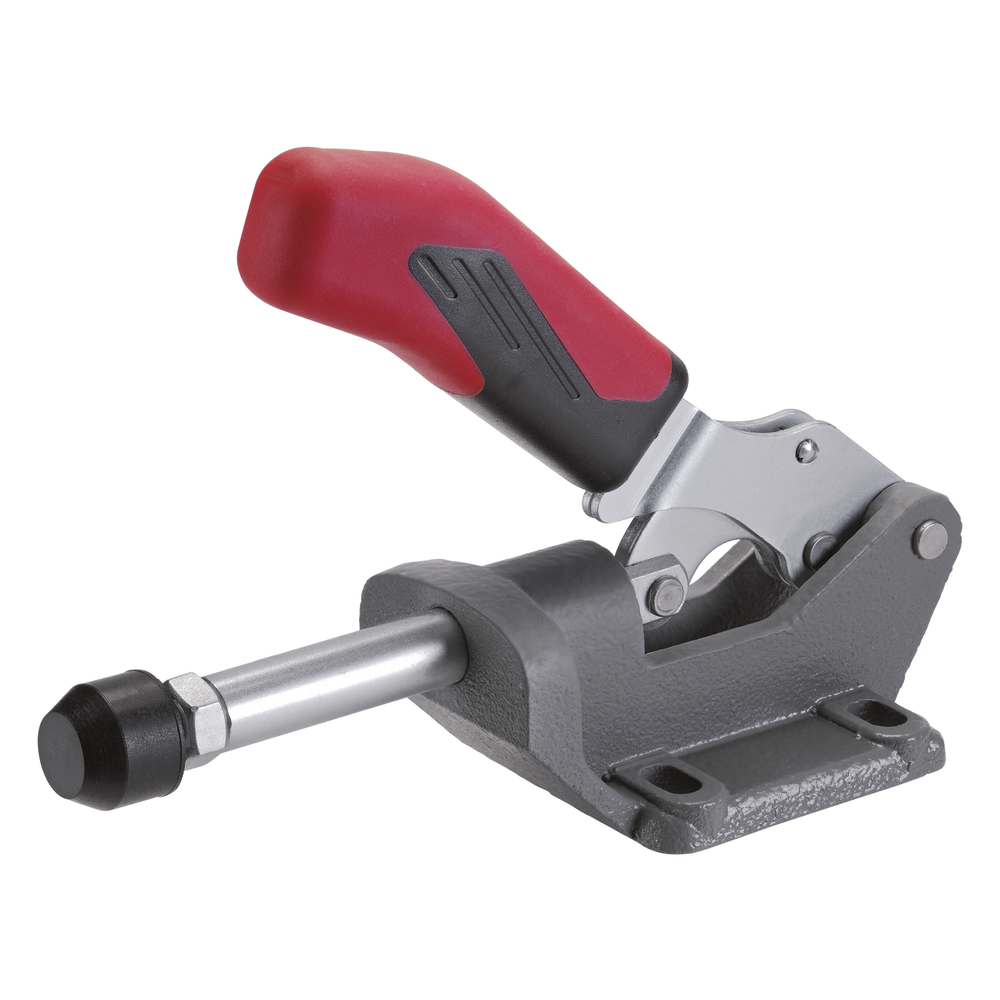

Push-rod clamp, model 3 heavy-duty version

Push-rod clamp, model 3 heavy-duty version
Push-rod clamp, model 3 heavy-duty version Push-rod clamp, model 3 heavy-duty version
Price:
71,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Push-rod clamp
  • Galvanised and passivated
  • Case-hardened, with greased bearing bushes
  • Stainless steel rivet
  • Complete with hardened, tempered and galvanised clamping screw
  • Stainless steel version available on request

Heavy-duty version
  • Base body made from cast steel, lever parts and push rod made from tempering steel

Push-rod clamp
  • Galvanised and passivated
  • Case-hardened, with greased bearing bushes
  • Stainless steel rivet
  • Complete with hardened, tempered and galvanised clamping screw
  • Stainless steel version available on request

Heavy-duty version
  • Base body made from cast steel, lever parts and push rod made from tempering steel

Article no./ATORN no.
4670270003
Vendor Article no.
94235
Packaging unit
1
Catalogue page
KS-1318

Technical characteristics

A 12 mm
A 12 mm
B 40 - 72 mm
B 40 - 72 mm
F1 4 kN
F1 4 kN
F2 4 kN
F2 4 kN
H 30 mm
H 30 mm
h1 116 mm
h1 116 mm
HW 22 to 35 mm
HW 22 to 35 mm
L1 139 mm
L1 139 mm
model 3
model 3
Screw M 8 x 35
Screw M 8 x 35
