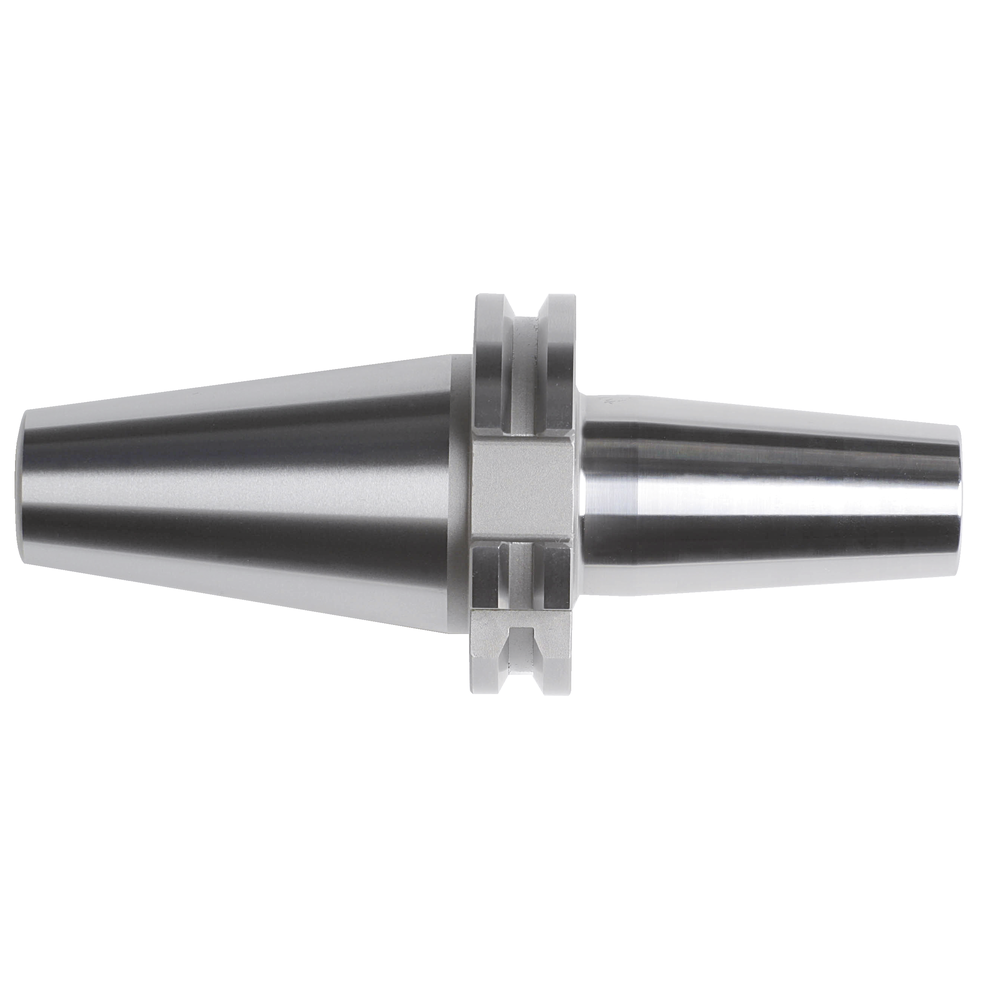

Shrink fit holder DIN69871AD SK40, 3mm A=80mm

Shrink fit holder DIN69871AD SK40, 3mm A=80mm
Shrink fit holder DIN69871AD SK40, 3mm A=80mm Shrink fit holder DIN69871AD SK40, 3mm A=80mm Shrink fit holder DIN69871AD SK40, 3mm A=80mm
Price:
166,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
ThermoGrip® shrink fit holder
  • Straight shank milling tools clamped with a high level of precision
  • Tool shanks in accordance with DIN 6335 type HA, HB and HE. Tool shanks in accordance with DIN 1835 type A and B with shank tolerance h6 and Ra < 0.3
  • Patented counterbore from Ø 6 mm for an automatic shrink-fit process

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply
  • Balanced at 18,000 rpm

ThermoGrip® shrink fit holder
  • Straight shank milling tools clamped with a high level of precision
  • Tool shanks in accordance with DIN 6335 type HA, HB and HE. Tool shanks in accordance with DIN 1835 type A and B with shank tolerance h6 and Ra < 0.3
  • Patented counterbore from Ø 6 mm for an automatic shrink-fit process

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply
  • Balanced at 18,000 rpm

Article no./ATORN no.
4302164003
Vendor Article no.
72.060.500.010
Packaging unit
1
Catalogue page
KS-1236

Technical characteristics

A 80 mm
A 80 mm
Clamp Ø 3 mm
Clamp Ø 3 mm
D2 15 mm
D2 15 mm
D3 20 mm
D3 20 mm
L1 20 mm
L1 20 mm
Shank SK 40
Shank SK 40
Thread M6
Thread M6
V 5 mm
V 5 mm
