Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000

Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000
Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. DIN69893HSK-A100, 16 mm A=50 mm KKB G2.5 25,000
Special offer:
69,60 €
(170,50 € catalogue price / 59% saved)
prices excl. vat plus shipping costs

Stock status
Only 4 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

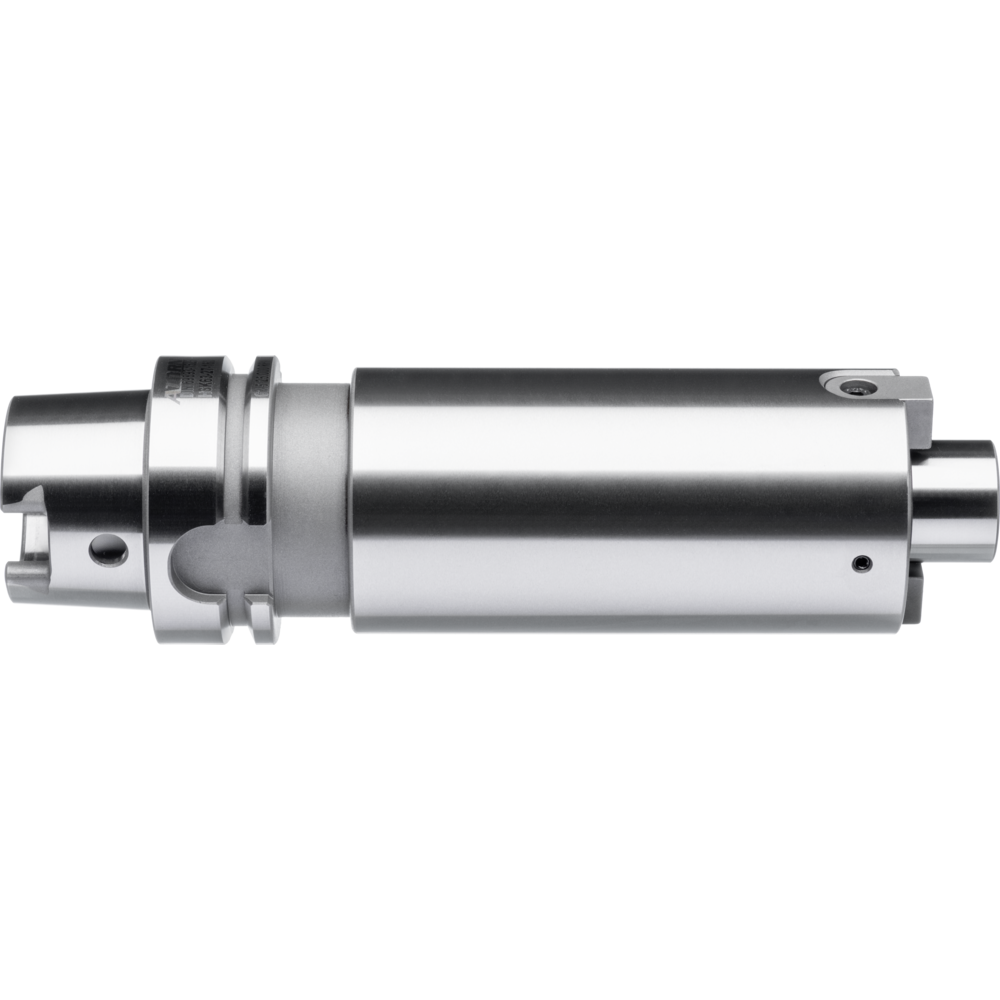

Shell-type milling cutter arbour with transverse slot
  • with enlarged collar diameter and coolant mounts
  • pre-balanced G 2.5 / 25,000 rpm
  • alloyed case-hardened steel, tensile strength at core min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • max. True running accuracy < 0.005mm
  • Supplied with carrier blocks and milling cutter retaining screw
  • Additional shank designs and AD/AF version available on request

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
  • *= Also with four DIN 2079-compliant threaded bores for holding cutter heads

Shell-type milling cutter arbour with transverse slot
  • with enlarged collar diameter and coolant mounts
  • pre-balanced G 2.5 / 25,000 rpm
  • alloyed case-hardened steel, tensile strength at core min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • max. True running accuracy < 0.005mm
  • Supplied with carrier blocks and milling cutter retaining screw
  • Additional shank designs and AD/AF version available on request

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
  • *= Also with four DIN 2079-compliant threaded bores for holding cutter heads

Article no./ATORN no.
4353091016 / 22660762
Packaging unit
1
Catalogue page
KS-1215

Technical characteristics

A 50 mm
A 50 mm
Aussendurchmesser 38 mm
D 38 mm
D 16 mm
D 16 mm
D 38 mm
DIN DIN 6357
DIN DIN 6357
Form A
L2 17 mm
L2 17 mm
Standard constructional dimensions DIN DIN 6357
Standard constructional dimensions DIN DIN 6357
Taper type HSK 100
Taper type HSK 100
Werkzeugaufnahme HSK 100
Wuchtgüte G 2,5 bei 25000 1/min
