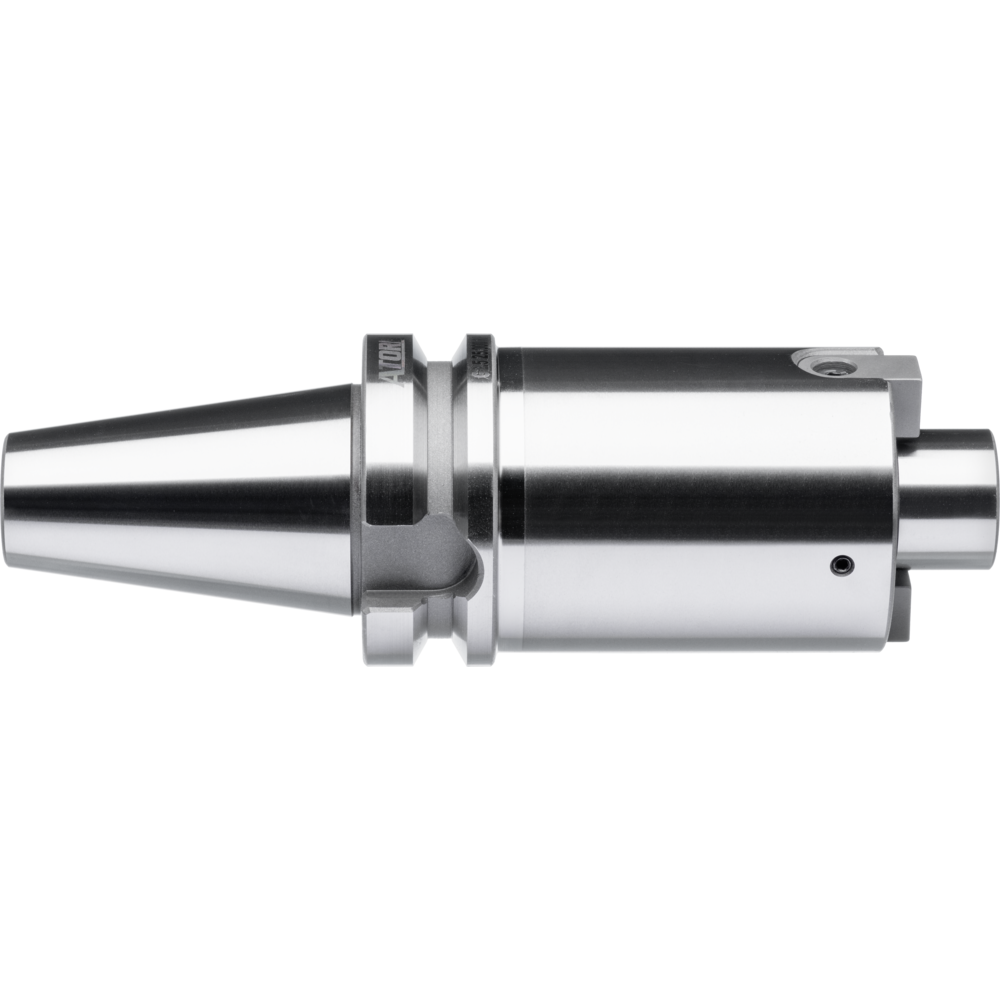

Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000

Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000
Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000 Tran. slot shell mil. cut. arb. MAS403AD BT40, 16 mm A=100 mm KKB G2.5 25,000
Price
77,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Shell-type milling cutter arbour with transverse slot
  • with enlarged collar diameter and coolant mounts
  • pre-balanced G 2.5 / 25,000 rpm
  • alloyed case-hardened steel, tensile strength at core min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • max. True running accuracy < 0.005mm
  • Supplied with carrier blocks and milling cutter retaining screw
  • Additional shank designs and AD/AF version available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
  • Internal coolant supply
  • *= Also with four DIN 2079-compliant threaded bores for holding cutter heads

Article no./ATORN no.
4353074116 / 22660836
Packaging unit
1
Catalogue page
KS-1220

Technical characteristics

A 100 mm
Aussendurchmesser 38 mm
D 38 mm
D 16 mm
DIN DIN 6357
Form AD
ISO 7388-2
L2 17 mm
Länge 17 mm
Shank BT 40
Standard constructional dimensions DIN DIN 6357
Taper type BT 40
Werkzeugaufnahme BT 40
Wuchtgüte G 2,5 bei 25000 1/min
