Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000

Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000
Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000 Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000 Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000 Quernut-Aufsteckfräsdorn MAS403AD BT30, 16mm A=40mm, mit KKB, G2,5 25.000
Price:
67,70 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

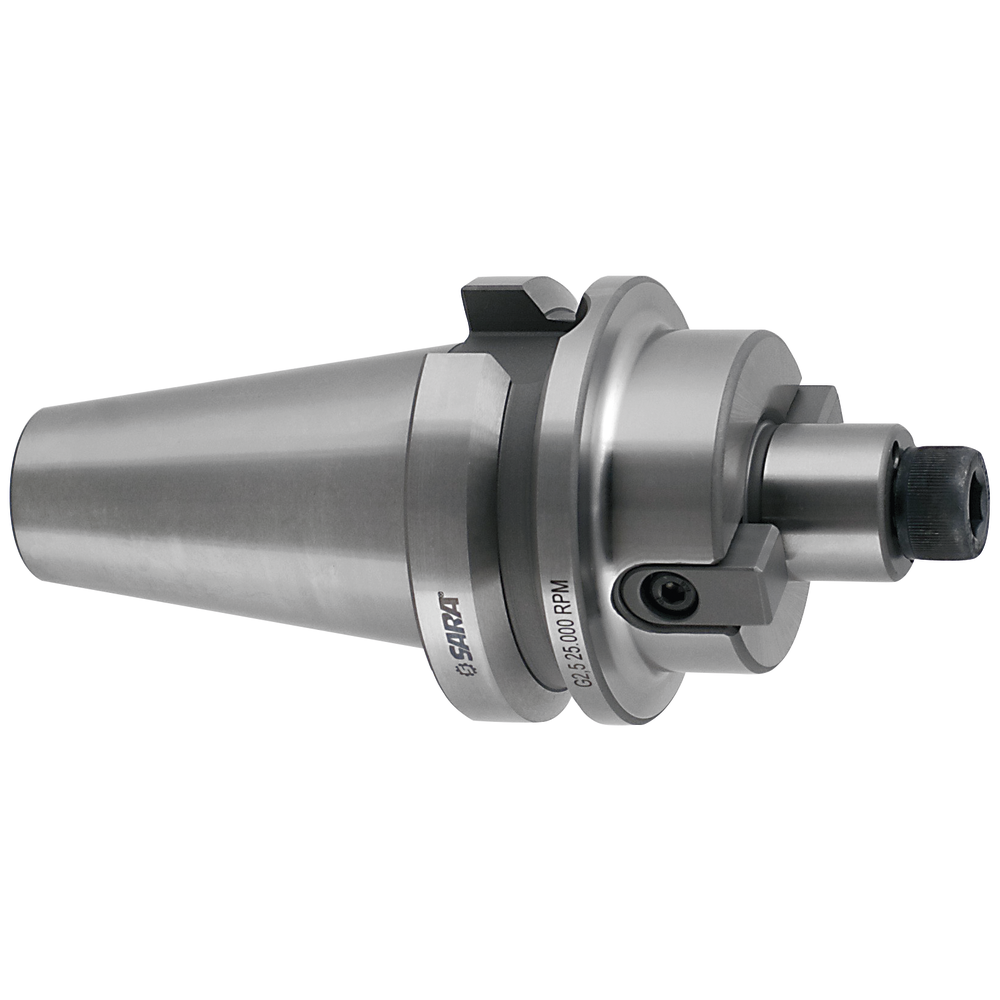

Shell-type milling cutter arbour with transverse slot
  • with enlarged collar diameter and coolant mounts
  • pre-balanced G 2.5 / 25,000 rpm
  • alloyed case-hardened steel, tensile strength at core min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • max. True running accuracy < 0.005mm
  • Supplied with carrier blocks and milling cutter retaining screw
  • Additional shank designs and AD/AF version available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
  • Internal coolant supply
  • *= Also with four DIN 2079-compliant threaded bores for holding cutter heads

Shell-type milling cutter arbour with transverse slot
  • with enlarged collar diameter and coolant mounts
  • pre-balanced G 2.5 / 25,000 rpm
  • alloyed case-hardened steel, tensile strength at core min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • max. True running accuracy < 0.005mm
  • Supplied with carrier blocks and milling cutter retaining screw
  • Additional shank designs and AD/AF version available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
  • Internal coolant supply
  • *= Also with four DIN 2079-compliant threaded bores for holding cutter heads

Article no./ATORN no.
4353073016
Packaging unit
1
Catalogue page
