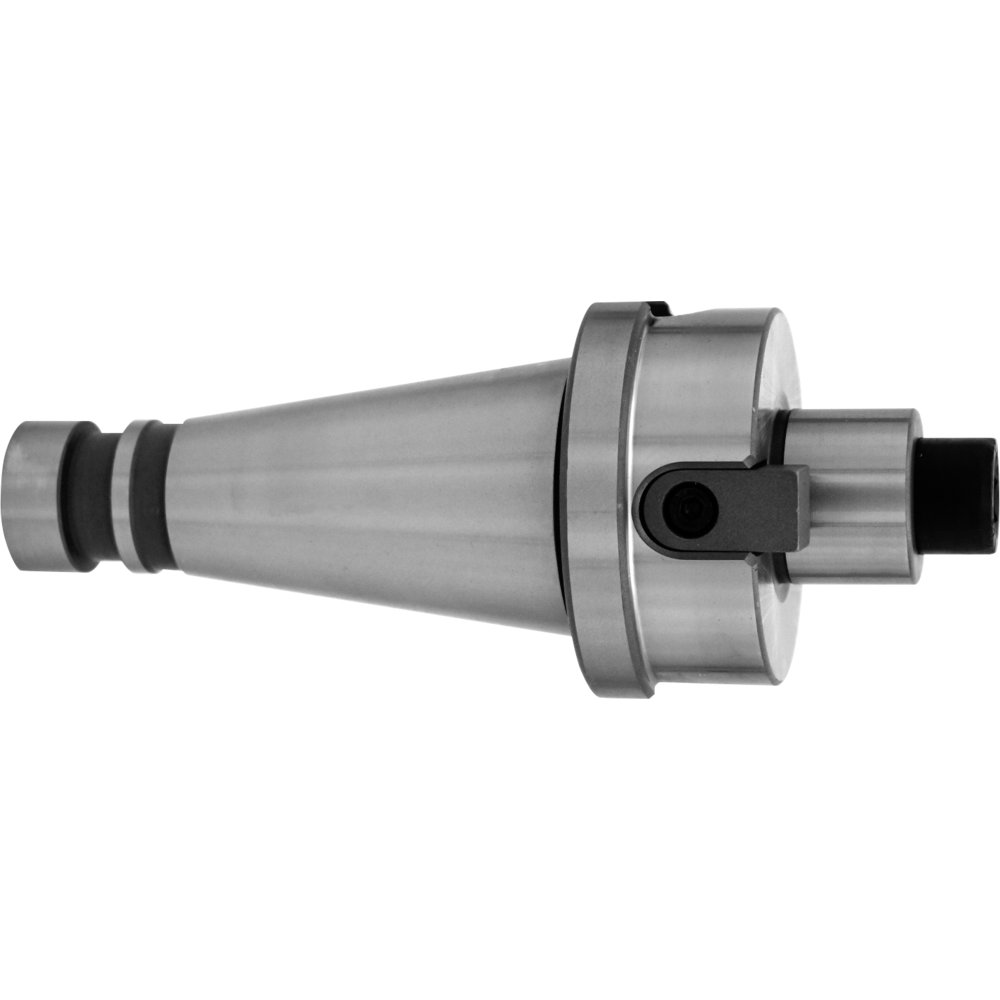

Shell-type milling cutter arbour with transverse slot

• with enlarged collar diameter and coolant mounts
• pre-balanced G 2.5 / 25,000 rpm
• alloyed case-hardened steel, tensile strength at core min. 950 N/mm²
• case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8mm ± 0.2mm
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
• max. True running accuracy < 0.005mm
• Supplied with carrier blocks and milling cutter retaining screw
• Additional shank designs and AD/AF version available on request

DIN 2080

• *= Also with four DIN 2079-compliant threaded bores for holding cutter heads
