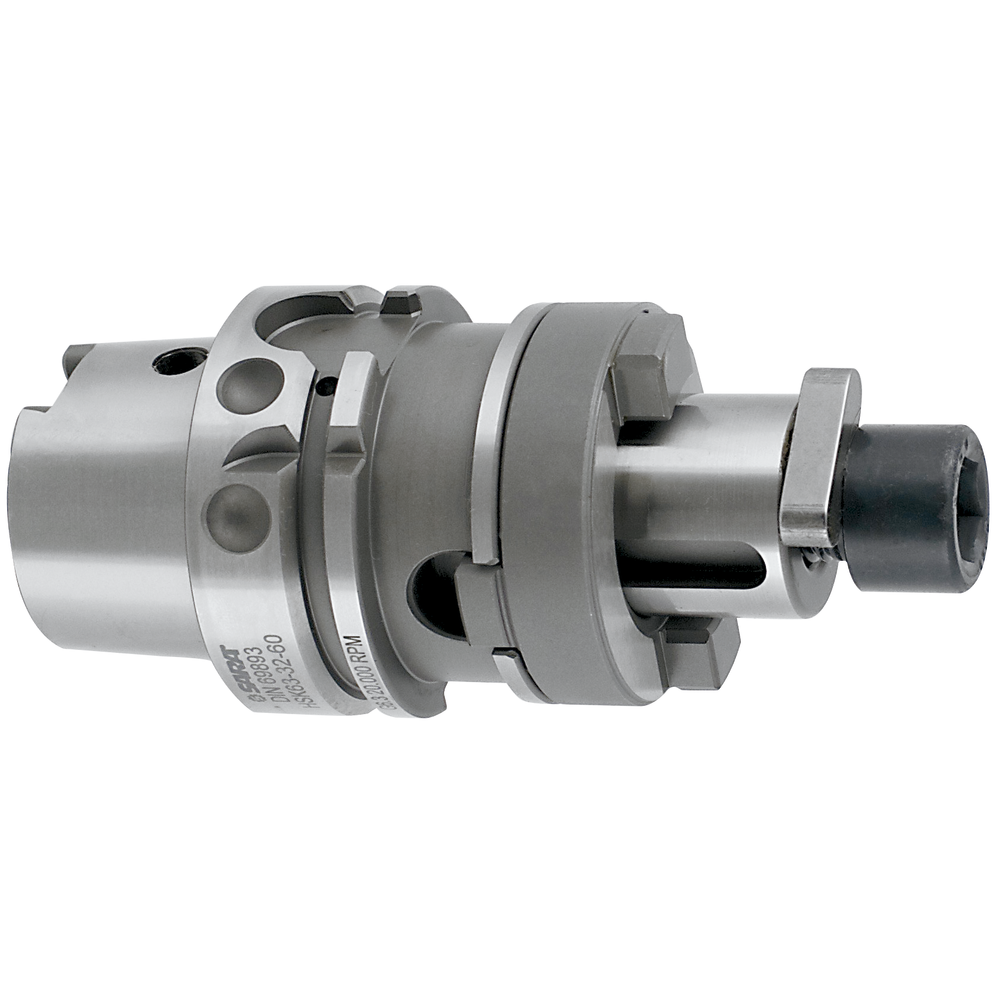

Combination shell-type milling cutter arbour

• For milling cutters with longitudinal or transverse slots
• Pre-balanced to G 2.5 / 25,000 rpm
• Alloyed case-hardened steel, core tensile strength min. 950 N/mm²
• Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
• Max. true running accuracy < 0.005 mm
• Delivery incl. fitting key, follower ring and tightening bolt without coolant bore
• Additional shank designs and AD/B versions available on request

DIN 69893 type A (HSK-A)

• Internal coolant supply
• When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
