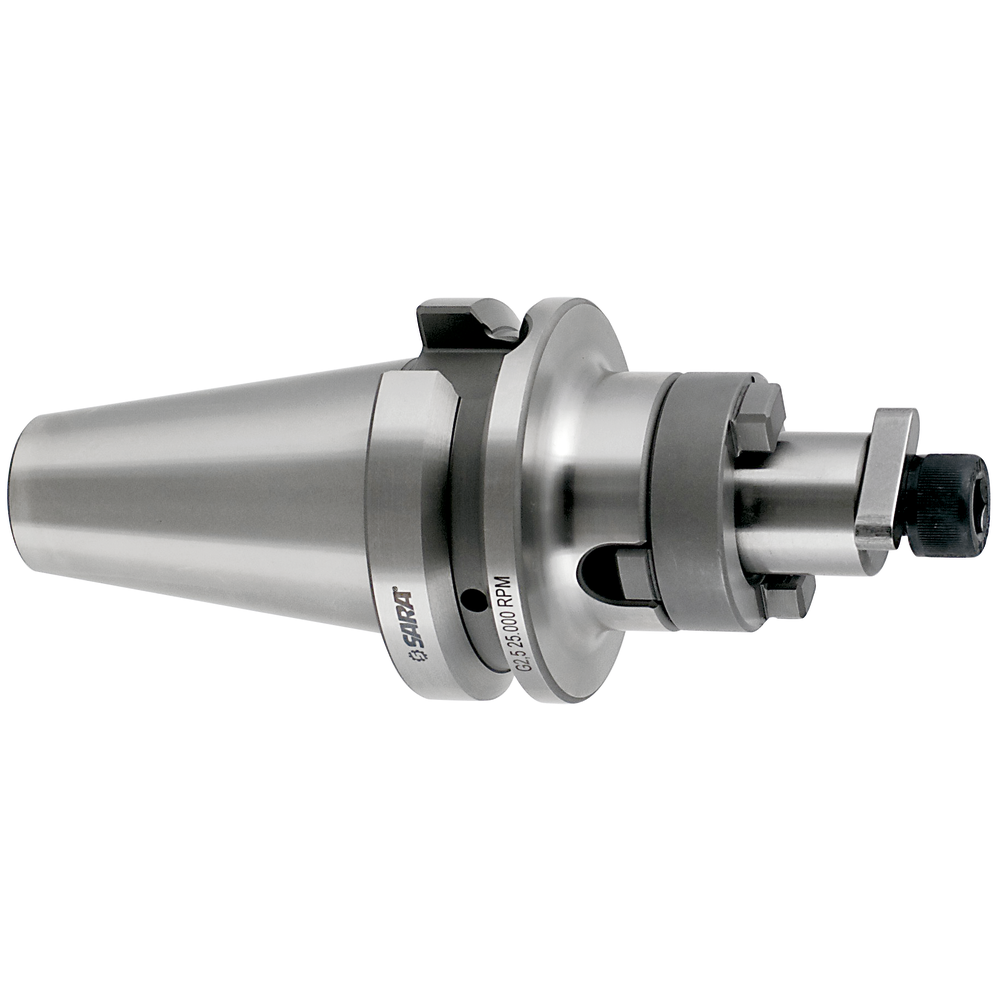

Kombi-Aufsteckfräsdorn MAS403AD BT30, 16mm A=45mm G2,5 25.000

Kombi-Aufsteckfräsdorn MAS403AD BT30, 16mm A=45mm G2,5 25.000
Kombi-Aufsteckfräsdorn MAS403AD BT30, 16mm A=45mm G2,5 25.000 Kombi-Aufsteckfräsdorn MAS403AD BT30, 16mm A=45mm G2,5 25.000
Price
59,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Combination shell-type milling cutter arbour
  • For milling cutters with longitudinal or transverse slots
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Delivery incl. fitting key, follower ring and tightening bolt without coolant bore
  • Additional shank designs and AD/B versions available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
Combination shell-type milling cutter arbour
  • For milling cutters with longitudinal or transverse slots
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Delivery incl. fitting key, follower ring and tightening bolt without coolant bore
  • Additional shank designs and AD/B versions available on request

DIN ISO 7388-2 / MAS BT JIS B 6339
Article no./ATORN no.
4349073116
Packaging unit
1
Catalogue page

Technical characteristics

A 45 mm
D 16 mm
D 32 mm
DIN DIN 6358
L2 17 mm
Shank BT 30
