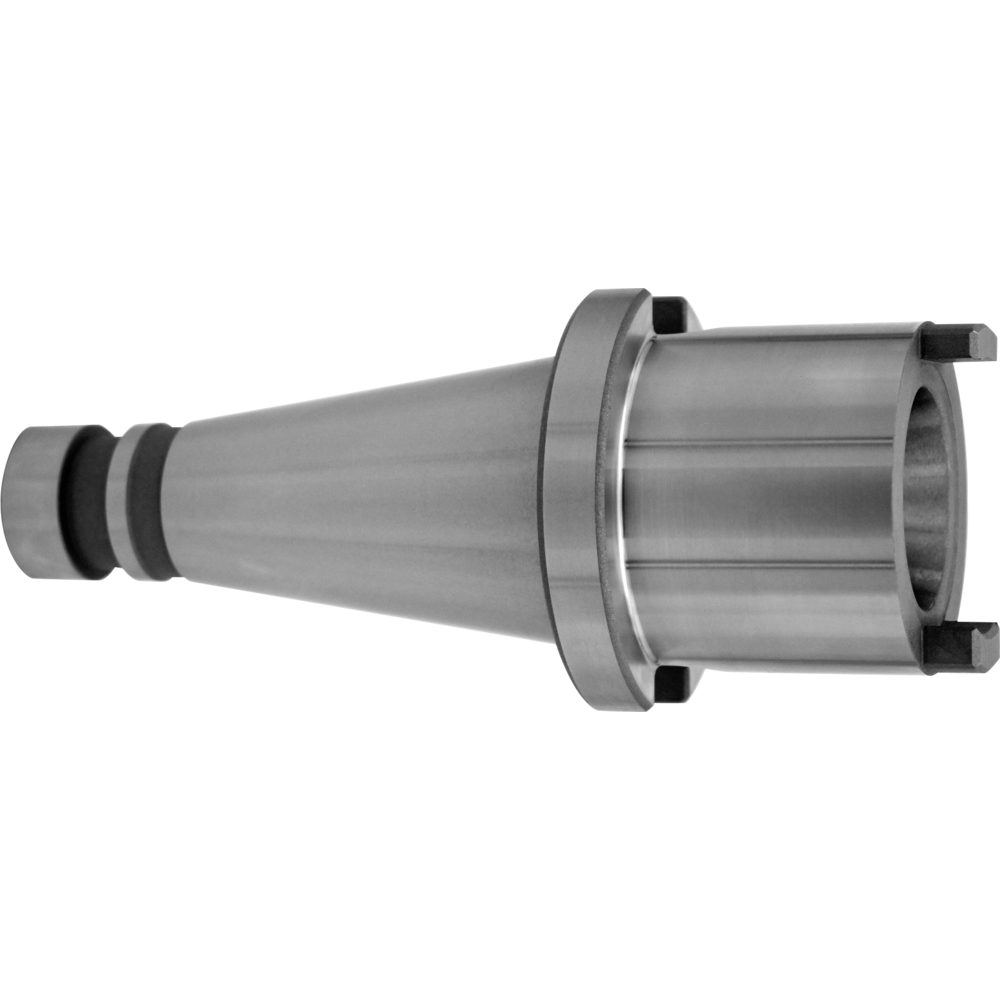

Adapter sleeves for steep-angle tapers

• For holding all steep-angle taper systems (DIN 2080, ISO7388-1 / DIN 69871, MAS BT, ANSI-CAT)
• Pre-balanced to G 2.5 / 25,000 rpm
• Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm²
• Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080, max. true running accuracy < 0.005 mm

DIN 2080
Adapter sleeves for steep-angle tapers

• For holding all steep-angle taper systems (DIN 2080, ISO7388-1 / DIN 69871, MAS BT, ANSI-CAT)
• Pre-balanced to G 2.5 / 25,000 rpm
• Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm²
• Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080, max. true running accuracy < 0.005 mm

DIN 2080
