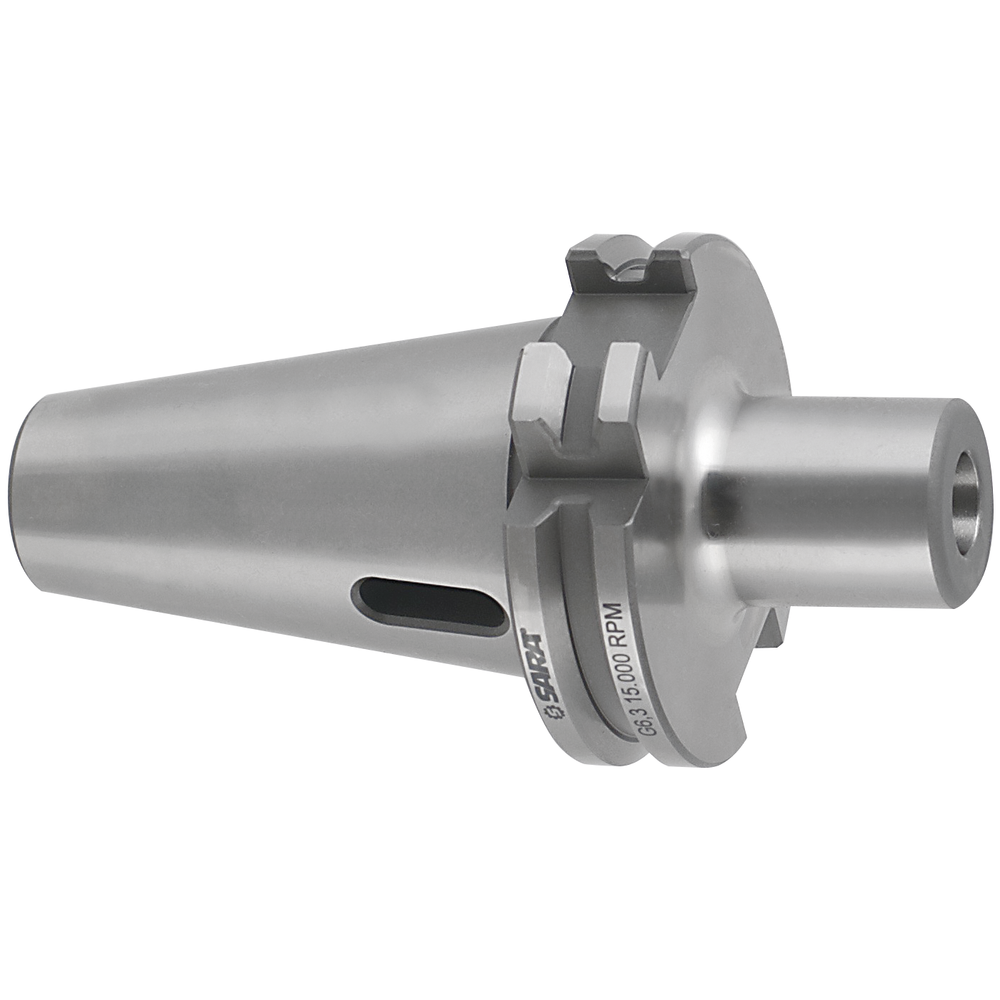

Adapter sleeves for Morse tapers with tangs

• Alloyed case-hardened steel, core tensile strength min. 950 N/mm²
• Pre-balanced to G 2.5 / 25,000 rpm
• Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
• Max. true running accuracy < 0.005 mm
• Additional versions available on request

DIN ISO 7388-1 / DIN 69871 AD

• Internal coolant supply

Adapter sleeves for Morse tapers with tangs

• Alloyed case-hardened steel, core tensile strength min. 950 N/mm²
• Pre-balanced to G 2.5 / 25,000 rpm
• Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
• Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
• Max. true running accuracy < 0.005 mm
• Additional versions available on request

DIN ISO 7388-1 / DIN 69871 AD

• Internal coolant supply
