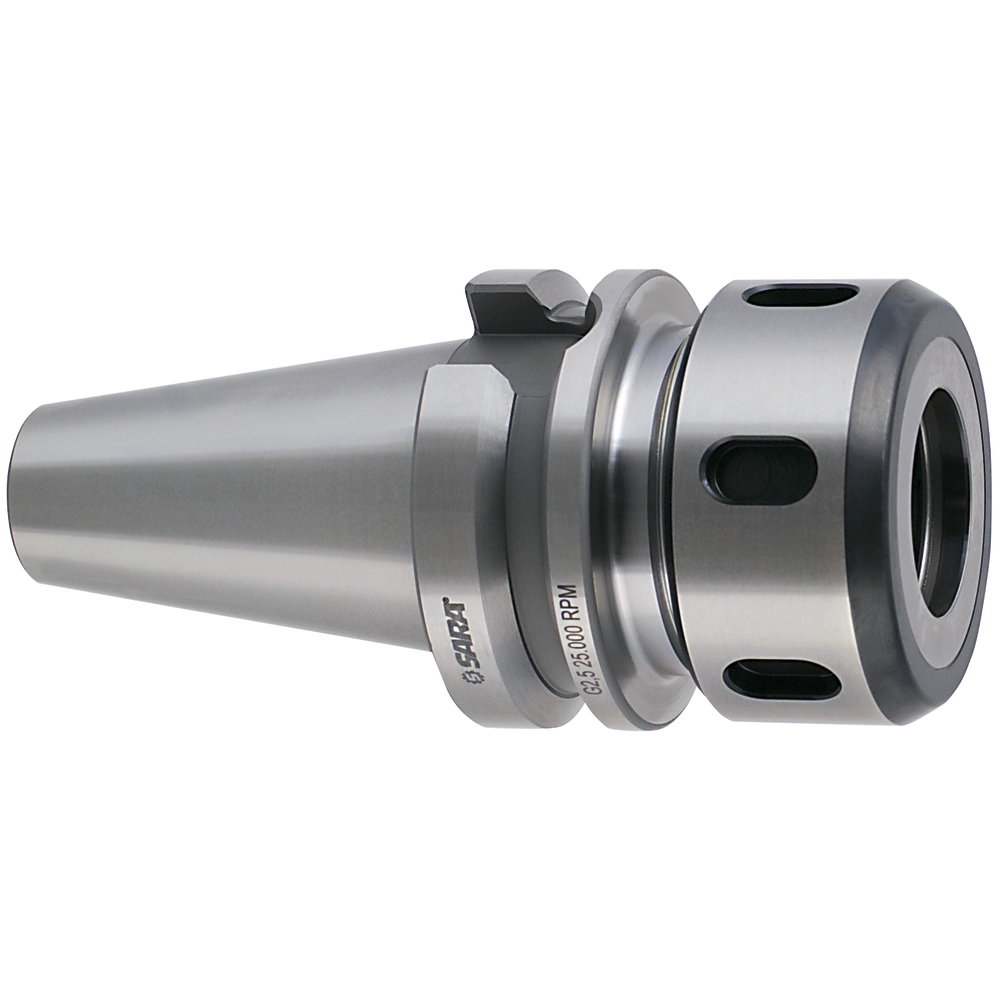

Spannzangenfutter OZ (DIN6388) MAS403AD BT30, 2-16mm A=60mm G2,5 25.000

Spannzangenfutter OZ (DIN6388) MAS403AD BT30, 2-16mm A=60mm G2,5 25.000
Spannzangenfutter OZ (DIN6388) MAS403AD BT30, 2-16mm A=60mm G2,5 25.000 Spannzangenfutter OZ (DIN6388) MAS403AD BT30, 2-16mm A=60mm G2,5 25.000
Price:
68,80 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
OZ collet chuck
  • For DIN 6388 collets
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080, max. true running accuracy < 0.005 mm
  • Supplied with clamping nut
  • Additional shank designs and AD/AF versions available on request
  • Suitable hook spanner under Article No. 701550....

DIN ISO 7388-2 / MAS BT JIS B 6339
  • Internal coolant supply

OZ collet chuck
  • For DIN 6388 collets
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm2
  • case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080, max. true running accuracy < 0.005 mm
  • Supplied with clamping nut
  • Additional shank designs and AD/AF versions available on request
  • Suitable hook spanner under Article No. 701550....

DIN ISO 7388-2 / MAS BT JIS B 6339
  • Internal coolant supply

Article no./ATORN no.
4315073016
Packaging unit
1
Catalogue page

Technical characteristics

A 60 mm
Collet type OZ 410E
DIN DIN 6391
Min./max. clamping width 2 - 16 mm
Outer diameter 43 mm
Taper type BT 30
